Installation [01/2017 - 05/2023]: Procedure

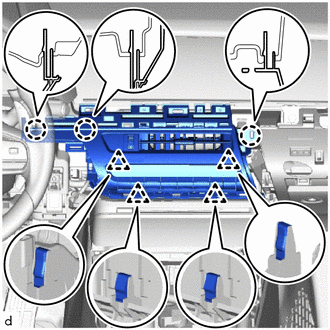

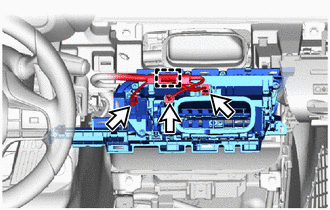

- INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY
- INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
Refer to PROCEDURE - Step 25 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 25 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 25 [04/2020 - 05/2023]
- INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 26 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 26 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 26 [04/2020 - 05/2023]
- INSTALL NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY
Refer to PROCEDURE - Step 27 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 27 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 27 [04/2020 - 05/2023]
- INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY
- Move the upper console panel sub-assembly to the installation position diagonally at a slightly slanted angle from the rear upper of the vehicle.

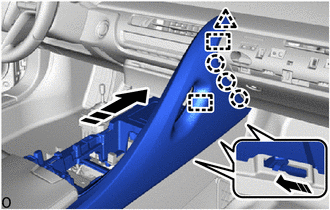

Place Hands Here Install in this Direction (1) Install in this Direction (2) NOTE:Hold the areas shown in the illustration, lift the upper console panel sub-assembly and while inserting a portion of the claw into the mating hole move it to the installation position.

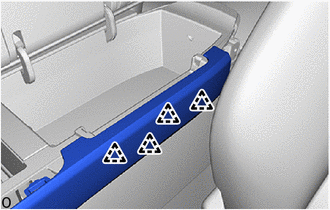

- Attach the claw.

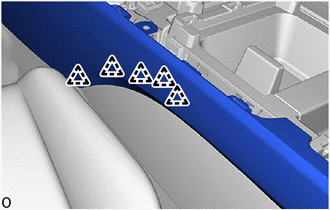

- Attach the claw.

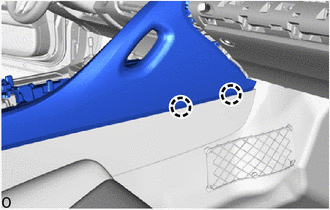

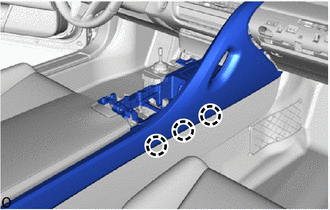

- Slide toward the front of the vehicle to insert the guide and attach the clip and claw.

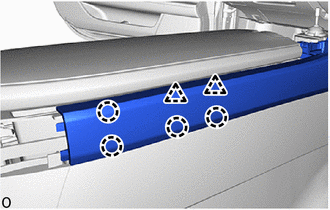

Install in this Direction - Fold the front seatback (RH side) forward and attach the clip and claw.
- Return the front seatback (RH side) to the original position and install the bolt.
- Install the upper console panel sub-assembly with the 2 bolts and 2 screws.
Bolt Screw
- Move the upper console panel sub-assembly to the installation position diagonally at a slightly slanted angle from the rear upper of the vehicle.
- INSTALL BOX PANEL SUB-ASSEMBLY
- INSTALL NO. 1 GLOVE COMPARTMENT PANEL
Refer to PROCEDURE - Step 29 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 29 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 29 [04/2020 - 05/2023]
- INSTALL UPPER CONSOLE BOX
Refer to PROCEDURE - Step 6
- INSTALL SHIFTING HOLE COVER ASSEMBLY
Refer to PROCEDURE - Step 9
- INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
Refer to PROCEDURE - Step 1
- INSTALL RADIO REMOTE TUNING SWITCH ASSEMBLY
Refer to INSTALLATION [01/2017 - 05/2023]
- INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 30 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 30 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 30 [04/2020 - 05/2023]
- INSTALL FRONT DOOR NO. 2 OPENING TRIM COVER LH
Refer to PROCEDURE - Step 31 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 31 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 31 [04/2020 - 05/2023]
- INSTALL FRONT DOOR OPENING TRIM COVER LH
Refer to PROCEDURE - Step 33 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 33 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 33 [04/2020 - 05/2023]
- INSTALL FRONT DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 35 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 35 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 35 [04/2020 - 05/2023]
