Reassembly [01/2017 - 01/2021]: Procedure

  1. INSTALL NO. 6 ANTENNA CORD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  2. INSTALL SATELLITE RADIO ANTENNA ASSEMBLY

    Refer to PROCEDURE - Step 14

  3. INSTALL NO. 4 LUGGAGE ROOM WIRE

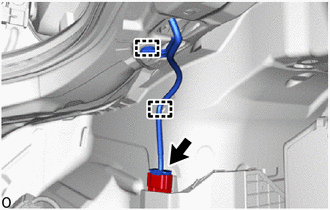

    1. Pass the No. 4 luggage room wire through the wire harness grommet and insert it into the inside of the luggage room.
      GTY794261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the clamps and connect the connector.
    3. GTY824201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

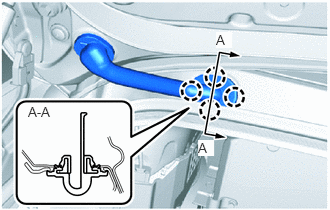

      Attach the claws to install the grommet.

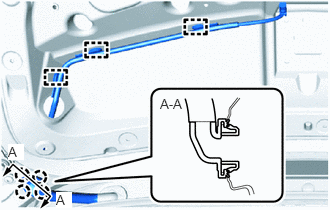

    4. Attach the clamps and claws to install the No. 4 luggage room wire.
      GTY797973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL INNER LUGGAGE COMPARTMENT TRIM COVER LH

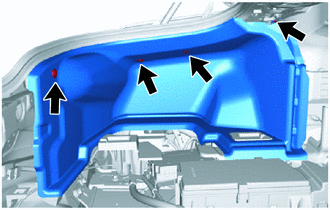

    1. Install the inner luggage compartment trim cover LH with the 4 clips.
      GTY809255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL INNER LUGGAGE COMPARTMENT TRIM COVER RH

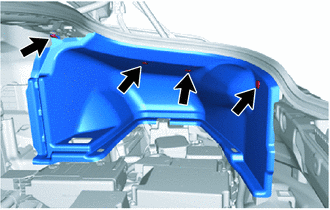

    1. Install the inner luggage compartment trim cover RH with the 4 clips.
      GTY834747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

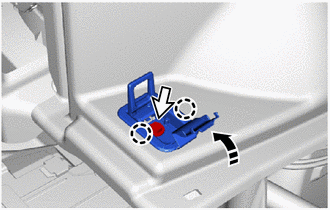

    2. Install the rope hook assembly with the bolt.
      GTY805890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Close in this Direction
      Bolt

      Torque: 7.0 N.m (71 kgf/cm, 62 in.lbf)

    3. Close the rope hook assembly cap as shown in the illustration to attach the claws.
  6. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER

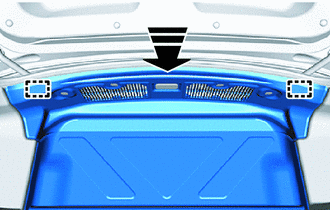

    1. Insert the guides as shown in the illustration.
      GTY796666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

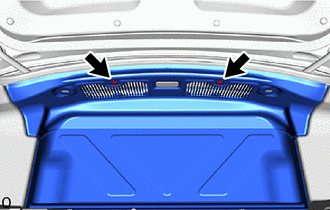

    2. Install the front luggage compartment trim cover with the 2 clips.
      GTY809278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

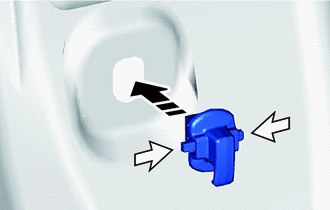

    3. Install the rope hook as shown as the illustration.

      HINT:

      Use the same procedure for the opposite side.

      GTY797442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
      Push

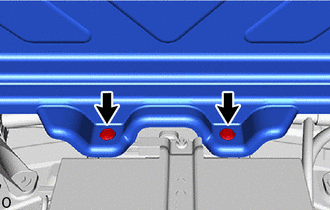

    4. Install the 2 clips.
      GTY809280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  8. INSTALL LUGGAGE COMPARTMENT TRIM BOX
    1. Install the luggage compartment trim box.
  9. INSTALL REAR FLOOR FINISH PLATE

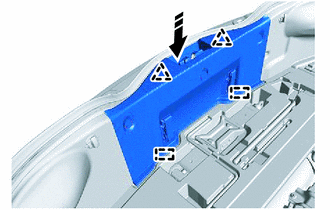

    1. Insert the guides as shown in the illustration.
      GTY791467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Attach the clips.

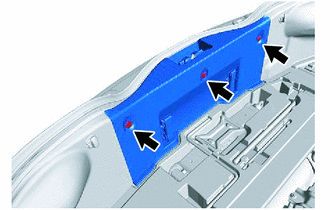

    3. Install the rear floor finish plate with the 3 clips.
      GTY786811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL SIDE TRIM BOX

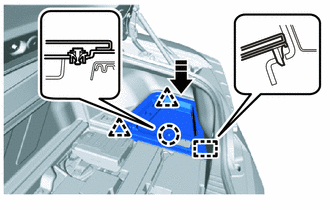

    1. Insert the guide as shown in the illustration.
      GTY809600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Attach the clips and claw to install the side trim box.

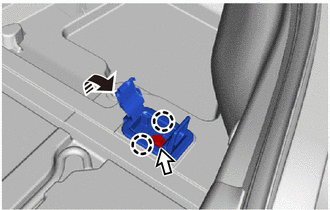

    3. Install the rope hook assembly with the bolt.
      GTY786192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Close in this Direction
      Bolt

      Torque: 7.0 N.m (71 kgf/cm, 62 in.lbf)

    4. Close the rope hook assembly cap as shown in the illustration to attach the claws.
  11. INSTALL LUGGAGE COMPARTMENT TRIM COVER LH

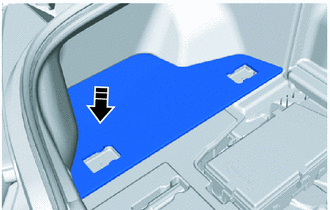

    1. Install the luggage compartment trim cover LH.
      GTY789168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

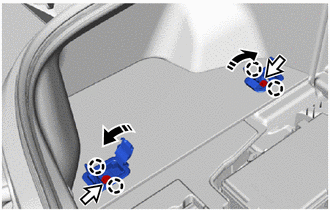

    2. Install the 2 rope hook assemblies with the 2 bolts.

      Torque: 7.0 N.m (71 kgf/cm, 62 in.lbf)

      GTY811377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Close in this Direction
      Bolt
    3. Close the rope hook assembly cap as shown in the illustration to attach the claws.
  12. INSTALL LUGGAGE COMPARTMENT TRIM COVER RH

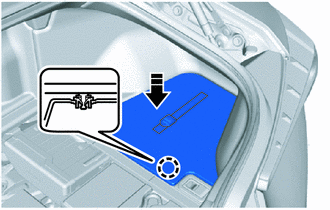

    1. Attach the claw to install the luggage compartment trim cover RH.
      GTY836140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  13. INSTALL NO. 2 DECK BOARD

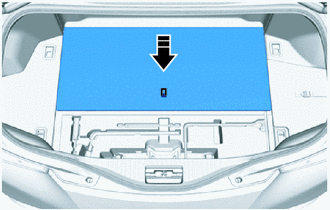

    1. Install the No. 2 deck board.
      GTY806565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  14. INSTALL NO. 1 DECK BOARD

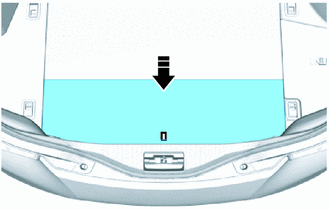

    1. Install the No. 1 deck board.
      GTY823314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  15. INSTALL LUGGAGE COMPARTMENT DOOR STRIKER ASSEMBLY

    See step  1

  16. INSTALL LUGGAGE DOOR LOCK PROTECTOR

    See step  2

  17. INSTALL LUGGAGE COMPARTMENT DOOR HOUSING

    HINT:

    When installing the luggage compartment door housing, heat the luggage compartment door panel and luggage compartment door housing using a heat light.

    Standard

    Item Temperature
    Luggage Compartment Door Panel 40 to 60°C (104 to 140°F)
    Luggage Compartment Door Housing 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    1. Clean the luggage compartment door panel surface.
      1. Using a heat light, heat the luggage compartment door housing surface.
      2. Remove the double-sided tape from the luggage compartment door housing.
      3. Wipe off any tape adhesive residue with cleaner.
    2. Remove the peeling paper from the face of a new luggage compartment door housing.

      HINT:

      After removing the peeling paper, keep the exposed adhesive free from foreign matter.

    3. Attach the double-sided tape to install the luggage compartment door housing.
      GTY791203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Double-sided Tape

      HINT:

      Press the luggage compartment door housing firmly to install it.

  18. INSTALL TELEVISION CAMERA ASSEMBLY

    Refer to PROCEDURE - Step 1

  19. INSTALL ACTIVE REAR WING (w/ Active Rear Wing)

    Refer to INSTALLATION [01/2017 - ]

  20. INSTALL OUTER LOWER LUGGAGE COMPARTMENT DOOR PANEL

    Refer to PROCEDURE - Step 1

  21. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM BRACKET

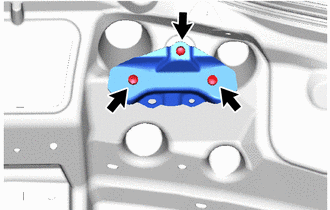

    1. Install the No. 1 luggage compartment trim bracket with the 3 screws.
      GTY786824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. INSTALL LUGGAGE COMPARTMENT DOOR COVER

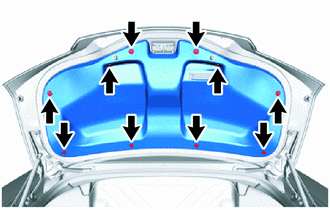

    1. Install the luggage compartment door cover with the 10 clips.
      GTY794303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. INSTALL LUGGAGE COMPARTMENT DOOR ASSIST GRIP

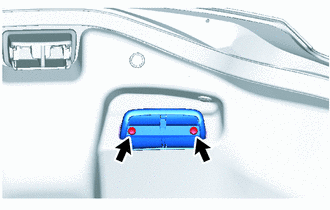

    1. Install the luggage compartment door assist grip with the 2 screws.
      GTY794304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Close the cover.
  24. ADJUST REAR TELEVISION CAMERA ASSEMBLY OPTICAL AXIS

    Refer to CALIBRATION [01/2017 - 05/2023]

  25. INITIALIZE ACTIVE REAR WING SYSTEM

    Refer to INITIALIZATION [01/2017 - ]

  26. CHECK ACTIVE REAR WING SYSTEM

    Refer to OPERATION CHECK [01/2017 - ]
