Installation [01/2017 - ]: Procedure

  1. INSTALL WIRING HARNESS GROMMET SUB-ASSEMBLY
    1. Install the grommet to No. 6 antenna cord sub-assembly the tape.
  2. INSTALL NO. 6 ANTENNA CORD SUB-ASSEMBLY

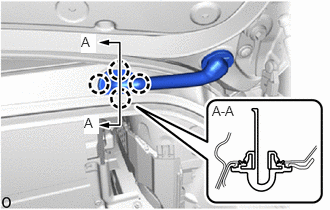

    1. Insert the No. 6 antenna cord sub-assembly with grommet and connect the connector.
      GTY777764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

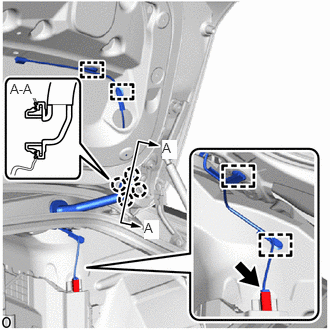

    2. Attach the clamps to install the No. 6 antenna cord sub-assembly.
    3. Attach the claws to install the grommet.
    4. Attach the claws to install the grommet.
      GTY828925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Connect the connector.
  3. INSTALL INNER LUGGAGE COMPARTMENT TRIM COVER LH

    Refer to PROCEDURE - Step 4 [01/2017 - 01/2021] , or refer to PROCEDURE - Step 4 [01/2021 - 05/2023] , or refer to PROCEDURE - Step 4 [05/2023 - ]

  4. INSTALL INNER LUGGAGE COMPARTMENT TRIM COVER RH

    Refer to PROCEDURE - Step 5 [01/2017 - 01/2021] , or refer to PROCEDURE - Step 5 [01/2021 - 05/2023] , or refer to PROCEDURE - Step 5 [05/2023 - ]

  5. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 6 [01/2017 - 01/2021] , or refer to PROCEDURE - Step 6 [01/2021 - 05/2023] , or refer to PROCEDURE - Step 6 [05/2023 - ]

  6. INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 7 [01/2017 - 01/2021] , or refer to PROCEDURE - Step 7 [01/2021 - 05/2023] , or refer to PROCEDURE - Step 7 [05/2023 - ]

  7. INSTALL LUGGAGE COMPARTMENT TRIM BOX

    Refer to PROCEDURE - Step 8 [01/2017 - 01/2021] , or refer to PROCEDURE - Step 8 [01/2021 - 05/2023] , or refer to PROCEDURE - Step 8 [05/2023 - ]

  8. INSTALL REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 9 [01/2017 - 01/2021] , or refer to PROCEDURE - Step 9 [01/2021 - 05/2023] , or refer to PROCEDURE - Step 9 [05/2023 - ]

  9. INSTALL SIDE TRIM BOX

    Refer to PROCEDURE - Step 10 [01/2017 - 01/2021] , or refer to PROCEDURE - Step 10 [01/2021 - 05/2023] , or refer to PROCEDURE - Step 10 [05/2023 - ]

  10. INSTALL LUGGAGE COMPARTMENT TRIM COVER LH

    Refer to PROCEDURE - Step 11 [01/2017 - 01/2021] , or refer to PROCEDURE - Step 11 [01/2021 - 05/2023] , or refer to PROCEDURE - Step 11 [05/2023 - ]

  11. INSTALL LUGGAGE COMPARTMENT TRIM COVER RH

    Refer to PROCEDURE - Step 12 [01/2017 - 01/2021] , or refer to PROCEDURE - Step 12 [01/2021 - 05/2023] , or refer to PROCEDURE - Step 12 [05/2023 - ]

  12. INSTALL NO. 2 DECK BOARD

    Refer to PROCEDURE - Step 13 [01/2017 - 01/2021] , or refer to PROCEDURE - Step 13 [01/2021 - 05/2023] , or refer to PROCEDURE - Step 13 [05/2023 - ]

  13. INSTALL NO. 1 DECK BOARD

    Refer to PROCEDURE - Step 14 [01/2017 - 01/2021] , or refer to PROCEDURE - Step 14 [01/2021 - 05/2023] , or refer to PROCEDURE - Step 14 [05/2023 - ]

  14. INSTALL SATELLITE RADIO ANTENNA ASSEMBLY

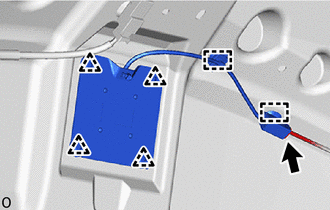

    1. Attach the clips to install the satellite radio antenna assembly.
      GTY836627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the clamp and connect the connector.
  15. INSTALL LUGGAGE COMPARTMENT DOOR COVER

    Refer to PROCEDURE - Step 22 [01/2017 - 01/2021] , or refer to PROCEDURE - Step 23 [01/2021 - 05/2023] , or refer to PROCEDURE - Step 22 [05/2023 - ]

  16. INSTALL LUGGAGE COMPARTMENT DOOR ASSIST GRIP

    Refer to PROCEDURE - Step 23 [01/2017 - 01/2021] , or refer to PROCEDURE - Step 24 [01/2021 - 05/2023] , or refer to PROCEDURE - Step 23 [05/2023 - ]

  17. INSTALL OUTER LOWER LUGGAGE COMPARTMENT DOOR PANEL

    Refer to PROCEDURE - Step 1
