Removal [01/2017 - 05/2023]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT DOOR ASSIST GRIP

    Refer to PROCEDURE - Step 1 [01/2017 - 01/2021] , or refer to PROCEDURE - Step 1 [01/2021 - 05/2023]

  2. REMOVE LUGGAGE COMPARTMENT DOOR COVER

    Refer to PROCEDURE - Step 2 [01/2017 - 01/2021] , or refer to PROCEDURE - Step 2 [01/2021 - 05/2023]

  3. REMOVE ACTIVE REAR WING (w/ Active Rear Wing)

    Refer to REMOVAL [01/2017 - ]

  4. REMOVE TELEVISION CAMERA ASSEMBLY

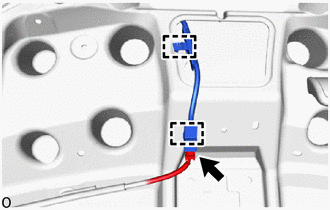

    1. Disconnect the connector.
      GTY833787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the wire harness clamps.

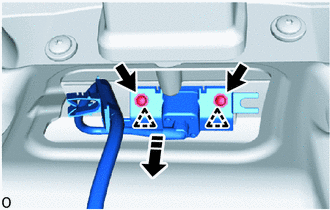

    3. Remove the 2 screws.
      GTY826596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    4. Detach the clips and remove the television camera assembly.
