Removal [01/2017 - 05/2023]: Procedure

PRECAUTION
NOTE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

Refer to PRECAUTION [01/2017 - 05/2023]
CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM
Refer to PROCEDURE - Step 2 [01/2017 - 09/2018] , or refer to PROCEDURE - Step 2 [09/2018 - 05/2023]
REMOVE NO. 2 DECK BOARD
Refer to PROCEDURE - Step 11 [01/2017 - 01/2021] , or refer to PROCEDURE - Step 12 [01/2021 - 05/2023]

DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

Refer to PROCEDURE - Step 2

WARNING:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Wait at least 90 seconds after disconnecting the cable from the negative(-) auxiliary battery terminal to disable the SRS system.
Refer to PRECAUTION [01/2017 - 04/2020] , or refer to PRECAUTION [04/2020 - 05/2023]
If the airbag deploys for any reason, it may cause a serious accident.

NOTE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [01/2017 - 04/2020] , or refer to INITIALIZATION [04/2020 - 05/2023]

REMOVE COMBINATION METER ASSEMBLY
Refer to REMOVAL [01/2017 - ]
REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY
Refer to REMOVAL [01/2017 - 05/2023]
REMOVE LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY
Refer to REMOVAL [01/2017 - 05/2023]
REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
Refer to PROCEDURE - Step 27 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 27 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 27 [04/2020 - 05/2023]
REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
Refer to PROCEDURE - Step 31 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 31 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 31 [04/2020 - 05/2023]

REMOVE MULTI-DISPLAY

Remove the 4 bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Hold area 1 as shown in the illustration and detach claw A while moving it towards the rear of the vehicle.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Place Hands Here

Remove in this Direction

NOTE:

If excessive force is applied to the multi-display it may become damaged.

HINT:

The top area of the instrument panel (a) can be easily detached by lifting it up slightly from the bottom as shown in the illustration.

Insert your hand from the area where the register is installed, hold area 2 as shown in the illustration and detach claw B while moving it towards the rear of the vehicle.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Place Hands Here

Remove in this Direction

NOTE:

If excessive force is applied to the multi-display it may become damaged.

HINT:

The top area of the instrument panel (b) can be easily detached by lifting it up slightly from the bottom as shown in the illustration.

Insert your hand through the gap between the instrument panel, hold area 3 as shown in the illustration and detach claw C while moving it towards the rear of the vehicle.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Place Hands Here

Remove in this Direction

NOTE:

If excessive force is applied to the multi-display it may become damaged.

HINT:

The top area of the instrument panel (c) can be easily detached by lifting it up slightly from the bottom as shown in the illustration.

Hold area 4 as shown in the illustration and detach claw D from the instrument panel while pulling it towards the rear of the vehicle.

Place Hands Here

Remove in this Direction

NOTE:

If excessive force is applied to the multi-display it may become damaged.

HINT:

The top area of the instrument panel (d) can be easily detached by lifting it up slightly from the bottom as shown in the illustration.

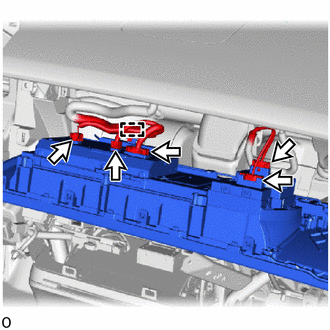

Detach the clamp and disconnect the 5 connectors.
