Removal [01/2017 - 05/2023]: Procedure

PRECAUTION
NOTE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

Refer to PRECAUTION [01/2017 - 05/2023]
CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM
Refer to PROCEDURE - Step 2 [01/2017 - 09/2018] , or refer to PROCEDURE - Step 2 [09/2018 - 05/2023]
REMOVE NO. 2 DECK BOARD
Refer to PROCEDURE - Step 11 [01/2017 - 01/2021] , or refer to PROCEDURE - Step 12 [01/2021 - 05/2023]

DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

WARNING:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Wait at least 90 seconds after disconnecting the cable from the negative(-) auxiliary battery terminal to disable the SRS system.
Refer to PRECAUTION [01/2017 - 04/2020] , or refer to PRECAUTION [04/2020 - 05/2023]
If the airbag deploys for any reason, it may cause a serious accident.

NOTE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

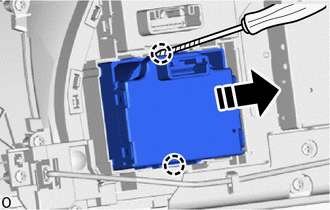

REMOVE CLOCK ASSEMBLY

	Remove in this Direction
	Protective Tape

Using a thin-bladed screwdriver, detach the claws and remove the clock assembly.

HINT:

Tape the thin-screwdriver tip before use.
