Removal [03/2017 - 04/2020]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read precaution thoroughly before servicing.

    Refer to PRECAUTION [03/2017 - 04/2020]

    GTY824211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [03/2017 - 05/2023]

  2. REMOVE FRONT SEAT ASSEMBLY LH

    Refer to REMOVAL [03/2017 - 05/2023]

  3. REMOVE POSITION CONTROL ECU ASSEMBLY

    Refer to PROCEDURE - Step 1

  4. REMOVE FRONT SEAT CUSHION SHIELD LH

    Refer to PROCEDURE - Step 6

  5. REMOVE FRONT SEAT INNER CUSHION SHIELD LH

    Refer to PROCEDURE - Step 13

  6. REMOVE LIMIT SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 16

  7. REMOVE SEPARATE TYPE FRONT SEATBACK ASSEMBLY

    Refer to PROCEDURE - Step 15

  8. REMOVE SEAT ADJUSTER COVER CAP LH

    Refer to PROCEDURE - Step 16

  9. REMOVE RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 17

  10. REMOVE FRONT SEATBACK SUB-ASSEMBLY LH (for Standard Seat Type)

    Refer to PROCEDURE - Step 19

  11. REMOVE FRONT SEAT HEADREST SUPPORT (for Standard Seat Type)

    Refer to PROCEDURE - Step 20

  12. REMOVE FRONT SEAT HEADREST SUPPORT (for Sports Seat Type)

    Refer to PROCEDURE - Step 21

  13. REMOVE FRONT UPPER SEATBACK COVER SUB-ASSEMBLY LH (for Standard Seat Type)

    Refer to PROCEDURE - Step 22

  14. REMOVE SEPARATE TYPE FRONT SEATBACK COVER WITH PAD (for Standard Seat Type)

    Refer to PROCEDURE - Step 23

  15. REMOVE FRONT SEATBACK PAD WITH COVER LH (for Sports Seat Type)

    Refer to PROCEDURE - Step 26

  16. REMOVE SEATBACK CLIMATE CONTROL BLOWER LH (w/ Seat Heater System)

    Refer to PROCEDURE - Step 29

  17. REMOVE LUMBAR SUPPORT ADJUSTER ASSEMBLY LH

    Refer to PROCEDURE - Step 30

  18. REMOVE FRONT SEATBACK SPRING SUB-ASSEMBLY RH (for Front Passenger Seat, w/o Lumbar Support)

    Refer to PROCEDURE - Step 31

  19. REMOVE FRONT SEATBACK HOOK

    Refer to PROCEDURE - Step 32

  20. REMOVE FRONT SEATBACK SUPPORT LH

    Refer to PROCEDURE - Step 37

  21. REMOVE FRONT SEAT AIRBAG ASSEMBLY LH
    WARNING:
    • When storing the front seat airbag assembly LH, keep the airbag deployment side facing upward.
    • If the airbag deploys for any reason, it may cause a serious accident.
    GTY829740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Deployment Side

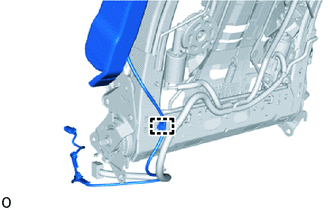

    1. Detach the clamp and disconnect the wire harness of the front seat airbag assembly LH.
      GTY785385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

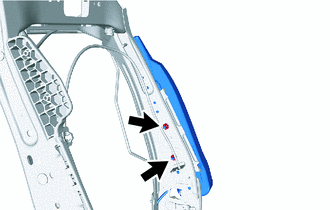

    2. Remove the 2 nuts and front seat airbag assembly LH.
      WARNING:

      Do not reuse the nut.

      NOTE:

      If the seat frame assembly is deformed or damaged, replace it with a new one.

      GTY829523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Remove the front seat side support bracket LH together with the airbag.

  22. REMOVE FRONT SEAT SIDE SUPPORT BRACKET LH

    Refer to PROCEDURE - Step 39
