Installation [03/2017 - ]: Procedure

  1. INSTALL REAR DISC BRAKE ANTI-SQUEAL SHIM KIT
    NOTE:
    • When replacing the rear disc brake pads with new ones, make sure to replace the rear disc brake anti-squeal shim kit at the same time.
    • Do not apply lubricants to the lining surface of the brake pad.
    • Install the anti-squeal shims in the correct position and direction.

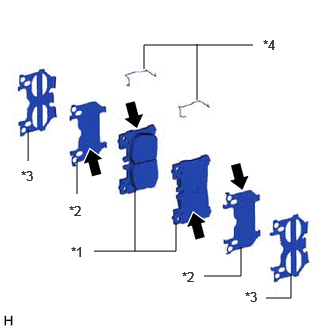

    1. Apply brake shim grease (Part No. 08887-80409) to the rear disc brake pads and No. 1 anti-squeal shims at the positions shown in the illustration.
      GTY833726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Rear Disc Brake Pad
      *2 No. 1 Anti-Squeal Shim
      *3 No. 2 Anti-Squeal Shim
      *4 Inner Anti-Rattle Spring
      Brake Shim Grease (Part No. 08887-80409)
      NOTE:
      • Use the grease supplied with the anti-squeal shim kit or brake shim grease (Part No. 08887-80409) or equivalent.
      • Do not apply grease between the No. 1 and No. 2 anti-squeal shims.
    2. Install the inner anti-rattle spring to each rear disc brake pad.
    3. Install the No. 1 anti-squeal shims and No. 2 anti-squeal shims to each rear disc brake pad.
  2. INSTALL REAR DISC BRAKE PAD
    WARNING:

    Be careful not to get pinched by the disc brake cylinder assembly or other parts when installing the rear disc brake pads.

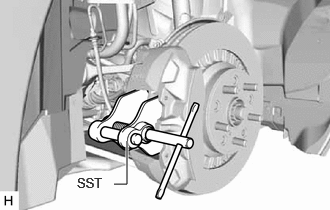

    1. Using SST, push in the rear disc brake piston.
      • SST: 09719-77020
      NOTE:
      • Make sure the brake fluid does not overflow from the reservoir.
      • Do not forcibly push in the rear disc brake piston.
      GTY782088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for RH side:
      GTY806953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install the pad wear indicator wire assembly RH to the rear disc brake pad (inner) with a new pad wear indicator retainer.
        NOTE:

        When replacing the rear disc brake pads with new ones, make sure to replace the pad wear indicator wire assembly and pad wear indicator retainer at the same time.

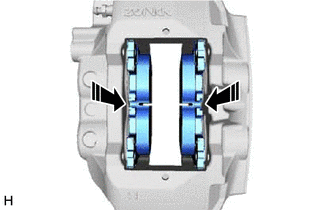

    3. Install the 2 rear disc brake pads to the rear disc brake cylinder assembly LH.
      GTY807019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      The rear disc brake pad with the pad wear indicator wire assembly must be installed to the inside position.

    4. Install the anti-squeal spring between the 2 rear disc brake pads.
      GTY820185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

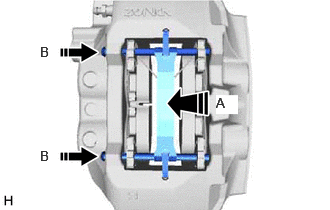

    5. Install the No. 1 anti-rattle spring from the disc brake cylinder LH.

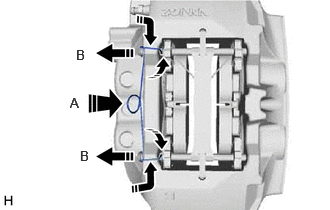

    6. While pressing the area labeled A, install the 2 hole pins.
    7. While pressing the area labeled A, slightly pull out the hole pin labeled B from the rear disc brake cylinder assembly LH, and install the pin hold clip.
      GTY838510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

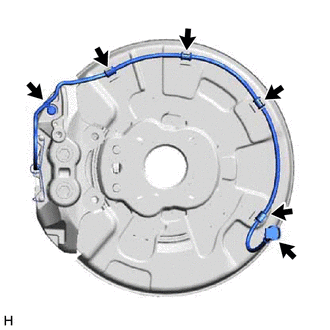

    8. GTY806938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      for RH side:

      1. Attach the pad wear indicator wire assembly RH to the 4 clamps.
      2. Connect the bleeder plug cap to the rear disc brake bleeder plug.
      3. Connect the pad wear indicator wire connector to the rear speed sensor RH.
  3. CONNECT BRAKE BOOSTER PUMP CONNECTOR

    Refer to PROCEDURE - Step 6

  4. INSPECT BRAKE FLUID LEVEL IN RESERVOIR

    Refer to ON-VEHICLE INSPECTION [03/2017 - ]

  5. INSTALL FRONT WHEEL

    Refer to INSTALLATION [03/2017 - 05/2023] , or refer to INSTALLATION [05/2023 - ]
