Disassembly [03/2017 - ]: Procedure

  1. REMOVE COAT HOOK
    1. Detach the claws and remove the coat hook.
      GTY824168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the opposite side.

  2. REMOVE ACTIVE NOISE CONTROL MICROPHONE

    Refer to PROCEDURE - Step 5 [03/2017 - 05/2023] , or refer to REMOVAL [05/2023 - ]

  3. REMOVE TELEPHONE MICROPHONE ASSEMBLY

    Refer to PROCEDURE - Step 5 [03/2017 - 05/2023] , or refer to REMOVAL [05/2023 - ]

  4. REMOVE ROOF HEADLINING HOLDER COVER
    1. Detach the claws and remove the roof headlining holder cover.
      GTY824267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the opposite side.

  5. REMOVE ROOF SILENCER PAD (for Carbon Roof)
    1. Remove the roof silencer pad.

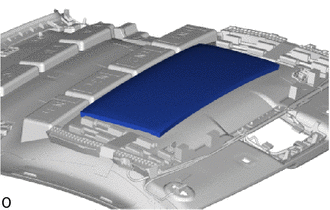

      GTY824266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE NO. 1 ROOF WIRE
    1. for Glass Roof:
      1. Remove the tape from the roof headlining assembly.

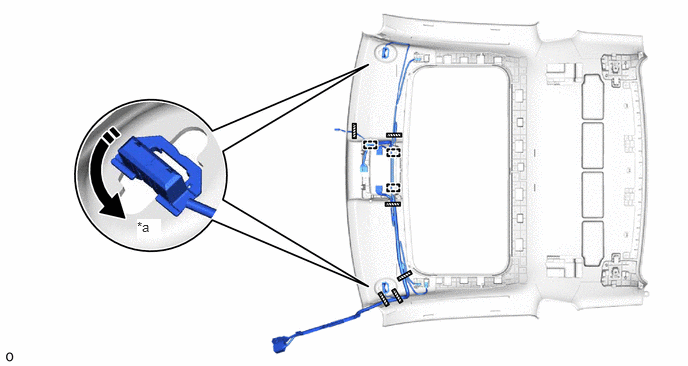

        GTY784722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a 90° - -
        Tape - -
      2. Turn the visor connectors approximately 90° counterclockwise and disconnect from the roof headlining assembly.
      3. Detach the clamps and remove the No. 1 roof wire from the roof headlining assembly.
      4. Remove the butyl tape.
    2. for Carbon Roof:
      1. Remove the tape from the roof headlining assembly.

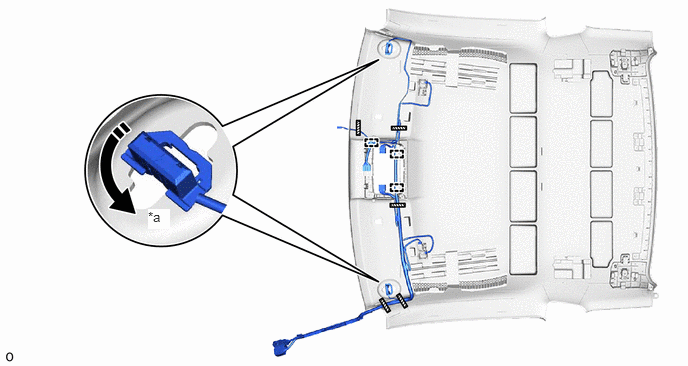

        GTY810188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a 90° - -
        Tape - -
      2. Turn the visor connectors approximately 90° counterclockwise and disconnect from the roof headlining assembly.
      3. Detach the clamps and remove the No. 1 roof wire from the roof headlining assembly.
      4. Remove the butyl tape.
