Reassembly [03/2017 - 06/2019]: Procedure

  1. INSTALL REAR BUMPER REINFORCEMENT SUB-ASSEMBLY

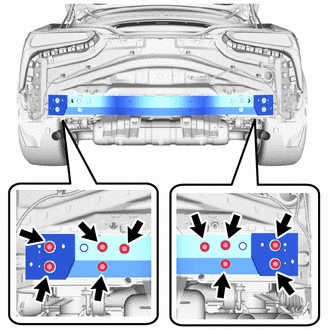

    1. Install the rear bumper reinforcement sub-assembly with the 10 bolts.
      GTY838052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 20 N.m (204 kgf/cm, 15 ft.lbf)

  2. INSTALL REAR BUMPER ENERGY ABSORBER
    1. Attach the guides and claws to install the rear bumper energy absorber.

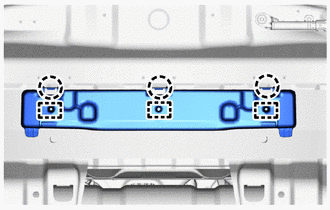

      GTY824212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL REAR BUMPER BAR REINFORCEMENT LH

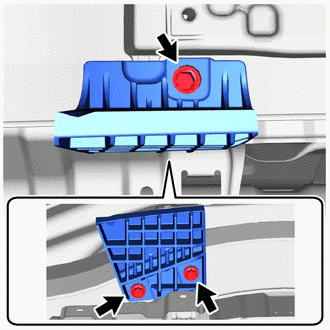

    1. Install the rear bumper bar reinforcement LH with the 3 bolts.
      GTY824213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 23 N.m (235 kgf/cm, 17 ft.lbf)

  4. INSTALL REAR BUMPER BAR REINFORCEMENT RH

    HINT:

    Use the same procedure described for the LH side.

  5. INSTALL REAR BUMPER ARM REINFORCEMENT LH

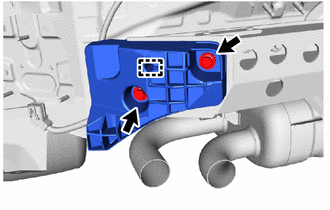

    1. Attach the guide.
      GTY824184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the rear bumper arm reinforcement LH with 2 bolts.
  6. INSTALL REAR BUMPER ARM REINFORCEMENT RH

    HINT:

    Use the same procedure described for the LH side.

  7. INSTALL REAR BUMPER NO. 1 SIDE SUPPORT LH

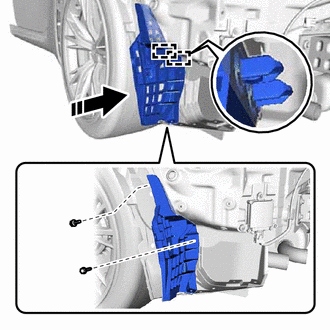

    1. Attach the guides and install the rear bumper No. 1 side support LH with the 2 screws.
      GTY781480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

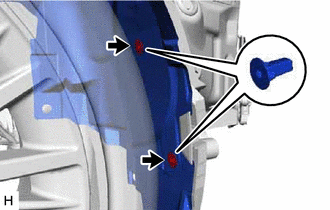

    2. Install the 2 grommets.
      GTY787870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL REAR BUMPER NO. 1 SIDE SUPPORT RH

    HINT:

    Use the same procedure described for the LH side.

  9. INSTALL REAR BUMPER NO. 4 SIDE SUPPORT LH

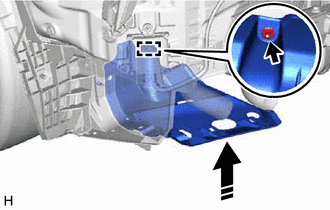

    1. Temporarily install the rear bumper No. 4 side support LH with the grommet.
      GTY802831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the rear bumper No. 4 side support LH with the 2 clips.

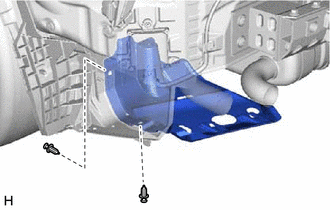

      GTY787797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL REAR BUMPER NO. 4 SIDE SUPPORT RH

    HINT:

    Use the same procedure described for the LH side.

  11. INSTALL REAR BUMPER NO. 2 SIDE SUPPORT LH

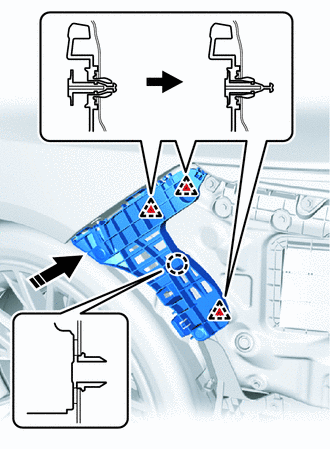

    GTY830253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Install in this Direction
    1. Attach the claw.
    2. Attach the clips to install the rear bumper No. 2 side support LH.
  12. INSTALL REAR BUMPER NO. 2 SIDE SUPPORT RH

    HINT:

    Use the same procedure described for the LH side.

  13. INSTALL REAR BUMPER NO. 2 PAD

    HINT:

    When installing the rear bumper No. 2 pad, heat the rear bumper corner extension LH using a heat light.

    Standard

    Item Temperature
    Rear Bumper Corner Extension LH 20 to 30°C (68 to 86°F)
    NOTE:

    Do not heat the rear bumper corner extension LH excessively.

    1. When reusing the rear bumper corner extension LH:
      1. Using a heat light, heat the rear bumper corner extension LH installation surface.
      2. Remove the double-sided tape from the rear bumper corner extension LH.
      3. Wipe off any tape adhesive residue with cleaner.
    2. Using a heat light, heat the rear bumper corner extension LH.
      WARNING:
      • Do not touch the heat light or the heated portions of the components.
      • Touching the heat light could result in burns.
      • Touching the heated portions of the components and remaining in contact for a long time could result in burns.
      GTY656706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Heated Portions
      *b Heat Light
    3. Remove the peeling paper from a new rear bumper No. 2 pad.

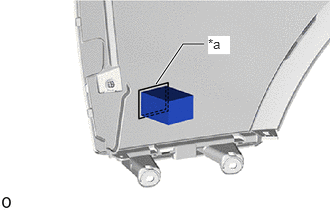

    4. GTY811073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Mark-off Line

      Align the rear bumper No. 2 pad with the mark-off line of the rear bumper corner extension LH.

      HINT:

      • Press the rear bumper No. 2 pad firmly to install it.
      • Use the same procedure for the RH side and LH side.
  14. INSTALL REAR BUMPER NO. 3 PAD

    HINT:

    When installing the rear bumper No. 3 pad, heat the rear bumper corner extension LH using a heat light.

    Standard

    Item Temperature
    Rear Bumper Corner Extension LH 20 to 30°C (68 to 86°F)
    NOTE:

    Do not heat the rear bumper corner extension LH excessively.

    1. When reusing the rear bumper corner extension LH:
      1. Using a heat light, heat the rear bumper corner extension LH installation surface.
      2. Remove the double-sided tape from the rear bumper corner extension LH.
      3. Wipe off any tape adhesive residue with cleaner.
    2. Using a heat light, heat the rear bumper corner extension LH.
      WARNING:
      • Do not touch the heat light or the heated portions of the components.
      • Touching the heat light could result in burns.
      • Touching the heated portions of the components and remaining in contact for a long time could result in burns.
      GTY656706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Heated Portions
      *b Heat Light
    3. Remove the peeling paper from a new rear bumper No. 3 pad.

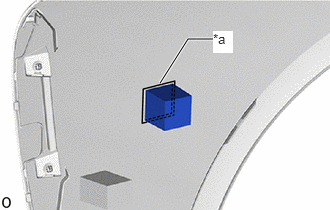

    4. GTY804791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Mark-off Line

      Align the rear bumper No. 3 pad with the mark-off line of the rear bumper corner extension LH.

      HINT:

      • Press the rear bumper No. 3 pad firmly to install it.
      • Use the same procedure for the RH side and LH side.
  15. INSTALL REAR BUMPER PAD INSERT

    HINT:

    When installing the rear bumper pad insert, heat the rear bumper corner extension LH using a heat light.

    Standard

    Item Temperature
    Rear Bumper Corner Extension LH 20 to 30°C (68 to 86°F)
    NOTE:

    Do not heat the rear bumper corner extension LH excessively.

    1. When reusing the rear bumper corner extension LH:
      1. Using a heat light, heat the rear bumper corner extension LH installation surface.
      2. Remove the double-sided tape from the rear bumper corner extension LH.
      3. Wipe off any tape adhesive residue with cleaner.
    2. Using a heat light, heat the rear bumper corner extension LH.
      WARNING:
      • Do not touch the heat light or the heated portions of the components.
      • Touching the heat light could result in burns.
      • Touching the heated portions of the components and remaining in contact for a long time could result in burns.
      GTY656706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Heated Portions
      *b Heat Light
    3. Remove the peeling paper from a new rear bumper pad insert.

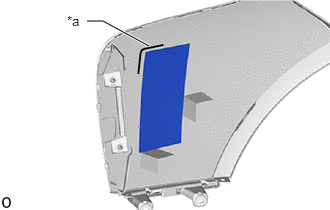

    4. GTY796051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Mark-off Line

      Align the rear bumper pad insert with the mark-off line of the rear bumper corner extension LH.

      HINT:

      • Press the rear bumper pad insert firmly to install it.
      • Use the same procedure for the RH side and LH side.
  16. INSTALL REAR BUMPER CORNER EXTENSION LH

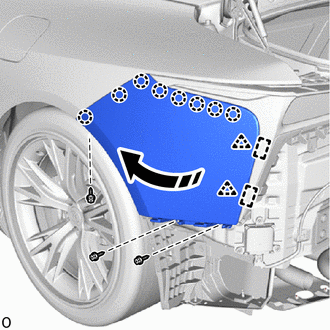

    GTY795866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Turn Direction
    1. Attach the guides, turn the rear bumper corner extension LH with the guides as a starting point and install the clips.
    2. Attach the claws.
    3. Install the rear bumper corner extension LH with the 3 screws.
  17. INSTALL REAR BUMPER CORNER EXTENSION RH

    HINT:

    Use the same procedure described for the LH side.

  18. INSTALL REAR BUMPER EXTENSION
    1. Attach the claws.
      GTY830230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the rear bumper extension with the 2 screws.
  19. INSTALL REAR BUMPER EXTENSION LH

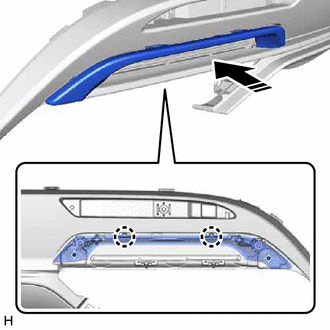

    GTY827210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Install in this Direction
    1. Attach the claws to install the rear bumper extension LH.
    2. Install the 2 screws.
      GTY788611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL REAR BUMPER EXTENSION RH

    HINT:

    Use the same procedure described for the LH side.

  21. INSTALL REFLEX REFLECTOR ASSEMBLY LH

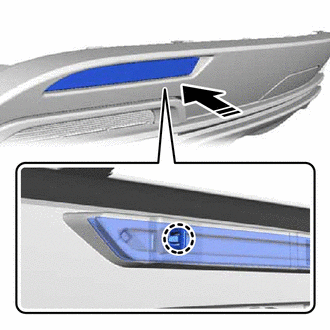

    1. Attach the claw.
      GTY777184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

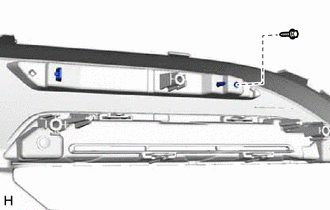

    2. Install the reflex reflector assembly LH with the screw.
      GTY787868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. INSTALL REFLEX REFLECTOR ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  23. INSTALL REAR BUMPER PAD

    HINT:

    When installing the rear bumper pad, heat the rear bumper cover using a heat light.

    Standard

    Item Temperature
    Rear Bumper Cover 20 to 30°C (68 to 86°F)
    NOTE:

    Do not heat the rear bumper cover excessively.

    1. When reusing the rear bumper cover:
      1. Using a heat light, heat the rear bumper cover installation surface.
      2. Remove the double-sided tape from the rear bumper cover.
      3. Wipe off any tape adhesive residue with cleaner.
    2. Using a heat light, heat the rear bumper cover.
      WARNING:
      • Do not touch the heat light or the heated portions of the components.
      • Touching the heat light could result in burns.
      • Touching the heated portions of the components and remaining in contact for a long time could result in burns.
      GTY656706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Heated Portions
      *b Heat Light
    3. Remove the peeling paper from a new rear bumper pad.

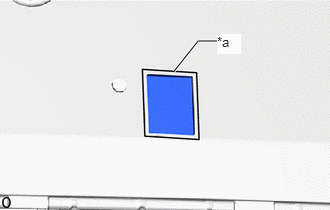

    4. GTY826605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Mark-off Line

      Align the rear bumper pad with the mark-off line of the rear bumper cover.

      HINT:

      • Press the rear bumper pad firmly to install it.
      • Use the same procedure for the RH side and LH side.
  24. INSTALL REAR BUMPER NO. 1 PAD

    HINT:

    When installing the rear bumper No. 1 pad, heat the rear bumper cover using a heat light.

    Standard

    Item Temperature
    Rear Bumper Cover 20 to 30°C (68 to 86°F)
    NOTE:

    Do not heat the rear bumper cover excessively.

    1. When reusing the rear bumper cover:
      1. Using a heat light, heat the rear bumper cover installation surface.
      2. Remove the double-sided tape from the rear bumper cover.
      3. Wipe off any tape adhesive residue with cleaner.
    2. Using a heat light, heat the rear bumper cover.
      WARNING:
      • Do not touch the heat light or the heated portions of the components.
      • Touching the heat light could result in burns.
      • Touching the heated portions of the components and remaining in contact for a long time could result in burns.
      GTY656706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Heated Portions
      *b Heat Light
    3. Remove the peeling paper from a new rear bumper No. 1 pad.

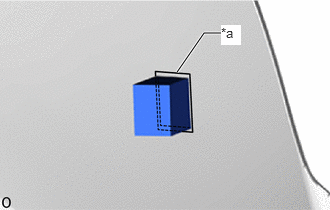

    4. GTY781482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Mark-off Line

      Align the rear bumper No. 1 pad with the mark-off line of the rear bumper cover.

      HINT:

      • Press the rear bumper No. 1 pad firmly to install it.
      • Use the same procedure for the RH side and LH side.
  25. INSTALL REAR BUMPER CENTER PAD

    HINT:

    When installing the rear bumper center pad, heat the rear bumper cover using a heat light.

    Standard

    Item Temperature
    Rear Bumper Cover 20 to 30°C (68 to 86°F)
    NOTE:

    Do not heat the rear bumper cover excessively.

    1. When reusing the rear bumper cover:
      1. Using a heat light, heat the rear bumper cover installation surface.
      2. Remove the double-sided tape from the rear bumper cover.
      3. Wipe off any tape adhesive residue with cleaner.
    2. Using a heat light, heat the rear bumper cover.
      WARNING:
      • Do not touch the heat light or the heated portions of the components.
      • Touching the heat light could result in burns.
      • Touching the heated portions of the components and remaining in contact for a long time could result in burns.
      GTY656706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Heated Portions
      *b Heat Light
    3. Remove the peeling paper from a new rear bumper center pad.

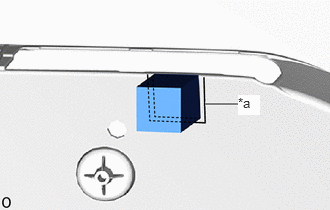

    4. GTY820624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Mark-off Line

      Align the rear bumper center pad with the mark-off line of the rear bumper cover.

      HINT:

      • Press the rear bumper center pad firmly to install it.
      • Use the same procedure for the RH side and LH side.
  26. INSTALL REAR BUMPER CENTER EXTENSION SUB-ASSEMBLY
    1. Attach the guides and claws as shown in the illustration.

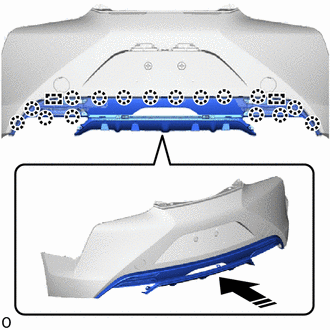

      GTY790526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the 2 clips.

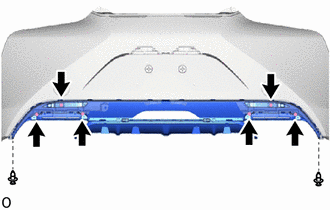

      GTY780289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the rear bumper center extension sub-assembly with the 6 screws.
  27. INSTALL REAR BUMPER EXTENSION SUB-ASSEMBLY LH
    1. Temporarily install the rear bumper extension sub-assembly LH with the 4 grommets.

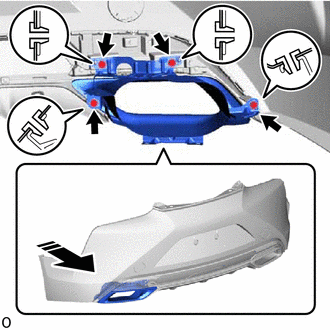

      GTY793831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the rear bumper extension sub-assembly LH with the 4 screws.

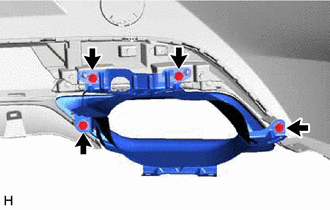

      GTY780071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. INSTALL REAR BUMPER EXTENSION SUB-ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  29. INSTALL REAR BUMPER PIECE LH

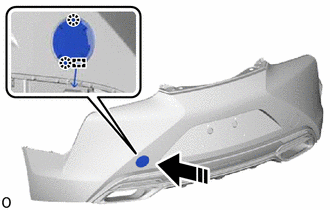

    1. Attach the anti-drop hook.
      GTY800707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Attach the claws to install the rear bumper piece LH.
  30. INSTALL REAR BUMPER PIECE RH

    HINT:

    Use the same procedure described for the LH side.

  31. REPAIR INSTRUCTION
    1. Clean the rear bumper cover surface.
      1. using a heat light, heat the rear bumper cover surface.
        NOTE:
        • Do not touch the heat light and heated parts.
        • Touching the heat light may result in burns.
        • Touching heated parts for a long time may result in burns.
      2. wipe off any tape adhesive with cleaner.
    2. Installation temperature.
      1. When the ambient temperature is below 15°C (59°F), perform the installation procedure after warming the rear bumper cover surface (installation surface of the rear bumper cover) and tape to between 20 and 30°C (68 and 86°F) using a heat light.

        When the ambient temperature is higher than 35°C (95°F), cool the rear bumper cover surface (installation surface of the rear bumper cover) and tape to between 20 and 30°C (68 and 86°F) prior to installation.

        HINT:

        • The most appropriate temperature for installing the tape is 25°C (77°F).
        • When the temperature is low, the tape turns stiff and falls off easily. When the temperature is high, the tape loses elasticity.
    3. Before installation.
      1. Make sure any dirt on and around the rear bumper cover surface where the tape will be installed (installation surface of the rear bumper cover) is removed, and that the surface is smooth. If the surface is rough or dirt remains when pressing the tape onto the surface, air will be trapped under the tape and result in a poor appearance.

        HINT:

        Spray water on the shop floor to settle any dust.

    4. Key points for handling the tape.
      1. The tape bends and rolls up easily. Store the tape between flat pieces of cardboard or other similar objects and keep it dry and level.
        NOTE:

        Do not bend the tape or leave it in a place with a high temperature.

    5. Key points for the installation of the tape (how to use a squeegee and the installation procedure for a flat surface).
      NOTE:
      • Position the tape with a high level of accuracy to achieve a neat finish and to avoid peeling.
      • The tape cannot be reused because it deforms and will not fit after removal.

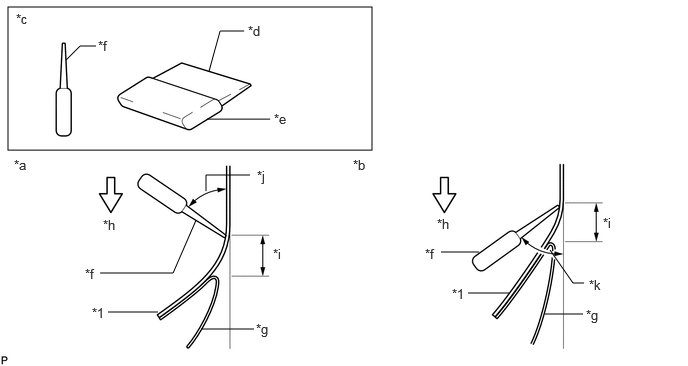

      1. To avoid air bubbles, slightly raise the part of the tape that is going to be applied so that its adhesive surface does not touch the rear bumper cover while applying the tape. Tilt the squeegee 40 to 50° (for pressing forward) or 30 to 45° (for pulling) from the rear bumper cover surface and press with a force of 20 to 30 N (2 to 3 kgf. 1.45 to 6.71 lbf.) while moving the squeegee at a constant slow speed of 30 to 70 mm (1.18 to 2.76 in.) per second.
        GTY948889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *1 No. 1 Moulding Tape - -
        *a Pressing *b Pulling
        *c Sectional View *d Non-padded Side
        *e Padded Side *f Squeegee
        *g Release Paper *h 30 to 70 mm/sec. (1.18 to 2.76 in/sec.)
        *i 10 to 20 mm (0.394 to 0.787 in.) *j 40 to 50° (for pressing forward)
        *k 30 to 45° (for pulling) - -
        NOTE:

        Be sure to observe the specified pressing speed, force and angle of the squeegee to avoid wrinkles and air bubbles.

        HINT:

        • Either angle of the squeegee (for pressing forward or for pulling) is acceptable.
        • Be sure to apply the tape while removing the release paper 10 to 20 mm (0.39 to 0.79 in.) from the edge of the squeegee.
    6. Key points for the installation of the tape (how to use a squeegee and the installation procedure for a hemming surface).
      GTY948908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a First
      *b Second
      *c Third
      *d Squeegee
      1. If it is difficult to press the tape, press it in several steps as shown in the illustration. Use your fingers or the padded surface of a squeegee to slowly apply the tape to the hem of the vehicle, especially for a small hem.

        HINT:

        When applying tape to the backside of a hem, remove the release paper and use your fingers or the padded surface of a squeegee.

    7. Key points for the installation of the tape (how to use a squeegee and the installation procedure for corners).
      1. Remove the release paper and apply the tape carefully with your fingers.
      2. Before applying the tape to each corner, heat the tape using a heat light and gradually apply it to avoid wrinkles in the tape and achieve a neat finish.
    8. Check after installation.
      1. After completing the application, check if the tape is applied neatly. If the tape is not applied neatly, apply new tape.
        NOTE:

        Do not reuse the tape.

  32. INSTALL NO. 1 MOULDING TAPE

    HINT:

    When installing the No. 1 moulding tape, heat the rear bumper cover using a heat light.

    Standard

    Item Temperature
    Rear Bumper Cover 20 to 30°C (68 to 86°F)
    NOTE:

    Do not heat the rear bumper cover excessively.

    1. When reusing the rear bumper cover:
      1. Using a heat light, heat the rear bumper cover installation surface.
      2. Remove the double-sided tape from the rear bumper cover.
      3. Wipe off any tape adhesive residue with cleaner.
    2. Using a heat light, heat the rear bumper cover.
      WARNING:
      • Do not touch the heat light or the heated portions of the components.
      • Touching the heat light could result in burns.
      • Touching the heated portions of the components and remaining in contact for a long time could result in burns.
      GTY656706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Heated Portions
      *b Heat Light
    3. Remove the peeling paper from a new No. 1 moulding tape.
    4. GTY951329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

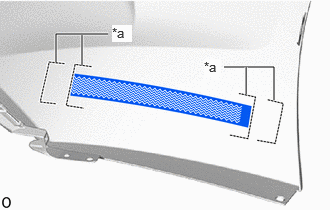

      *a Mark-off Line

      Align the No. 1 moulding tape with the mark-off line of the rear bumper cover.

      HINT:

      • Press the No. 1 moulding tape firmly to install it.
      • Use the same procedure for the RH side and LH side.
    5. Remove the application tape.
  33. INSTALL LICENSE PLATE LIGHT SUB-ASSEMBLY

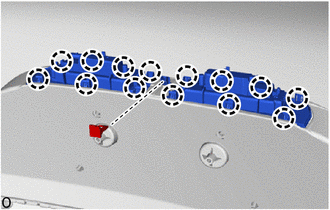

    1. Attach the claws to install the license plate light sub-assembly.
      GTY828412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the retainer.
  34. INSTALL BACK-UP LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  35. INSTALL ULTRASONIC SENSOR CLIP

    HINT:

    • Perform this step only when necessary.
    • Use the same procedure for each ultrasonic sensor clip.
    1. Clean the rear bumper cover surface.
      1. Remove any remaining double-sided tape from the rear bumper cover.
      2. Wipe off any tape adhesive residue with cleaner.
    2. Using a brush or felt, apply primer or equivalent to the ultrasonic sensor clip installation area.
      GTY779392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Primer
      NOTE:
      • Use a clean brush or felt.
      • If primer adheres, it may leave faint stains, so when using a liquid type primer, protect the painted areas with tape.
      • Do not touch the rear bumper cover until the primer has dried.

      Suggested Drying Time

      10 minutes or more (at 23°C (73°F))

    3. Peel off the release paper from the ultrasonic sensor clip.

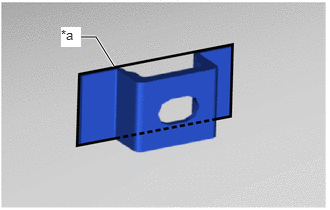

    4. Align the ultrasonic sensor clip with the mark on the rear bumper cover and install it as shown in the illustration.
      NOTE:

      The double-sided tape of a ultrasonic sensor clip will deteriorate if it is detached. Make sure to replace the ultrasonic sensor clip with a new one when reattachment is necessary.

      HINT:

      • Align the connector with the protrusion of the mark and connect it.
      • Press the ultrasonic sensor clip with a force of 30 N (3.0 kgf) for 3 seconds and install the ultrasonic sensor clip firmly so that there is no clearance between the ultrasonic sensor clip and rear bumper cover.
      GTY829358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Mark-off Line
  36. INSTALL REAR CORNER ULTRASONIC SENSOR RETAINER (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 2

  37. INSTALL REAR CORNER ULTRASONIC SENSOR (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 3

  38. INSTALL REAR CENTER ULTRASONIC SENSOR RETAINER (w/ Intuitive Parking Assist System)

    HINT:

    Use the same procedure described for the rear corner ultrasonic sensor retainer.

  39. INSTALL REAR CENTER ULTRASONIC SENSOR (w/ Intuitive Parking Assist System)

    HINT:

    Use the same procedure described for the rear center ultrasonic sensor.

  40. INSTALL NO. 3 LUGGAGE ROOM WIRE
    1. w/ Intuitive Parking Assist System:

      Refer to PROCEDURE - Step 6

    2. w/o Intuitive Parking Assist System:

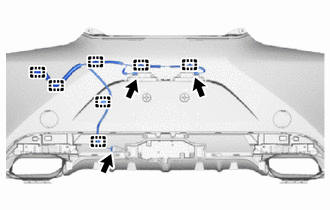

      Attach the clamps and connect the 3 connectors to install the No. 3 luggage room wire.

      GTY838055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
scientia non olet · About LEMON Manuals
