Installation [03/2017 - ]: Procedure

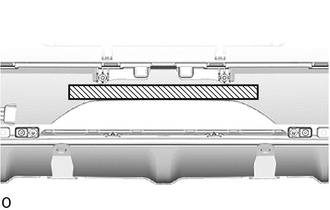

1. Clean the application area of the back-up light assembly shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Area to Clean

2. If reusing the back-up light assembly:
   1. Cut the 2 pieces of double-sided tape according to the dimensions shown in the illustration.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Dimension

      Area	Dimension
      A	1.2 mm (0.047 in.)
      B	6.8 to 7.2 mm (0.268 to 0.283 in.)
      C	33.8 to 34.2 mm (1.331 to 1.346 in.)

   2. Clean the installation surfaces shown in the illustration and apply the 2 pieces of double-sided tape.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Area to Clean

   3. Remove the 2 peeling tapes from the 2 double-sided tapes.
3. If installing a new back-up light assembly:

   Remove the 2 peeling tapes from a new back-up light assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

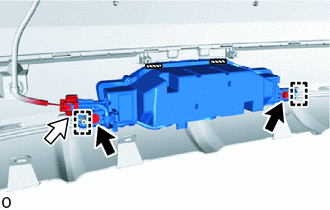

4. Attach the guide to set the back-up light assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Screw
   	Connector
   	Double-sided Tape Application Area

5. Install the 2 screws.
6. Apply pressure to the 2 pieces of double-sided tape.
7. Connect the connector.
