Removal [03/2017 - 05/2023]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notice before proceeding with work.

    Refer to PRECAUTION [03/2017 - 05/2023]

  2. REMOVE FRONT SEAT ASSEMBLY LH

    Refer to REMOVAL [03/2017 - 05/2023]

  3. REMOVE FRONT SEAT CUSHION SHIELD LH

    Refer to PROCEDURE - Step 6 [03/2017 - 04/2020] , or refer to PROCEDURE - Step 6 [04/2020 - ]

  4. REMOVE FRONT INNER SEAT CUSHION SHIELD LH

    Refer to PROCEDURE - Step 13 [03/2017 - 04/2020] , or refer to PROCEDURE - Step 13 [04/2020 - ]

  5. REMOVE LH SEAT FRONT OUTER SEATBACK EDGE PROTECTOR

    See step  4

  6. REMOVE SEPARATE TYPE FRONT SEATBACK ASSEMBLY

    Refer to PROCEDURE - Step 15 [03/2017 - 04/2020] , or refer to PROCEDURE - Step 15 [04/2020 - ]

  7. REMOVE SEAT ADJUSTER COVER CAP LH

    Refer to PROCEDURE - Step 16 [03/2017 - 04/2020] , or refer to PROCEDURE - Step 16 [04/2020 - ]

  8. REMOVE RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 16 [03/2017 - 04/2020] , or refer to PROCEDURE - Step 16 [04/2020 - ]

  9. REMOVE FRONT SEATBACK SUB-ASSEMBLY LH (FRONT SEATBACK HEATER) (for Standard Seat Type)

    HINT:

    The front seatback heater(center) cannot be removed as it is connected to the front seatback sub-assembly LH.

    1. Detach the hooks.
      GTY825362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Open the fasteners and fold back the separate type front seatback cover.
      GTY826565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Open in this Direction
    3. Detach the wire harness clamp and disconnect the connector.
      GTY820599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Wire Harness Clamp
      *b Hook
      Remove in this Direction
    4. Pass the wire harness of the front seatback sub-assembly LH(front seatback heater) through the hole on the separate type front seatback cover.
    5. Detach the hooks.
    6. Detach the hooks.
      GTY825363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Detach the fastening tape.
      GTY777991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Fastening Tape
    8. Pass the hooks through the hole on the separate type front seatback cover.
      GTY829976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hook
      *b Hole
      Remove in this Direction
    9. Fold back the front upper seatback cover sub-assembly LH and remove the 2 bolts.
      GTY825359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    10. Fold back the front upper seatback cover sub-assembly LH and remove the 2 bolts.
      GTY825358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    11. Fold back the front upper seatback cover sub-assembly LH and remove the bolt.
      GTY825357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    12. Insert your hands at the positions shown in the illustration and pull in the removal direction to detach the guides and remove the front seatback sub-assembly LH(front seatback heater).
      GTY816377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction
  10. REMOVE FRONT SEAT HEADREST SUPPORT (for Standard Seat Type)

    Refer to PROCEDURE - Step 20 [03/2017 - 04/2020] , or refer to PROCEDURE - Step 20 [04/2020 - ]

  11. REMOVE FRONT SEAT HEADREST SUPPORT (for Sports Seat Type)

    Refer to PROCEDURE - Step 21 [03/2017 - 04/2020] , or refer to PROCEDURE - Step 21 [04/2020 - ]

  12. REMOVE FRONT UPPER SEATBACK COVER SUB-ASSEMBLY LH (for Standard Seat Type)

    Refer to PROCEDURE - Step 22 [03/2017 - 04/2020] , or refer to PROCEDURE - Step 22 [04/2020 - ]

  13. REMOVE SEPARATE TYPE FRONT SEATBACK COVER WITH PAD (for Standard Seat Type)

    Refer to PROCEDURE - Step 23 [03/2017 - 04/2020] , or refer to PROCEDURE - Step 23 [04/2020 - ]

  14. REMOVE SEPARATE TYPE FRONT SEATBACK COVER (FRONT SEATBACK HEATER) (for Standard Seat Type)

    HINT:

    The front seatback heater(side) cannot be removed as it is connected to the separate type front seatback cover.

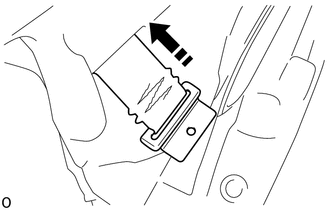

    1. Pass the bracket of the separate type front seatback cover(front seatback heater) through the hole on the separate type front seatback pad.
      GTY814313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Remove the 9 hog rings and separate type front seatback cover(front seatback heater) from the separate type front seatback pad.
      GTY775760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE FRONT SEATBACK PAD WITH COVER LH (FRONT SEATBACK HEATER) (for Sports Seat Type)

    HINT:

    The front seatback heater cannot be removed as it is connected to the front seatback pad with cover LH.

    1. Detach the hooks.
      GTY825351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull out the fasteners from the pockets.
      GTY799133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Fastener
      *b Pocket
      Open in this Direction
    3. Open the fasteners and fold back the cover.
    4. Remove the nut and bracket.
      GTY806098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Bracket
    5. Detach the wire harness clamp.
    6. Lift up the front seatback pad with cover LH (front seatback heater) in the removal direction shown in the illustration to remove it.
      GTY780981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
