Removal [07/2020 - 05/2023]: Procedure

  1. DISCONNECT BRAKE BOOSTER PUMP CONNECTOR

    Refer to PROCEDURE - Step 6

  2. REMOVE FRONT WHEEL

    Refer to REMOVAL [07/2020 - 05/2023]

  3. DRAIN BRAKE FLUID
    NOTE:

    If brake fluid leaks onto any painted surface, immediately wash it off.

  4. REMOVE FRONT PAD WEAR INDICATOR WIRE ASSEMBLY RH (for RH Side)

    Refer to PROCEDURE - Step 3

  5. DISCONNECT FRONT FLEXIBLE HOSE
    1. Remove the union bolt and gasket, and disconnect the front flexible hose from the disc brake cylinder assembly LH.
      GTY806653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE DISC BRAKE CYLINDER ASSEMBLY LH
    1. Remove the 2 bolts and disc brake cylinder assembly LH from the steering knuckle.
      GTY806639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE FRONT DISC LH
    1. Put matchmarks on the front disc LH and the front axle hub sub-assembly LH.

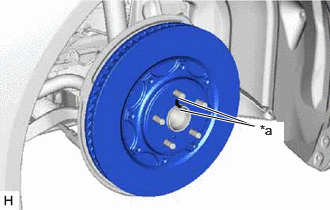

      GTY834148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark

      HINT:

      Not required when replacing the front disc LH.

    2. Remove the front disc LH.
  8. REMOVE FRONT DISC BRAKE PAD
    1. Remove the front disc brake pad from the disc brake cylinder assembly LH.
      GTY806961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE PAD WEAR INDICATOR WIRE CLIP (for RH Side)

    Refer to PROCEDURE - Step 6

  10. REMOVE FRONT DISC BRAKE ANTI-SQUEAL SHIM KIT

    Refer to PROCEDURE - Step 7
