Removal [05/2023 - ]: Procedure
- DISCONNECT BRAKE BOOSTER PUMP CONNECTOR
Refer to PROCEDURE - Step 2
- REMOVE FRONT WHEEL
Refer to REMOVAL [05/2023 - ]
- REMOVE FRONT PAD WEAR INDICATOR WIRE ASSEMBLY RH (for RH Side) WARNING:
Be careful not to get pinched by the disc brake cylinder assembly or other parts when removing the front disc brake pads
NOTE:Be sure to inspect the front disc when replacing the front disc brake pads with new ones.
Refer to INSPECTION [05/2023 - ]

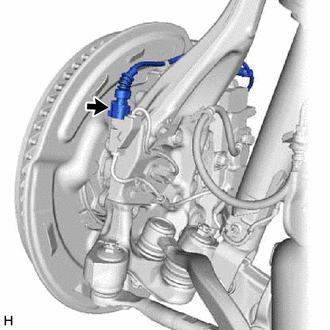

- Disconnect the front pad wear indicator wire connector from the front skid control sensor wire.

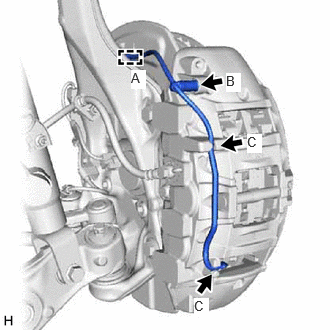

- Detach the clamp (A) and remove the bleeder plug cap (B).
- Detach the front pad wear indicator wire assemblies RH from the 2 locations indicated in the illustration (C) in the disc brake cylinder assembly RH.
- While pulling the pad wear indicator wire clip guide toward the inside of the vehicle, remove the pad wear indicator wire assembly from the rear disc brake pad.

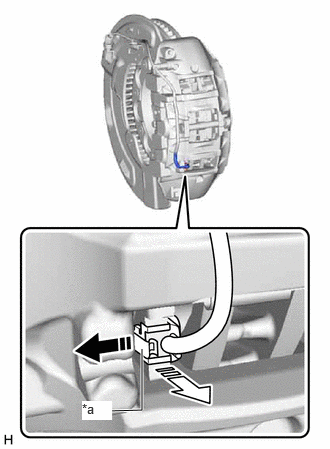

*a guide Remove in this Direction (1) Remove in this Direction (2) NOTE:The pad wear indicator wire retainer may become deformed if excessive force is used to pull on it. Therefore, do not excessively pull on the guide.
- Disconnect the front pad wear indicator wire connector from the front skid control sensor wire.
- DISCONNECT DISC BRAKE CYLINDER ASSEMBLY LH

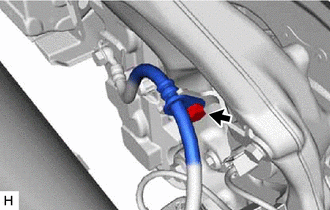

- Remove the bolt and disconnect the flexible hose from the front flexible hose bracket LH.
- Loosen the bolts on the lower side of the disc brake cylinder assembly LH and remove the bolts on the top side.NOTE:
Do not excessively loosen the bolts on the lower side of the disc brake cylinder assembly LH.

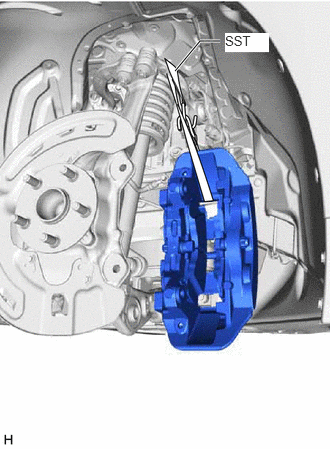

- Tilt the disc brake cylinder assembly LH and install SST as shown in the illustration.
- SST: 09727-00110
Install SST to the No. 2 front suspension upper arm assembly LH.
NOTE:The No. 2 front suspension upper arm assembly LH may become damaged if the metal part of SST contacts it. Therefore, install it so that the metal part does not contact the No. 2 front suspension upper arm assembly LH.
- Remove the bolt on the lower side of the disc brake cylinder assembly LH and disconnect it.NOTE:
- Do not apply excessive force to the flexible hose.
- If there is no looseness on the flexible hose, adjust the length of SST.
- Remove the front disc LH.
Refer to PROCEDURE - Step 7
- Remove the bolt and disconnect the flexible hose from the front flexible hose bracket LH.
- REMOVE FRONT DISC BRAKE PAD

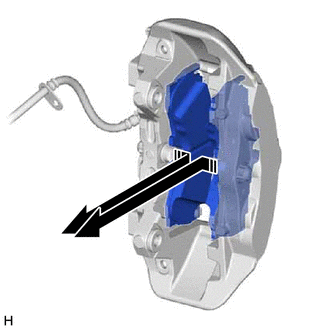

- Remove the 2 front disc brake pads from the disc brake cylinder assembly LH.
- REMOVE PAD WEAR INDICATOR WIRE CLIP (for RH Side)
- REMOVE FRONT DISC BRAKE ANTI-SQUEAL SHIM KIT

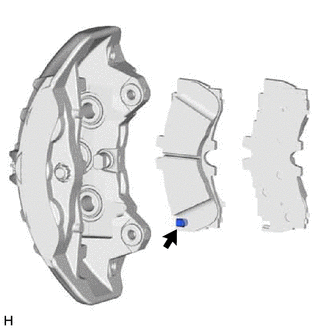

- Remove the No. 1 anti-squeal shim from the front disc brake pad.
