Removal [05/2023 - ]: Procedure

  1. DISCONNECT BRAKE BOOSTER PUMP CONNECTOR

    Refer to PROCEDURE - Step 6

  2. REMOVE FRONT WHEEL

    Refer to REMOVAL [05/2023 - ]

  3. DRAIN BRAKE FLUID
    NOTE:

    If brake fluid leaks onto any painted surface, immediately wash it off.

  4. REMOVE FRONT PAD WEAR INDICATOR WIRE ASSEMBLY RH (for RH Side)

    Refer to PROCEDURE - Step 3

  5. DISCONNECT FRONT FLEXIBLE HOSE

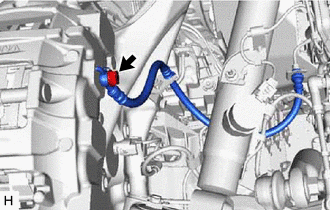

    1. Remove the union bolt and gasket, and disconnect the front flexible hose from the disc brake cylinder assembly LH.
      GTY806653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE DISC BRAKE CYLINDER ASSEMBLY LH
    1. Remove the 2 bolts and disc brake cylinder assembly LH from the steering knuckle.
      GTY806639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE FRONT DISC LH

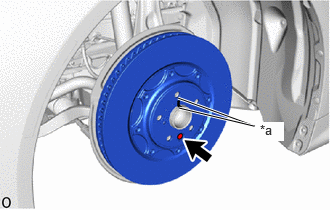

    1. Put matchmarks on the front disc LH and the front axle hub sub-assembly LH.
      GTY1243282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark

      HINT:

      Not required when replacing the front disc LH.

    2. Using a 5 mm hexagon socket, remove the bolt.
    3. Remove the front disc LH.
      NOTE:

      Check that the bolt has been fully removed.

  8. REMOVE FRONT DISC BRAKE PAD

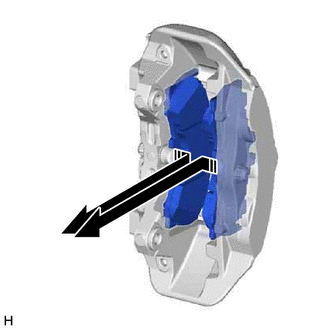

    1. Remove the front disc brake pad from the disc brake cylinder assembly LH.
      GTY806961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE PAD WEAR INDICATOR WIRE CLIP (for RH Side)

    Refer to PROCEDURE - Step 6

  10. REMOVE FRONT DISC BRAKE ANTI-SQUEAL SHIM KIT

    Refer to PROCEDURE - Step 7
