Removal [07/2020 - 05/2023]: Procedure

  1. PRECAUTION
    NOTE:
    • When replacing the auxiliary battery, use a new auxiliary battery of the same dimensions and same capacity or more from the same class at a 20-hour rate.
    • After replacing the battery, install the ventilation hole plug supplied with the new battery or the ventilation hole plug from the old battery to the ventilation hole on the side to which the battery hose is not connected.
  2. REMOVE NO. 2 DECK BOARD

    Refer to PROCEDURE - Step 13 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 13 [10/2022 - 05/2023]

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

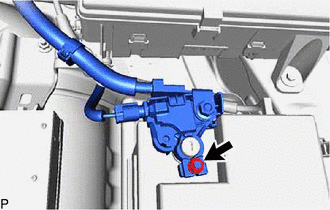

    1. Loosen the nut, and disconnect the cable from the negative (-) battery terminal.
      GTY785069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE BATTERY

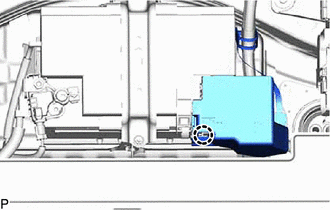

    1. Disengage the claw and disconnect the battery terminal cap.
      GTY785073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

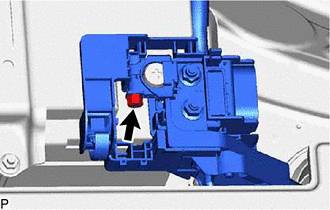

    2. Loosen the nut and disconnect the cable from the positive (+) battery terminal.
      GTY829455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

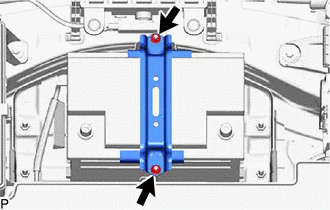

    3. Remove the 2 nuts and battery clamp sub-assembly.
      GTY829454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

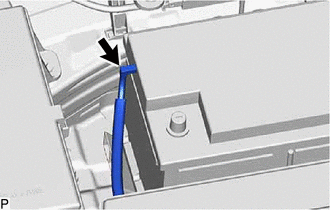

    4. Disconnect the battery exhaust hose from the battery.
      GTY785071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the battery.
