Installation [07/2020 - ]: Procedure

1. Install the purge VSV to the intake air surge tank assembly with the bolt.

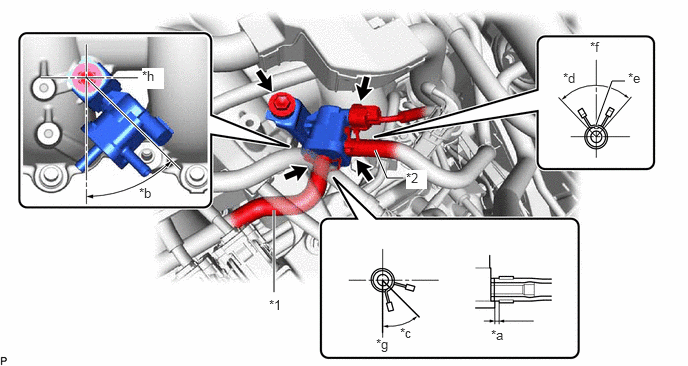

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Fuel Vapor Feed Hose	*2	No. 1 Fuel Vapor Feed Hose
   *a	1 to 5 mm (0.0394 to 0.197 in.)	*b	30° to 60°
   *c	40° to 60°	*d	120°
   *e	Paint Mark	*f	Upper
   *g	Under	*h	Back

   Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

   HINT:

   Make sure the direction of the purge VSV is as shown in the illustration.

2. Connect the purge VSV connector.
3. Connect the No. 1 fuel vapor feed hose to the purge VSV and slide the clip to secure it.

   HINT:

   Engage the clip within the area shown in the illustration.

4. Connect the fuel vapor feed hose to the purge VSV and slide the clip to secure it.

   HINT:

   Engage the clip within the area shown in the illustration.

5. Install the wire harness bracket to the intake air surge tank assembly with the bolt.

   Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

6. Attach the clamp and connect the wire harness to the wire harness bracket.

Refer to PROCEDURE - Step 147 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 150 [05/2023 - ]
