Removal [05/2023 - ]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [05/2023 - ]

  2. REMOVE HOOD LOCK RELEASE LEVER PROTECTOR

    Refer to PROCEDURE - Step 5

  3. REMOVE HIGH PITCHED HORN ASSEMBLY
    1. Remove the bolt and high pitched horn assembly.

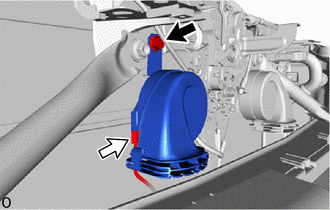

      GTY1243280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Connector
    2. Disconnect the connector.
  4. REMOVE LOW PITCHED HORN ASSEMBLY
    1. Remove the bolt and low pitched horn assembly.
      GTY792395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Connector
    2. Disconnect the connector.
