Removal [07/2020 - 05/2023]: Procedure

  1. REMOVE FRONT DOOR SCUFF PLATE LH

    See step  9 [07/2020 - 10/2022], or see step  9 [10/2022 - 05/2023]

  2. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure described for the LH side.

  3. REMOVE FRONT DOOR OPENING TRIM COVER LH

    See step  11 [07/2020 - 10/2022], or see step  11 [10/2022 - 05/2023]

  4. REMOVE FRONT DOOR OPENING TRIM COVER RH

    HINT:

    Use the same procedure described for the LH side.

  5. REMOVE FRONT DOOR NO. 2 OPENING TRIM COVER LH

    See step  13 [07/2020 - 10/2022], or see step  13 [10/2022 - 05/2023]

  6. REMOVE FRONT DOOR NO. 2 OPENING TRIM COVER RH

    See step  14 [07/2020 - 10/2022], or see step  14 [10/2022 - 05/2023]

  7. REMOVE FRONT PILLAR GARNISH ASSEMBLY LH

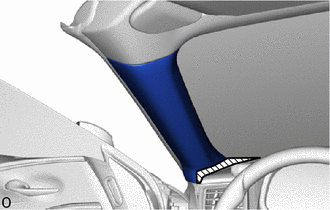

    1. Apply protective tape at the position shown in the illustration.
      GTY954042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

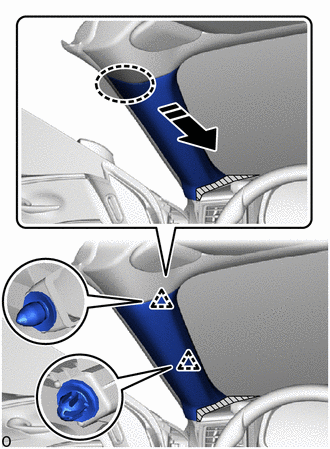

    2. Detach the clip as shown in the illustration.
      GTY953814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place hand here
      Remove in this Direction

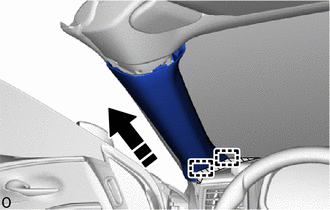

    3. Detach the guide and remove the front pillar garnish assembly LH as shwon in the illustration.
      GTY953371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  8. REMOVE FRONT PILLAR GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  9. REMOVE VISOR BRACKET COVER LH

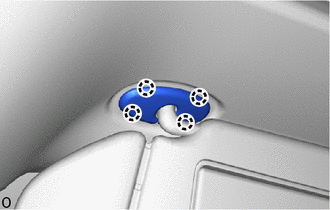

    1. Detach the claw and remove the visor bracket cover LH.
      GTY953697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE VISOR BRACKET COVER RH

    HINT:

    Use the same procedure described for the LH side.

  11. REMOVE MAP LIGHT ASSEMBLY

    Refer to REMOVAL [07/2020 - 05/2023]

  12. REMOVE RAIN SENSOR COVER

    Refer to PROCEDURE - Step 1

  13. REMOVE VISOR HOLDER LH

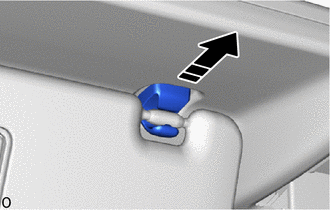

    1. Detach the visor assembly LH from the visor holder LH as shown in the illustration
      GTY953633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

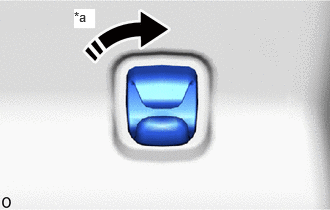

    2. Turn the visor holder LH end approximately 90° in direction indicated by the arrow shown in the illustration.
      GTY953585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 90°
      Remove in this Direction

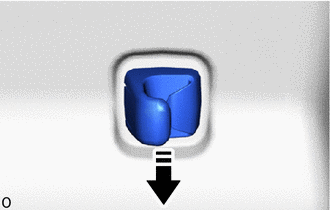

    3. Pull out the visor holder LH as shown in the illustration.
      GTY953564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

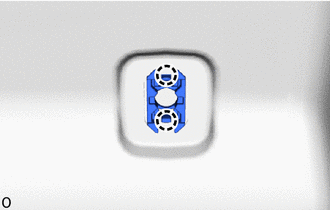

    4. Detach the claw and remove the visor holder LH.
      GTY953710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE VISOR HOLDER RH

    HINT:

    Use the same procedure described for the LH side.

  15. REMOVE FRONT ROOF HEADLINING TRIM

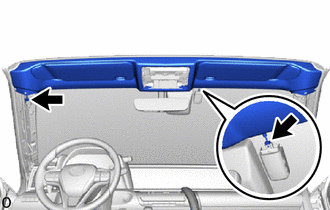

    1. Disconnect the 2 connectors.
      GTY953708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

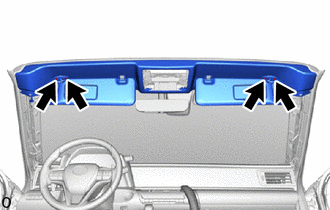

    2. Remove the 4 screws.
      GTY953688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

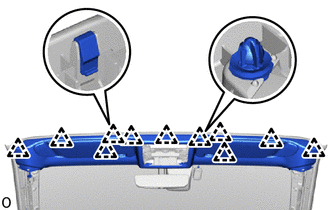

    3. Detach the clip and remove the front roof headlining trim.
      GTY953693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
