Removal [07/2020 - ]: Procedure

  1. REMOVE RAIN SENSOR COVER
    1. GTY774920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Stopper
      Remove in this Direction (1)
      Remove in this Direction (2)

      Release the stopper by pulling it out and disconnect the rain sensor as indicated by the arrows in the order shown in the illustration.

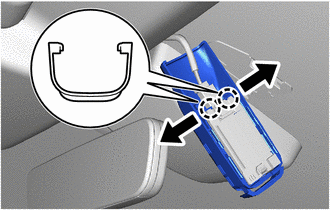

    2. GTY824875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disengage the claws to remove the rain sensor cover as shown in the illustration.

  2. REMOVE RAIN SENSOR

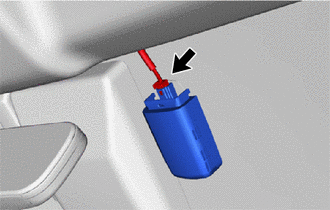

    1. Disconnect the connector to remove the rain sensor.
      GTY824874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
