Removal [05/2023 - ]: Procedure

  1. REMOVE CONSOLE PLATE

    Refer to PROCEDURE - Step 3

  2. REMOVE RADIO REMOTE TUNING SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 4

  3. REMOVE REFRESHING SEAT SWITCH

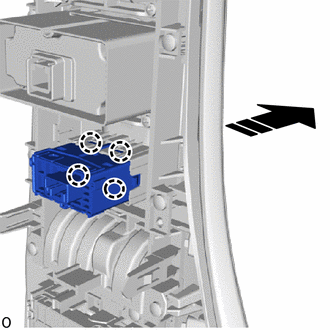

    1. Detach the claw and remove the refreshing seat switch.
      GTY1242814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
