Installation [05/2023 - ]: Procedure

  1. INSTALL REFRESHING SEAT SWITCH

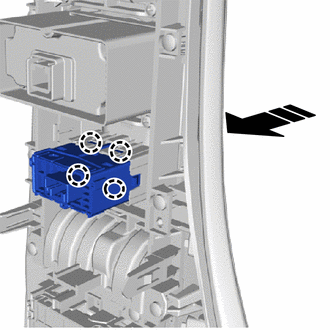

    1. Attach the claw and install the refreshing seat switch.
      GTY1242676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. INSTALL RADIO REMOTE TUNING SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 12

  3. INSTALL CONSOLE PLATE

    Refer to PROCEDURE - Step 13
