Installation [07/2020 - ]: Procedure

INSTALL REAR NO. 1 SEATBACK STAY BRACKET

for LH side:

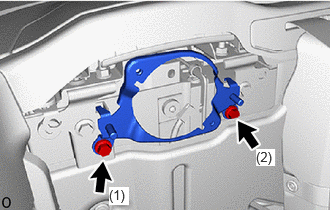

Fig 1: Rear No. 1 Seatback Stay Bracket Tightening Sequence
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Temporarily install the rear No. 1 seatback stay bracket with the 2 bolts.
2. Tighten the 2 bolts in the order shown in the illustration.
  Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

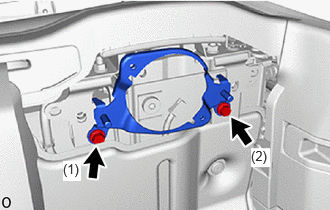

for RH side:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Temporarily install the rear No. 1 seatback stay bracket with the 2 bolts.
Tighten the 2 bolts in the order shown in the illustration.
Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

INSTALL REAR NO. 2 SPEAKER ASSEMBLY
HINT:

Use the same procedure for the other side.

Refer to PROCEDURE - Step 5 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 5 [05/2023 - ]

INSTALL REAR SEATBACK ASSEMBLY LH

Place the rear seatback assembly LH in the vehicle.
NOTE:
Do not damage the rear seatback assembly LH, body and body interior.

Temporarily install the rear seatback assembly LH to the stud bolt.

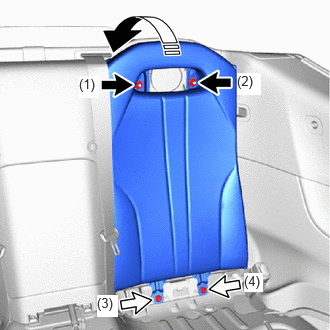

Fig 2: Rear Seatback Assembly LH Tightening Sequence

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Nut
	Bolt
	Install in this Direction

Temporarily install the 2 nuts and 2 bolts.
Tighten the 2 nuts and 2 bolts in the order shown in the illustration.
Bolt

Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

Nut

Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

INSTALL REAR SEATBACK ASSEMBLY RH

Place the rear seatback assembly RH in the vehicle.
NOTE:
Do not damage the rear seatback assembly RH, body and body interior.

Temporarily install the rear seatback assembly RH to the stud bolt.

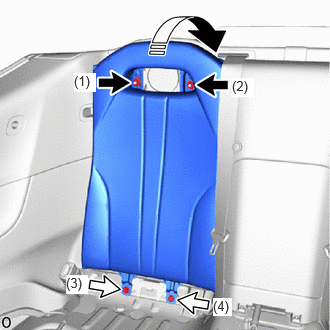

Fig 3: Rear Seatback Assembly RH Tightening Sequence

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Nut
	Bolt
	Install in this Direction

Temporarily install the 2 nuts and 2 bolts.
Tighten the 2 nuts and 2 bolts in the order shown in the illustration.
Bolt

Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

Nut

Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

INSTALL REAR SEATBACK COVER

HINT:

Use the same procedure for the other side.

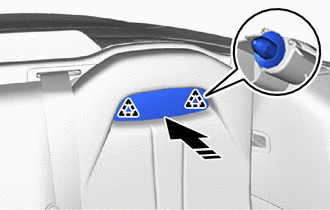

When reusing the rear seatback cover

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

Install 2 new clips to the rear seatback cover as shown in the illustration.

Attach the clip to install the rear seatback cover.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

INSTALL REAR SEAT CUSHION HOLDER BRACKET

HINT:

Use the same procedure for the other side.

Install the rear seat cushion holder bracket with the bolt.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

INSTALL REAR SEAT CUSHION LOCK HOOK

HINT:

Use the same procedure for the other side.

Set a new rear seat cushion lock hook in place.

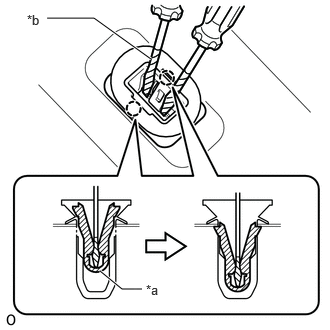

Using 2 thin-bladed screwdrivers, push the sleeve to attach the claw.

*a	Sleeve
*b	Protective Tape

NOTE:

Do not apply excessive force which may break the sleeve.

HINT:

Tape the thin-bladed screwdriver tip before use.

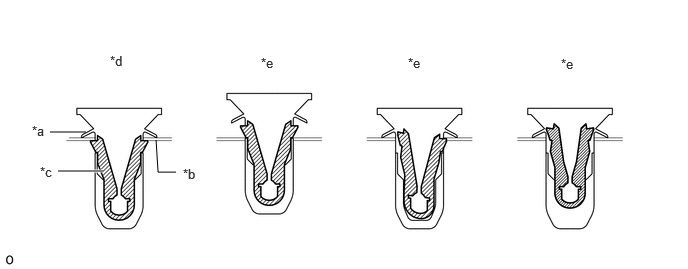

Check the installation condition.

The sleeve is installed properly.

*a	Body	*b	Vehicle
*c	Sleeve	*d	Correct
*e	Incorrect	-	-

INSTALL REAR SEAT CUSHION ASSEMBLY

Place the rear seat cushion assembly in the vehicle.
NOTE:
Do not damage the rear seat cushion assembly, body and body interior.

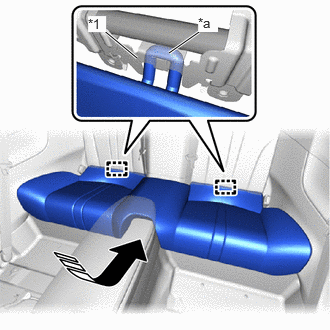

Attach the hook on the rear of the rear seat cushion assembly to the 2 child restraint seat anchor brackets.

*1	Child Restraint Seat Anchor Bracket
*a	Hook on Rear of Rear Seat Cushion
	Install in this Direction

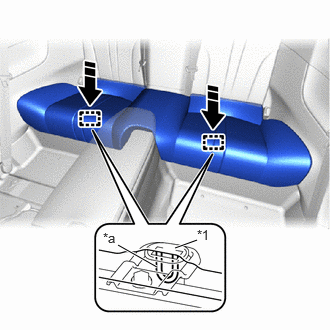

Push in the installation direction shown in the illustration and attach the hook on the front of the rear seat cushion assembly to the 2 rear seat cushion lock hooks to install the rear seat cushion assembly.

*1	Rear Seat Cushion Lock Hook
*a	Hook on Front of Rear Seat Cushion
	Install in this Direction

NOTE:

Attach the rear seat cushion front side hook one at a time.
Check that the rear seat cushion lock hooks and rear seat cushion assembly are securely fastened.
