Reassembly [07/2020 - 10/2022]: Procedure

  1. INSTALL LUGGAGE COMPARTMENT DOOR PANEL CUSHION

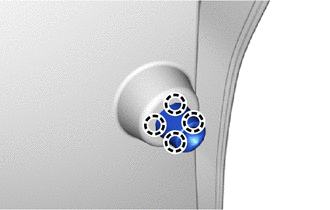

    1. Attach the claw to install a new luggage compartment door panel cushion.
      GTY952709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure described for the other side.

  2. INSTALL NO. 5 ANTENNA CORD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  3. INSTALL NO. 4 LUGGAGE ROOM WIRE

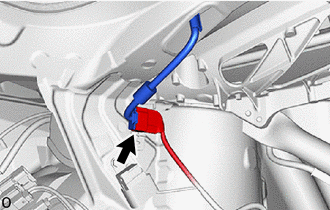

    1. Pass the No. 4 luggage room wire through the wire harness grommet and insert it into the inside of the luggage room.
      GTY952710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector.

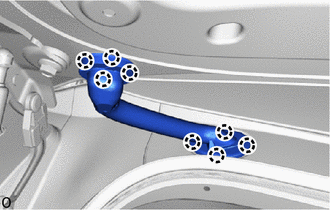

    3. GTY952702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Attach the claw to install the grommet.

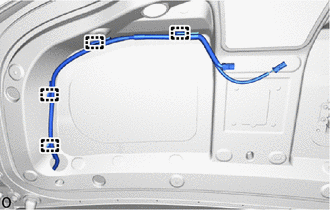

    4. Attach the clamp and install the No. 4 luggage room wire.
      GTY952706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL NO. 2 LUGGAGE COMPARTMENT TRIM COVER

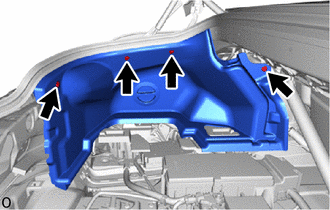

    1. Install the No. 2 luggage compartment trim cover with the 4 clips.
      GTY952736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM COVER

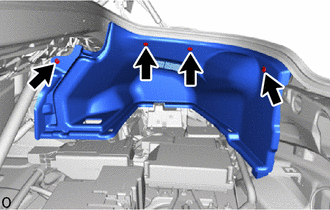

    1. Install the No. 1 luggage compartment trim cover with the 4 clips.
      GTY951490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

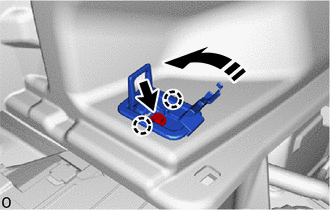

    2. Install the rope hook assembly with the bolt.
      GTY952597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Close in this Direction

      Torque: 6.5 N.m (66 kgf/cm, 58 in.lbf)

    3. Close the rope hook assembly cap as shown in the illustration to attach the claw.
  6. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER

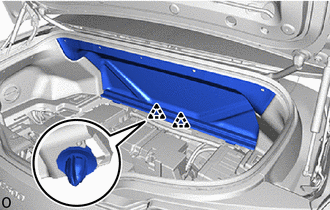

    1. Attach the clip.
      GTY952670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

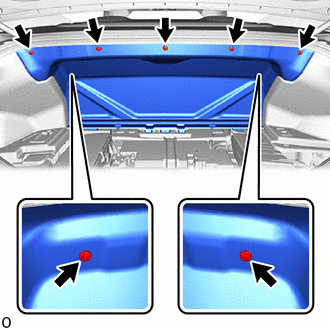

    2. Install the front luggage compartment trim cover with the 7 clips.
      GTY952735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  8. INSTALL LUGGAGE COMPARTMENT TRIM BOX
    1. Install the luggage compartment trim box.
  9. INSTALL REAR FLOOR FINISH PLATE

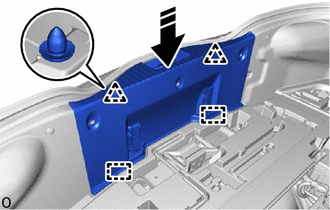

    1. Insert the guide as shown in the illustration.
      GTY952562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Attach the clip.

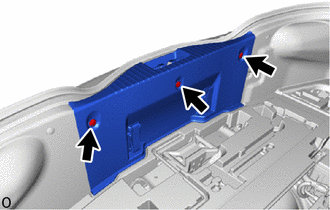

    3. Install the rear floor finish plate with the 3 clips.
      GTY952737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL SIDE TRIM BOX

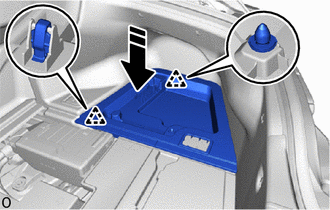

    1. Attach the clip to install the side trim box.
      GTY952085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

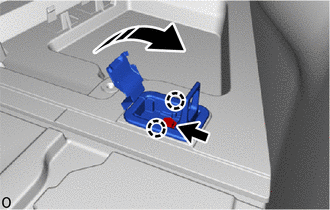

    2. Install the rope hook assembly with the bolt.
      GTY952777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Close in this Direction

      Torque: 6.5 N.m (66 kgf/cm, 58 in.lbf)

    3. Close the rope hook assembly cap as shown in the illustration to attach the claw.
  11. INSTALL LUGGAGE COMPARTMENT TRIM COVER LH

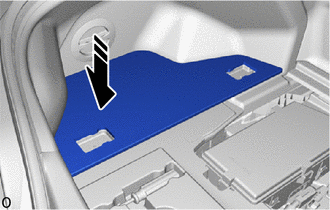

    1. Install the luggage compartment trim cover LH.
      GTY952665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

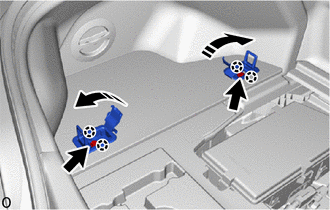

    2. Install the 2 rope hook assemblies with the 2 bolts.
      GTY952233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Close in this Direction

      Torque: 6.5 N.m (66 kgf/cm, 58 in.lbf)

    3. Close the rope hook assembly cap as shown in the illustration to attach the claw.
  12. INSTALL LUGGAGE COMPARTMENT TRIM COVER RH

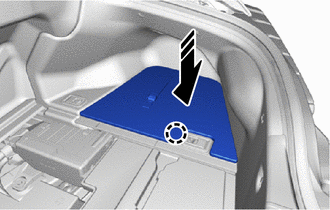

    1. Attach the claw to install the luggage compartment trim cover RH.
      GTY951587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  13. INSTALL NO. 2 DECK BOARD

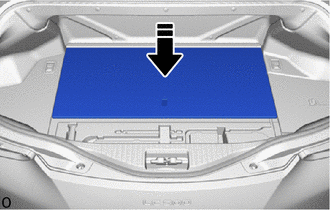

    1. Install the No. 2 deck board.
      GTY952270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  14. INSTALL NO. 1 DECK BOARD

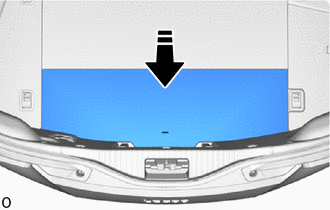

    1. Install the No. 1 deck board.
      GTY951848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  15. INSTALL LUGGAGE COMPARTMENT DOOR STRIKER ASSEMBLY

    See step  1

  16. INSTALL LUGGAGE DOOR LOCK PROTECTOR

    See step  2

  17. INSTALL LUGGAGE COMPARTMENT DOOR HOUSING

    HINT:

    When installing the luggage compartment door housing, heat the luggage compartment door panel and luggage compartment door housing using a heat light.

    Standard

    Item Temperature
    Luggage Compartment Door Panel 40 to 60°C (104 to 140°F)
    Luggage Compartment Door Housing 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY583249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    1. Clean the luggage compartment door panel surface.
      1. Using a heat light, heat the luggage compartment door panel surface.
      2. Remove the double-sided tape from the luggage compartment door panel.
      3. Wipe off any tape adhesive residue with cleaner.
    2. Remove the peeling paper from the face of a new luggage compartment door housing.

      HINT:

      After removing the peeling paper, keep the exposed adhesive free from foreign matter.

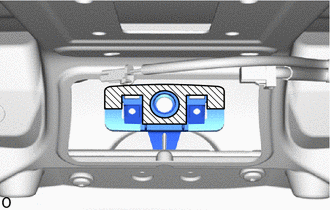

    3. Attach the double-sided tape to install the luggage compartment door housing.
      GTY951483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Double-sided Tape

      HINT:

      Press the luggage compartment door housing firmly to install it.

  18. INSTALL SYMBOL EMBLEM

    Refer to PROCEDURE - Step 1

  19. INSTALL REAR TELEVISION CAMERA ASSEMBLY

    Refer to PROCEDURE - Step 1

  20. INSTALL SATELLITE RADIO ANTENNA ASSEMBLY (w/ Mayday System)

    Refer to PROCEDURE - Step 1

  21. INSTALL CENTER STOP LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  22. INSTALL CENTER STOP LIGHT WIRE

    Refer to PROCEDURE - Step 2

  23. INSTALL NO. 2 AMPLIFIER ANTENNA ASSEMBLY

    Refer to PROCEDURE - Step 1

  24. INSTALL LUGGAGE COMPARTMENT DOOR COVER

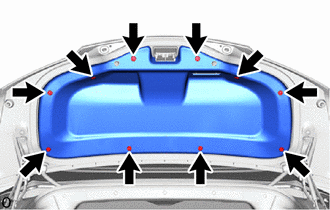

    1. Install the luggage compartment door cover with the 10 clips.
      GTY952474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. INSTALL LUGGAGE COMPARTMENT DOOR ASSIST GRIP ASSEMBLY

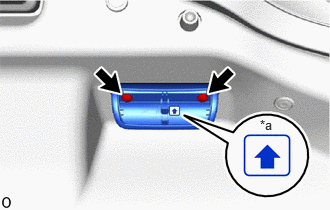

    1. Using a 5 mm hexagon socket wrench, install the luggage compartment door assist grip assembly with the 2 screws.
      GTY1243123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a w/ Arrow Mark

      HINT:

      Install the luggage compartment door assist grip assembly so that the arrow faces the top of the vehicle.(w/ Arrow Mark)

    2. Close the cover.
  26. ADJUST REAR TELEVISION CAMERA ASSEMBLY

    Refer to CALIBRATION [07/2020 - 05/2023]
