Installation [07/2020 - ]: Procedure

1. Perform this step only when replacement of the clips are necessary
   NOTE:

   • If the clips has been removed, replace it with thr new one.
   • Before installing, check that the clip installation area is free of foreign matter.

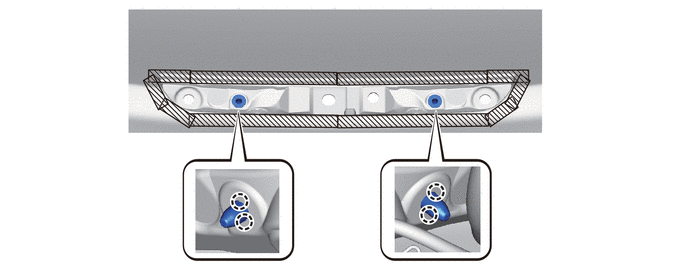

   1. Attach the claw and install the new 2 clips.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

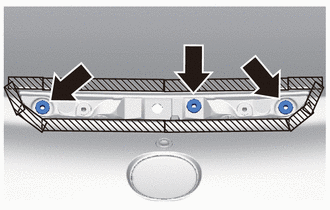

2. Install the new 3 collars.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • If the collars has been removed, replace it with the new one.
   • Before installing, check that the collar installation area is free of foreign matter.

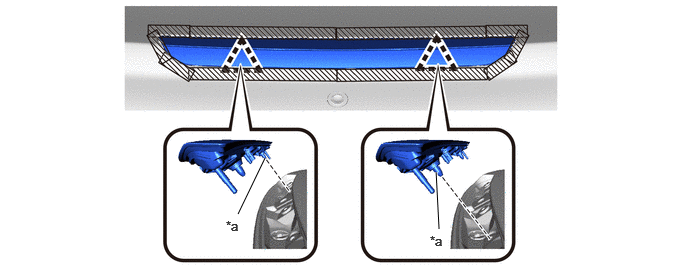

3. Attach the pin of the center stop light assembly to the clips.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Pin

   -

   -

   NOTE:

   • Before installing, check that the center stop light assembly installation area is free of foreign matter.
   • When separating the center stop light assembly, be careful not to damage the luggage compartment door.
4. Install the center stop light assembly with the 3 nuts

   Torque: 4.9 N.m (50 kgf/cm,

5. Remove the protective tape.

1. Connect the 2 connectors.
2. Attach the connector clamps and install the centor stop light wire.

Refer to PROCEDURE - Step 24 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 24 [10/2022 - 05/2023] , or refer to PROCEDURE - Step 24 [05/2023 - ]

Refer to PROCEDURE - Step 25 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 25 [10/2022 - 05/2023] , or refer to PROCEDURE - Step 25 [05/2023 - ]
