Removal [07/2020 - 05/2023]: Procedure

  1. REMOVE RADIO REMOTE TUNING SWITCH ASSEMBLY

    Refer to REMOVAL [07/2020 - 05/2023]

  2. REMOVE SLIDING ROOF SWITCH ASSEMBLY

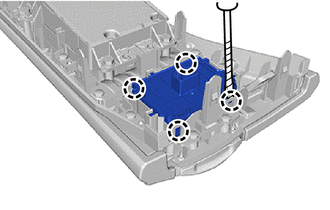

    1. Using a thin-bladed screwdriver with its tip wrapped with protective tape, detach the claw and remove the sliding roof switch assembly.
      GTY953566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
