Installation [07/2020 - 05/2023]: Procedure

  1. INSTALL MULTI-DISPLAY

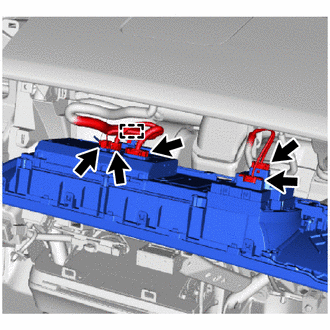

    1. Connect the 5 connectors and attach the clamp.
      GTY964016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

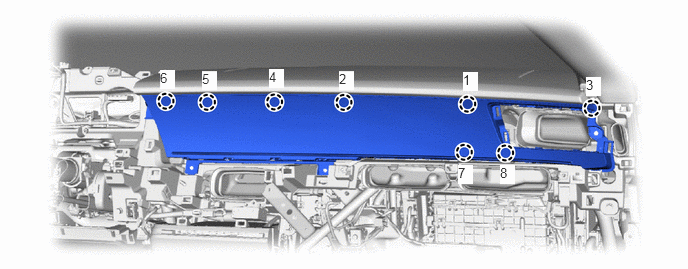

    2. Attach the claw in the order shown in the illustration to install the multi-display.
      GTY810930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      If the claws are not attached in the order shown in the illustration, the multi-display may become damaged.

    3. Install the 4 bolts.
      GTY836766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY

    Refer to PROCEDURE - Step 15 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 15 [10/2022 - 05/2023]

  3. INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY

    Refer to PROCEDURE - Step 19 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 19 [10/2022 - 05/2023]

  4. INSTALL LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to INSTALLATION [07/2020 - 05/2023]

  5. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY

    Refer to INSTALLATION [07/2020 - 05/2023]

  6. INSTALL COMBINATION METER ASSEMBLY

    Refer to INSTALLATION [07/2020 - ]

  7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Refer to INSTALLATION [07/2020 - 05/2023]

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [07/2020 - 05/2023]
