Removal [07/2020 - 05/2023]: Procedure

PRECAUTION
NOTE:
- After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.
  Refer to INITIALIZATION [07/2020 - 05/2023]
- After replacing the radio receiver assembly, if the "New software is not compatible with the system. Contact your dealer." on-screen message is displayed on the multi-display, update the software of the navigation ECU.
  Refer to PRECAUTION [07/2020 - 10/2022] , or refer to PRECAUTION [10/2022 - 05/2023]
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
Refer to REMOVAL [07/2020 - 05/2023]

NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [07/2020 - 05/2023]
REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY
Refer to REMOVAL [07/2020 - 05/2023]

REMOVE RADIO RECEIVER ASSEMBLY WITH BRACKET

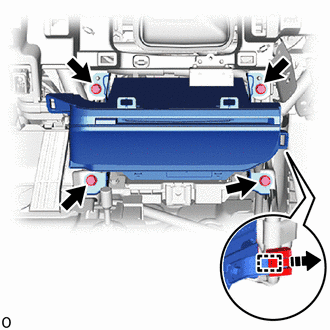

Remove the 4 bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

REMOVE NO. 1 RADIO BRACKET

Remove the 5 screws and No. 1 radio bracket.

REMOVE NO. 2 RADIO BRACKET

Remove the 5 screws and No. 2 radio bracket.
