Removal [07/2020 - 05/2023]: Procedure

  1. REMOVE FRONT DOOR SCUFF PLATE LH (for Side)

    Refer to PROCEDURE - Step 9 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 9 [10/2022 - 05/2023]

  2. REMOVE FRONT DOOR OPENING TRIM COVER LH (for Side)

    Refer to PROCEDURE - Step 11 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 11 [10/2022 - 05/2023]

  3. REMOVE FRONT DOOR NO. 2 OPENING TRIM COVER LH (for Side)

    Refer to PROCEDURE - Step 13 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 13 [10/2022 - 05/2023]

  4. REMOVE FRONT PILLAR GARNISH ASSEMBLY LH (for Side)

    Refer to PROCEDURE - Step 7

  5. REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY (for Side)

    Refer to PROCEDURE - Step 34 [07/2020 - 10/2022] , or refer to PROCEDURE - Step 34 [10/2022 - 05/2023]

  6. REMOVE FRONT NO. 1 SPEAKER ASSEMBLY (for Side)
    NOTE:

    Do not touch the cone part of the speaker.

    1. Remove the 2 screws.
      GTY836650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector and remove the front No. 1 speaker assembly.
  7. REMOVE NO. 1 SPEAKER OPENING COVER ASSEMBLY (for Center)

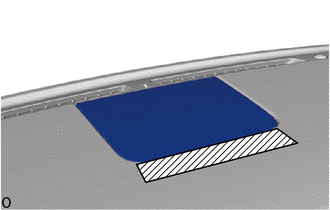

    1. Apply protective tape to the areas shown in the illustration to prevent damage in the following procedures.
      GTY825707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective tape

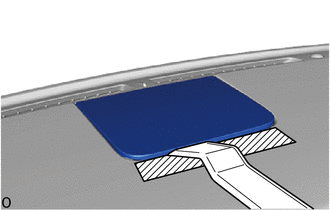

    2. Insert the moulding remover B between the instrument safety pad sub-assembly in the position shown in the illustration and create a gap.
      GTY817817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

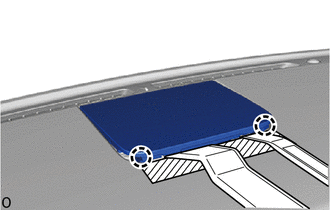

    3. Using moulding remover A in the gap created in the previous procedure, detach the claw.
      GTY817815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

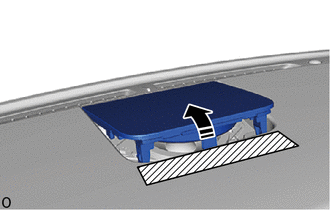

    4. Move the No. 1 speaker opening cover assembly in the direction indicated by the arrow shown in the illustration.
      GTY790065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

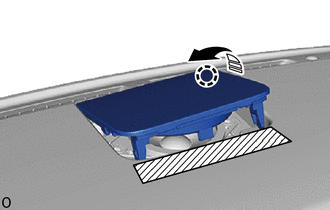

    5. Detach the claw in the direction indicated by the arrow shown in the illustration.
      GTY817085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

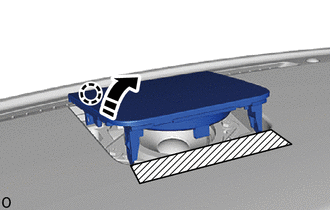

    6. Detach the claw in the direction indicated by the arrow shown in the illustration and remove the No. 1 speaker opening cover assembly.
      GTY823018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  8. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY (for Center)
    NOTE:

    Do not touch the cone part of the speaker.

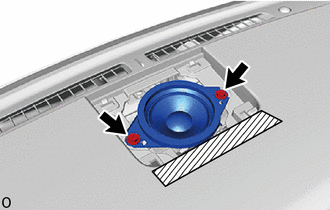

    1. Remove the 2 screws.
      GTY836661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector and remove the front No. 2 speaker assembly.
