Removal [09/2020 - ]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT DOOR COVER

    Refer to PROCEDURE - Step 2

  2. REMOVE REAR SPOILER SUB-ASSEMBLY
    1. Apply protective tape around the rear spoiler sub-assembly as shown in the illustration.

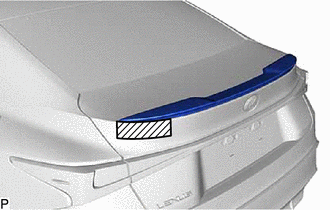

      GTY966901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Remove the 2 nuts.

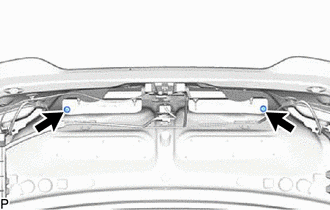

      GTY967705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a moulding remover, disengage the claw as shown in the illustration.

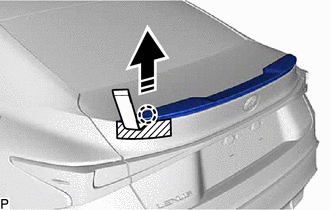

      GTY967551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    4. Separate the double-sided tape and disengage the 3 claws to remove the rear spoiler sub-assembly.

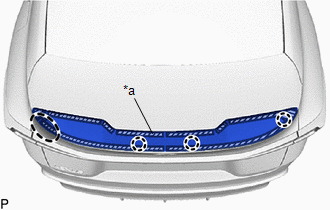

      GTY967979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Double-sided Tape
      Place Hand Here
