  1. REMOVE BACK DOOR ASSIST GRIP
    1. Disengage the 2 claws and guide, and open the cover.
      GTY470311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and back door assist grip.
      GTY464343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE LUGGAGE COMPARTMENT DOOR COVER

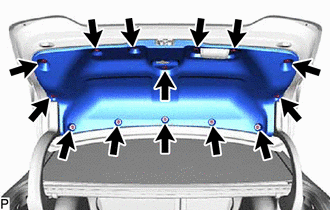

    1. Remove the 14 clips and luggage compartment door cover.
      GTY967426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE LUGGAGE COMPARTMENT DOOR HINGE COVER LH

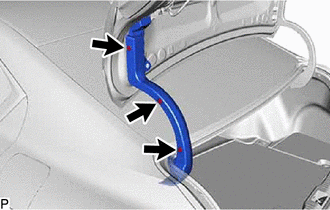

    1. Remove the 3 clips and luggage compartment door hinge cover LH.
      GTY967438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE LUGGAGE COMPARTMENT DOOR HINGE COVER RH

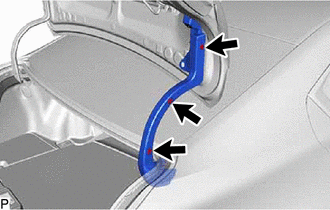

    1. Remove the 3 clips and luggage compartment door hinge cover RH.
      GTY967434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE LUGGAGE COMPARTMENT DOOR CUSHION

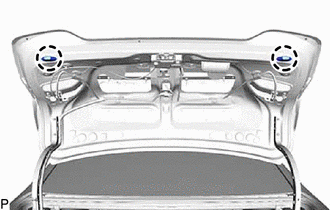

    1. Disengage the 2 claws to remove the 2 luggage compartment door cushions.
      GTY967441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE LUGGAGE COMPARTMENT KEY CYLINDER PROTECTOR

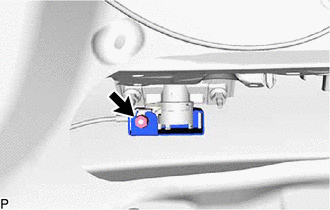

    1. Remove the nut and luggage compartment key cylinder protector.
      GTY803037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY

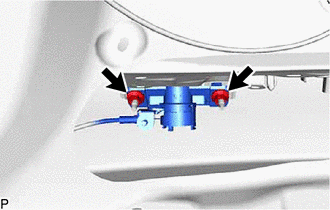

    1. Remove the 2 nuts.
      GTY803038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

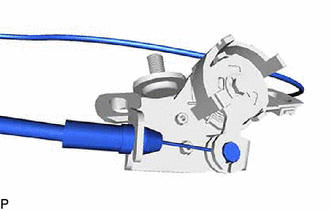

    2. Disconnect the luggage compartment door lock assembly to remove the luggage compartment door lock cylinder assembly.
      GTY803036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY

    Refer to PROCEDURE - Step 4

  9. REMOVE NO. 3 LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH

    Refer to PROCEDURE - Step 1

  10. REMOVE REAR LIGHT COVER LH

    Refer to PROCEDURE - Step 3

  11. REMOVE REAR LIGHT COVER RH

    HINT:

    Use the same procedure as for the LH side.

  12. REMOVE REAR LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 5

  13. REMOVE LUGGAGE ELECTRICAL KEY SWITCH (TELEVISION CAMERA ASSEMBLY)

    See step  2
