Removal [09/2020 - ]: Procedure
- PRECAUTION NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.
Refer to PRECAUTION [09/2020 - ]
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [09/2020 - 11/2021] , or refer to INITIALIZATION [11/2021 - 09/2022] , or refer to INITIALIZATION [09/2022 - 10/2023] , or refer to INITIALIZATION [10/2023 - ]
- REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG
Refer to PROCEDURE - Step 3
- REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL
Refer to PROCEDURE - Step 4
- REMOVE REAR DOOR NO. 3 ARMREST COVER
Refer to PROCEDURE - Step 5
- REMOVE REAR DOOR NO. 1 STIFFENER CUSHION
Refer to PROCEDURE - Step 6
- REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY
Refer to PROCEDURE - Step 7
- REMOVE REAR DOOR INNER GLASS WEATHERSTRIP
Refer to PROCEDURE - Step 9
- REMOVE REAR DOOR SERVICE HOLE COVER
Refer to PROCEDURE - Step 12
- DISCONNECT REAR DOOR WEATHERSTRIP
Refer to PROCEDURE - Step 10
- REMOVE REAR DOOR GLASS RUN
Refer to PROCEDURE - Step 17
- REMOVE REAR DOOR LOWER WINDOW FRAME SUB-ASSEMBLY
Refer to PROCEDURE - Step 18
- REMOVE REAR DOOR QUARTER WINDOW GLASS
Refer to PROCEDURE - Step 19
- REMOVE REAR DOOR GLASS SUB-ASSEMBLY
Refer to PROCEDURE - Step 20

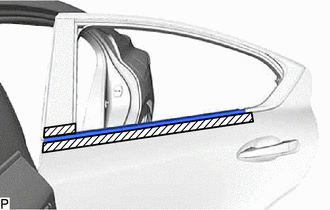

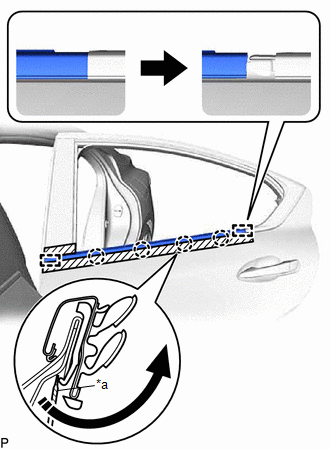

- REMOVE REAR DOOR BELT MOULDING ASSEMBLY
