Removal [09/2020 - ]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT DOOR COVER

    Refer to PROCEDURE - Step 2

  2. REMOVE NO. 3 OUTSIDE LUGGAGE COMPARTMENT DOOR GARNISH

    Refer to PROCEDURE - Step 1

  3. REMOVE REAR LIGHT COVER LH

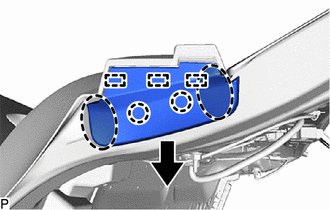

    1. Disengage the 3 guides and 2 claws to remove the rear light cover LH as shown in the illustration.
      GTY971337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
  4. REMOVE REAR LIGHT COVER RH

    HINT:

    Use the same procedure as for the LH side.

  5. REMOVE REAR LIGHT ASSEMBLY
    NOTE:

    If the rear light assembly has been removed, replace the rear light gasket with a new one.

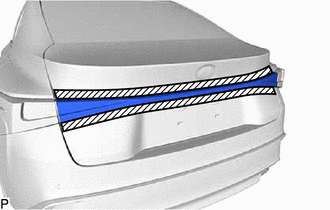

    1. Apply protective tape around the rear light assembly.
      GTY971558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

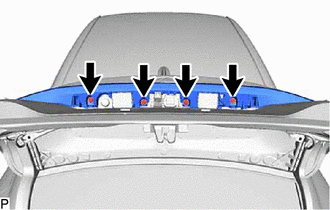

    2. Remove the 4 screws.
      GTY971150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

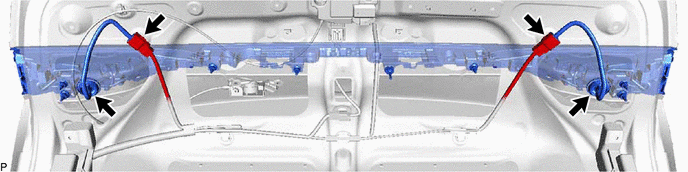

    3. Disconnect the 2 connectors.
      GTY971649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the 2 grommets.

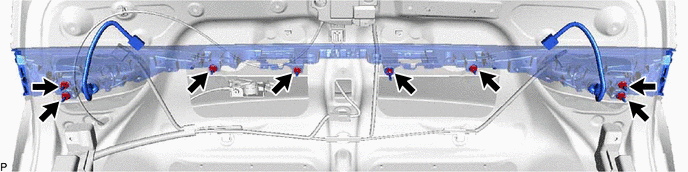

    5. Remove the 8 nuts.
      GTY971169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

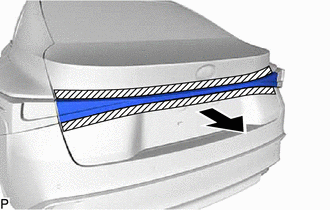

    6. Remove the rear light assembly as shown in the illustration.
      GTY971654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
