Installation [06/2018 - ]: Procedure

1. Install the 2 rear stabilizer bushings to the rear stabilizer bar.
   NOTE:

   Be sure to install the rear stabilizer bushings so that each cutout faces the front of the vehicle.

1. Install the 2 rear No. 1 stabilizer bar brackets to the 2 rear stabilizer bushings.
   NOTE:

   Be sure to install the rear No. 1 stabilizer bar brackets so that each arrow mark faces the front of the vehicle.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Arrow Mark
   	Front of the Vehicle

1. Install the rear stabilizer bar, 2 rear No. 1 stabilizer bar brackets and 2 rear stabilizer bushings to the rear suspension member sub-assembly with the 4 bolts.

   Torque: 78 N.m (795 kgf/cm, 58 ft.lbf)

   NOTE:

   • Ensure that the identification mark faces the right side of the vehicle.
   • Temporarily tighten the bolt (A) and then fully tighten the 2 bolts in the order of (B) and (A).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Identification Mark

Refer to PROCEDURE - Step 4 [06/2018 - 08/2020] , or refer to PROCEDURE - Step 4 [08/2020 - 09/2022] , or refer to PROCEDURE - Step 4 [09/2022 - ]

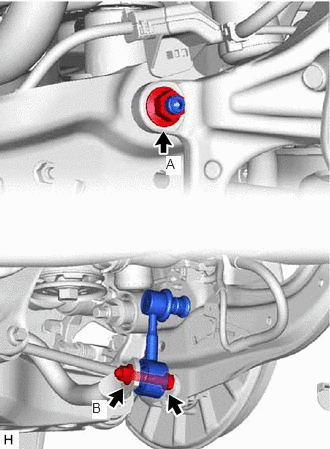

1. Install the rear stabilizer link assembly LH with the nut (A).

   Torque: 75 N.m (765 kgf/cm, 55 ft.lbf)

   HINT:

   If the ball joint turns together with the nut, use a 6 mm hexagon socket wrench to hold the stud bolt.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Install the rear stabilizer link assembly LH with the bolt and nut (B).

   Torque: 75 N.m (765 kgf/cm, 55 ft.lbf)

3. Install the cap to the rear stabilizer link assembly LH.

HINT:

Perform the same procedure as for the LH side.

for 2GR-FKS: Refer to INSTALLATION [06/2018 - ]

for A25A-FXS: Refer to INSTALLATION [06/2018 - ]

1. Install the No. 1 floor under cover with the 2 grommets (B) and 2 clips (C).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Install the 2 bolts and clip (A).

   Bolt

   Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

1. Install the No. 2 floor under cover with the 2 grommets (B) and 2 clips (C).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Install the 2 bolts and clip (A).

   Bolt

   Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

Refer to PROCEDURE - Step 1

for 2GR-FKS: Refer to PROCEDURE - Step 13

for A25A-FXS: Refer to PROCEDURE - Step 9
