Removal [06/2018 - 08/2021]: Procedure

  1. REMOVE REAR SEAT ASSEMBLY

    Refer to REMOVAL [06/2018 - 08/2020] , or refer to REMOVAL [08/2020 - 08/2021]

  2. REMOVE REAR DOOR SCUFF PLATE LH (for HV Model)

    Refer to PROCEDURE - Step 9

  3. REMOVE REAR DOOR SCUFF PLATE LH (for Gasoline Model)

    Refer to PROCEDURE - Step 8

  4. REMOVE REAR DOOR SCUFF PLATE RH (for HV Model)

    HINT:

    Use the same procedure as for the LH side.

  5. REMOVE REAR DOOR SCUFF PLATE RH (for Gasoline Model)

    HINT:

    Use the same procedure as for the LH side.

  6. REMOVE REAR SEAT SIDE GARNISH LH

    Refer to PROCEDURE - Step 19

  7. REMOVE REAR SEAT SIDE GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  8. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH

    Refer to PROCEDURE - Step 20

  9. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  10. DISCONNECT REAR SEAT OUTER BELT ASSEMBLY LH

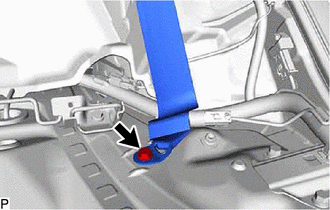

    1. Remove the bolt to disconnect the floor anchor of the rear seat outer belt assembly LH.
      GTY834520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. DISCONNECT REAR SEAT OUTER BELT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  12. REMOVE CENTER STOP LIGHT SET (w/o Rear Sunshade)

    Refer to PROCEDURE - Step 1

  13. REMOVE REAR SEAT SHOULDER BELT COVER

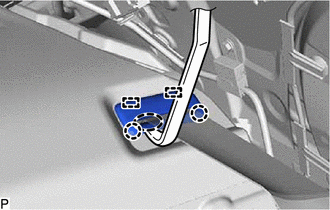

    1. Using a moulding remover, disengage the 2 claws and 2 guides to remove the rear seat shoulder belt cover.

      HINT:

      Use the same procedure for the other rear seat shoulder belt covers.

      GTY789933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Insert Moulding Remover Here
  14. REMOVE CHILD RESTRAINT SEAT TETHER ANCHOR COVER

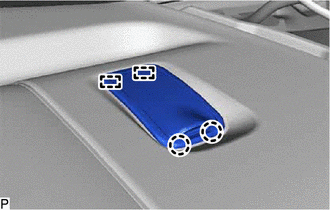

    1. Disengage the 2 claws and 2 guides to remove the child restraint seat tether anchor cover.
      GTY808238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

  15. REMOVE CENTER CHILD RESTRAINT SEAT TETHER ANCHOR COVER (w/o Center Bracket)

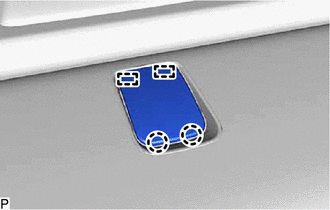

    1. Disengage the 2 claws and 2 guides to remove the center child restraint seat tether anchor cover.
      GTY834525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE CENTER CHILD RESTRAINT SEAT TETHER ANCHOR COVER (w/ Center Bracket)

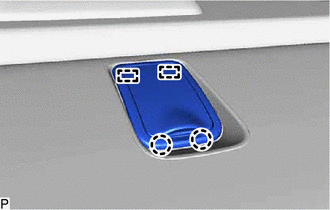

    1. Disengage the 2 claws and 2 guides to remove the center child restraint seat tether anchor cover.
      GTY830903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/o Rear Sunshade)

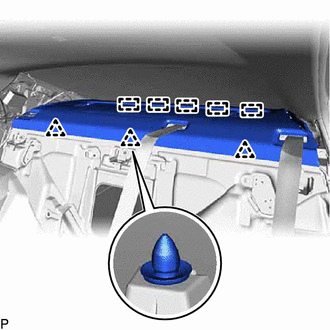

    1. Disengage the 3 clips and 5 guides.
      GTY808237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pass the 3 rear seat belt floor anchors through the package tray trim panel assembly then remove the package tray trim panel assembly.
  18. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Rear Sunshade)
    1. Disengage the 3 clips and guide.
      GTY834524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pass the 3 rear seat belt floor anchors through the package tray trim panel assembly then remove the package tray trim panel assembly.
  19. REMOVE REAR SEAT OUTER BELT ASSEMBLY LH

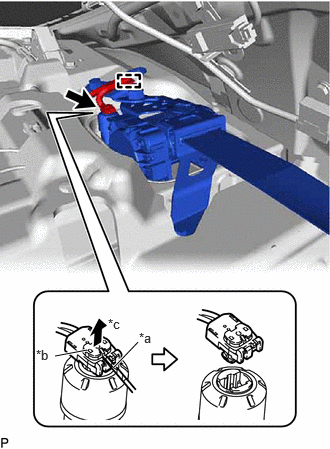

    1. Disengage the clamp.
      GTY799265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      *b Locking Button
      *c Release
    2. Using a screwdriver, pull out the locking button as shown in the illustration to release the lock and disconnect the pretensioner connector.

      HINT:

      Tape the screwdriver tip before use.

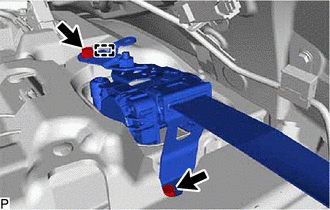

    3. Remove the 2 bolts.
      GTY808233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the guide to remove the rear seat outer belt assembly LH.
  20. REMOVE REAR SEAT OUTER BELT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  21. REMOVE REAR SEAT BELT RETRACTOR COVER LH

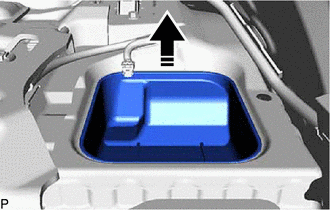

    1. Remove the rear seat belt retractor cover LH as shown in the illustration.
      GTY793732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  22. REMOVE REAR SEAT BELT RETRACTOR COVER RH

    HINT:

    Use the same procedure as for the LH side.
