Removal [06/2018 - ]: Procedure

  1. REMOVE CENTER STOP LIGHT SET

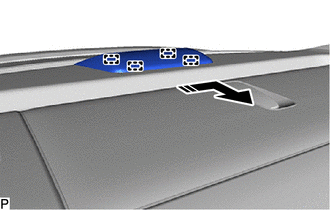

    1. Disengage the 4 guides as shown in the illustration.
      GTY810954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Disengage in this Direction

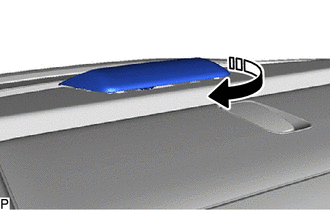

    2. Turn the center stop light set as shown in the illustration.
      GTY823562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Turn in this Direction

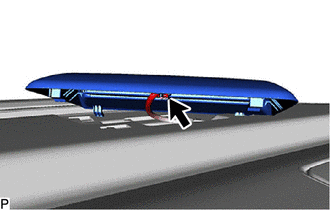

    3. Disconnect the connector to remove the center stop light set.
      GTY789616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
