Removal [08/2021 - ]: Procedure

  1. REMOVE FRONT DOOR SCUFF PLATE (for Side)

    Refer to PROCEDURE - Step 4 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 4 [09/2022 - ]

  2. REMOVE COWL SIDE TRIM BOARD (for Side)

    Refer to PROCEDURE - Step 5 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 5 [09/2022 - ]

  3. REMOVE FRONT DOOR OPENING TRIM COVER (for Side)

    Refer to PROCEDURE - Step 6 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 6 [09/2022 - ]

  4. REMOVE FRONT PILLAR GARNISH ASSEMBLY (for Side)

    Refer to PROCEDURE - Step 7 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 7 [09/2022 - ]

  5. REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY (for Side)

    Refer to PROCEDURE - Step 46 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 46 [09/2022 - ]

  6. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY (for Side)
    NOTE:

    Do not touch the speaker cone.

    1. Remove the 2 bolts.

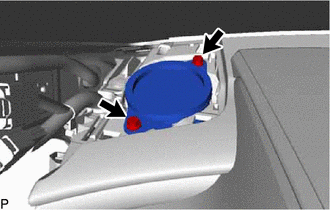

      GTY797645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Lift the front No. 2 speaker assembly and disconnect the connector to remove it.
  7. REMOVE NO. 3 INSTRUMENT CLUSTER FINISH PANEL GARNISH (for Center)

    Refer to PROCEDURE - Step 37 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 37 [09/2022 - ]

  8. REMOVE NO. 1 SPEAKER OPENING COVER ASSEMBLY (for Center)

    Refer to PROCEDURE - Step 38 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 38 [09/2022 - ]

  9. REMOVE FRONT NO. 3 SPEAKER ASSEMBLY (for Center)
    NOTE:

    Do not touch the speaker cone.

    1. Remove the 2 bolts.

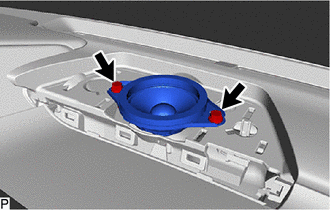

      GTY1087750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Lift the front No. 3 speaker assembly and disconnect the connector to remove it.
