Removal [09/2022 - ]: Procedure

  1. REMOVE INSTRUMENT PANEL REINFORCEMENT ASSEMBLY WITH AIR CONDITIONING UNIT (for Gasoline Model)

    Refer to REMOVAL [09/2022 - ]

  2. REMOVE INSTRUMENT PANEL REINFORCEMENT ASSEMBLY WITH AIR CONDITIONING UNIT (for HV Model)

    Refer to REMOVAL [09/2022 - ]

  3. REMOVE REAR SEAT ASSEMBLY

    Refer to REMOVAL [09/2022 - ]

  4. REMOVE FRONT DOOR SCUFF PLATE LH
    1. Disengage the claw as shown in the illustration.
      GTY811622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction

      HINT:

      Use the same procedure for the front side and rear side.

    2. Disengage the 8 claws and 2 guides to remove the front door scuff plate LH as shown in the illustration.
      GTY819815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  5. REMOVE COWL SIDE TRIM BOARD LH
    1. Remove the clip.
      GTY825926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disengage the claw and clip to remove the cowl side trim board LH as shown in the illustration.
  6. REMOVE FRONT DOOR OPENING TRIM COVER LH
    1. Disengage the 3 claws to remove the front door opening trim cover LH as shown in the illustration.
      GTY828037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  7. REMOVE FRONT PILLAR GARNISH ASSEMBLY LH

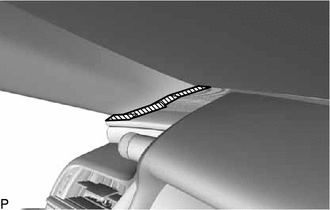

    1. Apply protective tape around the front pillar garnish assembly LH as shown in the illustration.
      GTY777805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Pull the upper part of the front pillar garnish assembly LH toward the inside of the cabin to disengage the clip and the front pillar garnish assembly LH from the base of the front pillar garnish clip.

      HINT:

      Let the front pillar garnish assembly LH hang from the front pillar garnish clip.

      GTY784133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Pillar Garnish Clip
      Remove in this Direction
    3. While pushing the tabs of the front pillar garnish clip as shown in the illustration, disengage it.
      GTY809735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Pillar Garnish Clip

      HINT:

      When the front pillar garnish clip cannot be disengaged easily:

      1. While pushing the tab of the front pillar garnish clip shown in the illustration with your finger, move the front pillar garnish clip in the direction shown in the illustration.
        GTY836242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Move in this Direction
      2. While pulling the front pillar garnish clip as shown in the illustration, push the tab of the front pillar garnish clip shown in the illustration with a screwdriver and disengage the front pillar garnish clip.
        GTY821901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Pull in this Direction

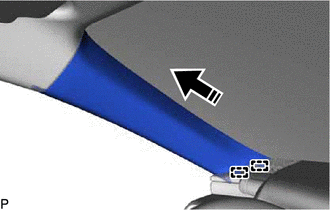

    4. Disengage the 2 guides to remove the front pillar garnish assembly LH as shown in the illustration.
      GTY776238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    5. Remove the front pillar garnish clip and clip from the front pillar garnish assembly LH.
    6. Protect the curtain shield airbag assembly LH.
      GTY781623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Curtain Shield Airbag Assembly LH
      *a Protective Cover
      *b Adhesive Tape
      1. Cover the curtain shield airbag assembly LH with a protective cover, such as a cloth, and secure the edges of the cover with tape as shown in the illustration.
        NOTE:

        Cover the curtain shield airbag assembly LH with a protective cover as soon as the front pillar garnish assembly LH is removed.

  8. REMOVE REAR DOOR SCUFF PLATE LH (for Gasoline Model)
    1. Disengage the claw as shown in the illustration.
      GTY793135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction
    2. Disengage the 6 claws and 2 guides to remove the rear door scuff plate LH as shown in the illustration.
      GTY798485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  9. REMOVE REAR DOOR SCUFF PLATE LH (for HV Model)
    1. Disengage the claw as shown in the illustration.
      GTY805104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction
    2. Disengage the 7 claws and 2 guides to remove the rear door scuff plate LH as shown in the illustration.
      GTY811239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  10. REMOVE CENTER PILLAR LOWER GARNISH LH
    1. Pull the center pillar lower garnish LH in the directions indicated by the arrows (1) shown in the illustration to disengage the 2 claws (A).
      GTY836669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Claw (A)
      *b Claw (B)
      Place Hand Here
      Remove in this Direction (1)
      Remove in this Direction (2)
    2. Pull the center pillar lower garnish LH in the direction indicated by the arrow (2) shown in the illustration to disengage the 3 claws (B).
    3. Disengage the 5 clips to remove the center pillar lower garnish LH as shown in the illustration.
      GTY790945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  11. REMOVE CENTER PILLAR UPPER GARNISH LH
    1. Using a clip remover, remove the 2 clips.
      GTY802409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide as shown in the illustration.
      GTY796327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction
    3. Disengage the clip and 2 guides as shown in the illustration.
      GTY801370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    4. Pass the anchor of the front seat outer belt assembly LH through the center pillar upper garnish LH and remove the center pillar upper garnish LH.
    5. Remove the clip from the center pillar upper garnish LH.
  12. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

  13. REMOVE COWL SIDE TRIM BOARD RH

    HINT:

    Use the same procedure as for the LH side.

  14. REMOVE FRONT DOOR OPENING TRIM COVER RH

    HINT:

    Use the same procedure as for the LH side.

  15. REMOVE FRONT PILLAR GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  16. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

  17. REMOVE CENTER PILLAR LOWER GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  18. REMOVE CENTER PILLAR UPPER GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  19. REMOVE REAR SEAT SIDE GARNISH LH
    1. Disengage the 5 claws and guide to remove the rear seat side garnish LH as shown in the illustration.
      GTY834409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  20. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH
    1. Disengage the 4 clips as shown in the illustration.
      GTY788245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

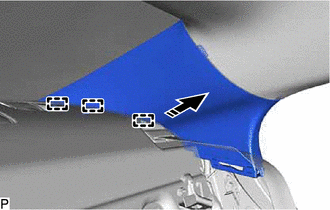

    2. Disengage the 3 guides to remove the roof side inner garnish assembly LH as shown in the illustration.
      GTY796023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    3. Remove the 4 clips from the roof side inner garnish assembly LH.
  21. REMOVE REAR SEAT SIDE GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  22. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  23. REMOVE MAP LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  24. REMOVE SPOT LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  25. REMOVE VANITY LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  26. REMOVE RAIN SENSOR COVER (w/ Rain Sensor)

    Refer to PROCEDURE - Step 1

  27. REMOVE RAIN SENSOR (w/ Rain Sensor)

    Refer to PROCEDURE - Step 2

  28. REMOVE SENSOR COVER (w/ Humidity Sensor)

    Refer to PROCEDURE - Step 1

  29. REMOVE AIR CONDITIONING THERMISTOR ASSEMBLY (w/ Humidity Sensor)

    Refer to PROCEDURE - Step 2

  30. REMOVE NO. 2 FORWARD RECOGNITION COVER

    Refer to PROCEDURE - Step 1

  31. REMOVE NO. 1 FORWARD RECOGNITION COVER

    Refer to PROCEDURE - Step 2

  32. REMOVE ASSIST GRIP ASSEMBLY

    HINT:

    Use the same procedure for all assist grip assemblies.

    1. Insert SST into the cutout of the assist grip cover LH as shown in the illustration.
      GTY838380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Cutout
      • SST: 09813-00010
      NOTE:

      To prevent the assist grip assembly from being damaged, make sure to insert SST straight into the cutout.

      HINT:

      Use the same procedure for the LH side and RH side.

    2. Pull SST as shown in the illustration to disengage the claw.
      NOTE:

      To prevent the assist grip assembly from being damaged, make sure to only pull SST as shown in the illustration.

      GTY787616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 30 to 45°
      Remove in this Direction

      HINT:

      • Use the same procedure for the claw on the other side of the assist grip cover LH.
      • Use the same procedure for the LH side and RH side.
    3. Remove the assist grip cover LH.

      HINT:

      Use the same procedure for the LH side and RH side.

    4. Disengage the 2 clips as shown in the illustration to remove the assist grip assembly.
      GTY805535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    5. Remove the 2 clips from the vehicle body.
  33. REMOVE REAR ASSIST GRIP ASSEMBLY LH

    HINT:

    Use the same procedure as for the assist grip assembly.

  34. REMOVE REAR ASSIST GRIP ASSEMBLY RH

    HINT:

    Use the same procedure as for the assist grip assembly.

  35. REMOVE VISOR BRACKET COVER (for LH Side)
    1. Disengage the 4 claws and remove the visor bracket cover.
      GTY806973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. REMOVE VISOR ASSEMBLY LH
    1. Remove the 2 screws.
      GTY806974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

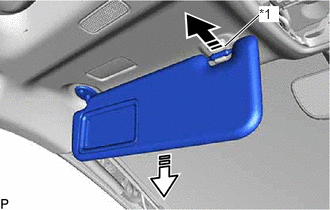

    2. Pull the visor assembly LH in the direction indicated by the arrow (1) shown in the illustration to disconnect it from the visor holder.
      GTY783140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Visor Holder
      Remove in this Direction (1)
      Remove in this Direction (2)
    3. Pull the visor assembly LH in the direction indicated by the arrow (2) shown in the illustration to remove it.
  37. REMOVE VISOR HOLDER (for LH Side)
    1. Turn the visor holder approximately 45° and remove it as shown in the illustration.
      GTY830961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 45°
      Remove in this Direction (1)
      Remove in this Direction (2)
    2. Disengage the 2 claws to remove the base of the visor holder.
      GTY796838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Base of Visor Holder
  38. REMOVE VISOR BRACKET COVER (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  39. REMOVE VISOR ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  40. REMOVE VISOR HOLDER (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  41. REMOVE FRONT DOOR SUB-ASSEMBLY RH
    1. Disengage the 4 claws to separate the grommet.
      GTY823950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector.
    3. Remove the 5 bolts and front door sub-assembly RH.
      GTY823949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      To prevent damage, when removing the front door sub-assembly RH, make sure that there are enough people available to hold it securely.

  42. REMOVE ROOF HEADLINING ASSEMBLY
    1. for Windshield Glass Side:
      1. Disconnect each connector.
    2. for Front Pillar LH Side:
      1. Remove the protective cover.
      2. Using a clip remover, disengage the 2 clamps.
        GTY806978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Install the protective cover.
    3. for Front Pillar RH Side:
      1. Remove the protective cover.
      2. Using a clip remover, disengage the 2 clamps.
        GTY806979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Disengage each claw.
      4. Install the protective cover.
    4. for Rear Pillar LH Side:
      1. Disconnect the connector.
        GTY806976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disengage the clamp.
    5. for Rear Pillar RH Side:
      1. Disconnect each connector.
        GTY806977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disengage the clamp.
    6. for Roof Side (for Moon Roof):
      1. Disconnect the connector.
        GTY806988Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disengage the 12 claws, 3 clips and 8 fasteners.
      3. Slide the roof headlining assembly to disengage it from the guide as shown in the illustration.
        GTY809448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Remove in this Direction - -
    7. for Roof Side (for Panoramic Moon Roof):
      1. Disconnect the connector.
        GTY806994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disengage the 12 claws, 3 clips and 14 fasteners.
      3. Slide the roof headlining assembly to disengage it from the guide as shown in the illustration.
        GTY837881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Remove in this Direction - -
    8. Remove the roof headlining assembly from the vehicle through the front door RH as shown in the illustration.
      GTY779509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      NOTE:

      Do not damage the roof headlining assembly or vehicle interior.

scientia non olet · About LEMON Manuals
