Removal [08/2021 - 09/2022]: Procedure

  1. REMOVE REAR SEAT ASSEMBLY

    Refer to REMOVAL [08/2021 - 09/2022]

  2. REMOVE REAR DOOR SCUFF PLATE LH (for HV Model)

    Refer to PROCEDURE - Step 9

  3. REMOVE REAR DOOR SCUFF PLATE LH (for Gasoline Model)

    Refer to PROCEDURE - Step 8

  4. REMOVE REAR DOOR SCUFF PLATE RH (for HV Model)

    HINT:

    Use the same procedure as for the LH side.

  5. REMOVE REAR DOOR SCUFF PLATE RH (for Gasoline Model)

    HINT:

    Use the same procedure as for the LH side.

  6. REMOVE REAR SEAT SIDE GARNISH LH

    Refer to PROCEDURE - Step 19

  7. REMOVE REAR SEAT SIDE GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  8. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH

    Refer to PROCEDURE - Step 20

  9. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  10. DISCONNECT REAR SEAT OUTER BELT ASSEMBLY LH

    Refer to PROCEDURE - Step 10

  11. DISCONNECT REAR SEAT OUTER BELT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  12. REMOVE CENTER STOP LIGHT SET (w/o Rear Sunshade)

    Refer to PROCEDURE - Step 1

  13. REMOVE REAR SEAT SHOULDER BELT COVER

    Refer to PROCEDURE - Step 13

  14. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/o Rear Sunshade)

    Refer to PROCEDURE - Step 17

  15. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Rear Sunshade)

    Refer to PROCEDURE - Step 18

  16. REMOVE BLIND SPOT MONITOR BUZZER

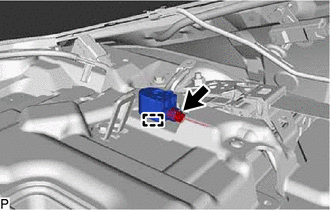

    1. Disengage the clamp.
      GTY789317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the blind spot monitor buzzer.
