Removal [06/2018 - ]: Procedure

  1. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 4 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 4 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 4 [09/2022 - ]

  2. REMOVE COWL SIDE TRIM BOARD LH

    Refer to PROCEDURE - Step 5 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 5 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 5 [09/2022 - ]

  3. REMOVE FRONT DOOR OPENING TRIM COVER LH

    Refer to PROCEDURE - Step 6 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 6 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 6 [09/2022 - ]

  4. REMOVE INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 14 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 14 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 14 [09/2022 - ]

  5. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 15 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 15 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 15 [09/2022 - ]

  6. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 16 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 16 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 16 [09/2022 - ]

  7. REMOVE NO. 1 CLEARANCE WARNING BUZZER
    1. Disengage the clamp.

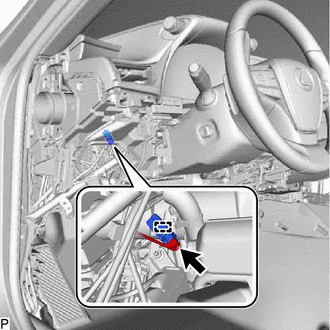

      GTY822289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the No. 1 clearance warning buzzer.
