Removal [06/2018 - 08/2020]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch (for Gasoline Model) or power switch (for HV Model) off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

  2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    for 2GR-FKS:

    Refer to PROCEDURE - Step 1

    for A25A-FXS:

    Refer to PROCEDURE - Step 1

  3. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL

    Refer to PROCEDURE - Step 3

  4. REMOVE REAR DOOR TRIM UPPER PAD

    Refer to PROCEDURE - Step 5

  5. REMOVE COURTESY LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  6. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7

  7. REMOVE REAR SIDE CURTAIN ASSEMBLY (w/ Rear Door Sunshade)

    Refer to PROCEDURE - Step 16

  8. REMOVE REAR DOOR SERVICE HOLE COVER

    Refer to PROCEDURE - Step 18

  9. REMOVE REAR DOOR NO. 2 SERVICE HOLE COVER

    Refer to PROCEDURE - Step 20

  10. REMOVE REAR DOOR NO. 2 VENT SEAL

    Refer to PROCEDURE - Step 21

  11. REMOVE REAR DOOR PANEL PROTECTOR

    Refer to PROCEDURE - Step 22

  12. REMOVE REAR DOOR GLASS RUN

    Refer to PROCEDURE - Step 26

  13. DISCONNECT REAR DOOR WEATHERSTRIP

    Refer to PROCEDURE - Step 13

  14. REMOVE REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY

    Refer to PROCEDURE - Step 27

  15. REMOVE REAR DOOR QUARTER WINDOW GLASS SUB-ASSEMBLY

    Refer to PROCEDURE - Step 28

  16. REMOVE REAR DOOR GLASS SUB-ASSEMBLY

    Refer to PROCEDURE - Step 29

  17. REMOVE REAR DOOR BELT MOULDING ASSEMBLY

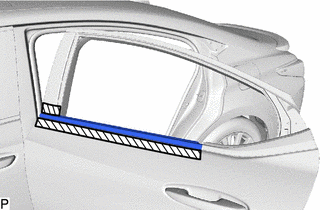

    1. Apply protective tape around the rear door belt moulding assembly as shown in the illustration.
      GTY792686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

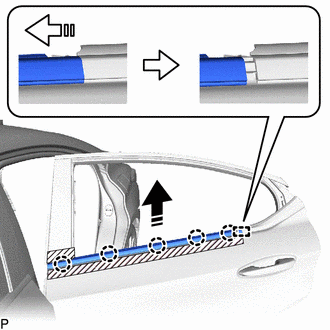

    2. Disengage the 5 claws and guide to remove the rear door belt moulding assembly as shown in the illustration.
      GTY813264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
  18. REMOVE REAR DOOR BELT MOULDING SUB-ASSEMBLY

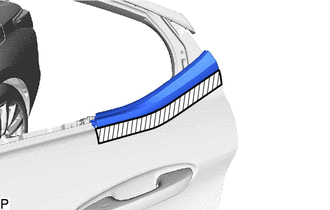

    1. Apply protective tape around the rear door belt moulding sub-assembly as shown in the illustration.
      GTY821110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

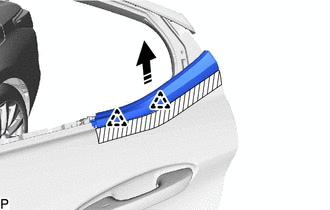

    2. Disengage the 2 clips and remove the rear door belt moulding sub-assembly as shown in the illustration.
      GTY794011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
