Removal [08/2021 - 09/2022]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [08/2021 - 09/2022]

  2. REMOVE FRONT RADIATOR SIDE AIR GUIDE PLATE LH

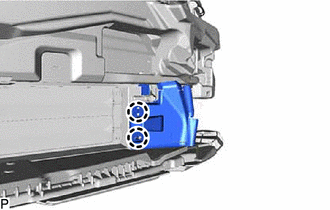

    1. Disengage the 2 claws to remove the front radiator side air guide plate LH.
      GTY1086093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE FRONT RADIATOR SIDE AIR GUIDE PLATE RH

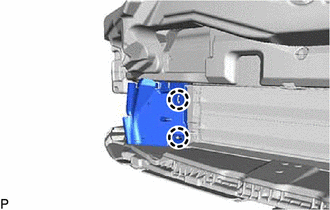

    1. Disengage the 2 claws to remove the front radiator side air guide plate RH.
      GTY1085852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE THERMISTOR ASSEMBLY

    Refer to PROCEDURE - Step 4

  5. REMOVE RADIATOR SHUTTER SUB-ASSEMBLY

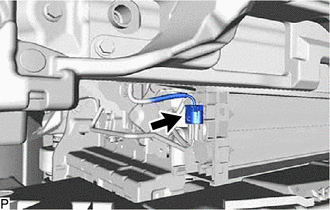

    1. Disconnect the connector.
      GTY1085951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

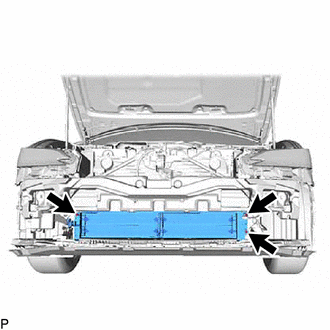

    2. Remove the 3 bolts.
      GTY1085162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

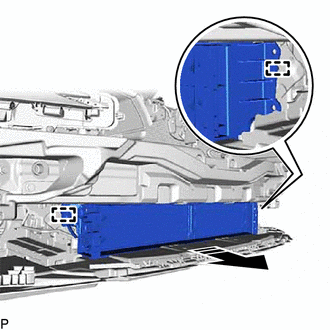

    3. Disengage the 2 guides to remove the radiator shutter sub-assembly as shown in the illustration.
      GTY1085196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
