Removal [08/2021 - 09/2022]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [08/2021 - 09/2022]

  2. REMOVE FRONT RADIATOR SIDE AIR GUIDE PLATE RH (w/o Grille Shutter)
    1. Disengage the 2 claws to remove the front radiator side air guide plate RH.

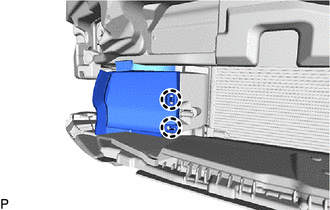

      GTY1087872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE THERMISTOR ASSEMBLY (w/o Grille Shutter)
    1. Disengage the clamp.
      GTY789962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the thermistor assembly.
  4. REMOVE THERMISTOR ASSEMBLY (w/ Grille Shutter)
    1. Disengage the clamp.

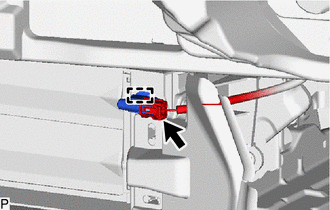

      GTY1087870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the thermistor assembly.
