Removal [06/2018 - 08/2021]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [06/2018 - 08/2021]

  2. REMOVE FRONT RADIATOR SIDE AIR GUIDE PLATE LH

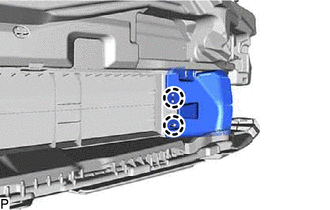

    1. Disengage the 2 claws to remove the front radiator side air guide plate LH.
      GTY813736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE FRONT RADIATOR SIDE AIR GUIDE PLATE RH

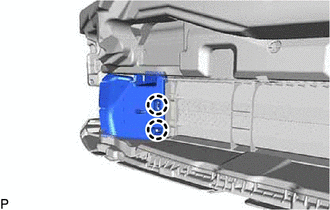

    1. Disengage the 2 claws to remove the front radiator side air guide plate RH.
      GTY813737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE THERMISTOR ASSEMBLY

    Refer to PROCEDURE - Step 5

  5. REMOVE RADIATOR SHUTTER SUB-ASSEMBLY

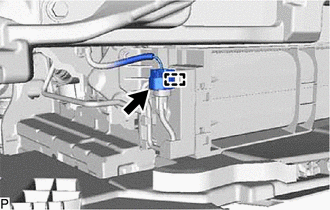

    1. Disconnect the connector.
      GTY835768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.

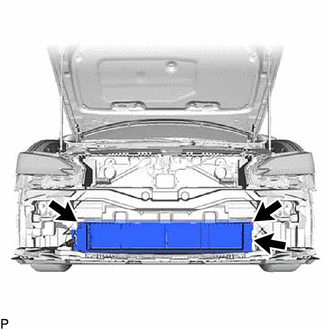

    3. Remove the 3 bolts.
      GTY813877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

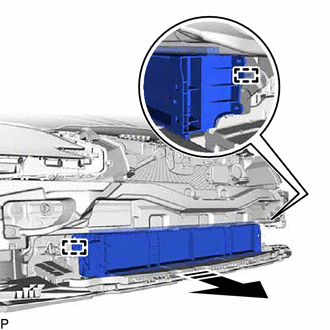

    4. Disengage the 2 guides to remove the radiator shutter sub-assembly as shown in the illustration.
      GTY785111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
