Removal [06/2018 - 08/2021]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [06/2018 - 08/2021]

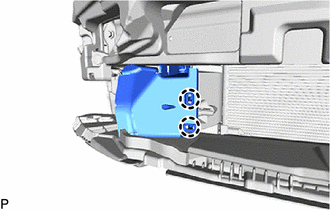

  2. REMOVE FRONT RADIATOR SIDE AIR GUIDE PLATE (w/o Grille Shutter)
    1. Disengage the 2 claws to remove the front radiator side air guide plate.
      GTY830522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

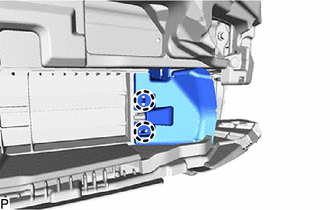

  3. REMOVE FRONT RADIATOR SIDE AIR GUIDE PLATE LH (w/ Grille Shutter)
    1. Disengage the 2 claws to remove the front radiator side air guide plate LH.
      GTY789964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

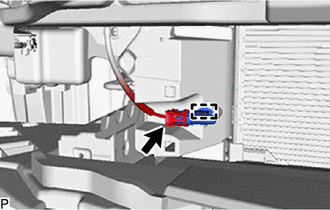

  4. REMOVE THERMISTOR ASSEMBLY (w/o Grille Shutter)
    1. Disengage the clamp.
      GTY789962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the thermistor assembly.

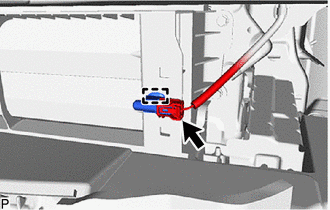

  5. REMOVE THERMISTOR ASSEMBLY (w/ Grille Shutter)
    1. Disengage the clamp.
      GTY830523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the thermistor assembly.
