Terminals Of Ecu [10/2019 - 08/2021]

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
GTY588386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Before the following operations are conducted, take precautions to prevent electric shock by turning the power switch off, wearing insulated gloves, and removing the service plug grip from HV battery.
    • Inspecting the high-voltage system
    • Disconnecting the low voltage connector of the inverter with converter assembly and rear hybrid motor control inverter assembly*
    • Disconnecting the low voltage connector of the HV battery
      1. *: for AWD
  2. To prevent electric shock, make sure to remove the service plug grip to cut off the high voltage circuit before servicing the vehicle.
    GTY687067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. After removing the service plug grip, put it in your pocket to prevent other technicians from accidentally reconnecting it while you are working on the high-voltage system.
    GTY703958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. After removing the service plug grip, wait for at least 10 minutes before touching any of the high-voltage connectors or terminals.
    GTY788417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Without waiting for 10 minutes

    HINT:

    • Waiting for at least 10 minutes is required to discharge the high-voltage capacitor inside the inverter with converter assembly rear hybrid motor control inverter assembly*.
      1. *: for AWD
NOTE:
  • After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Refer to PRECAUTION [10/2018 - 07/2022]

  • Before measuring the resistance of the CAN bus, turn the power switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) auxiliary battery terminal and leave the vehicle for 1 minute or more before measuring the resistance.
  • This information describes the standard values for all CAN related components.

HINT:

  1. NO. 1 CAN JUNCTION CONNECTOR
    1. Check the No. 1 CAN junction connector.
      1. Connection diagram

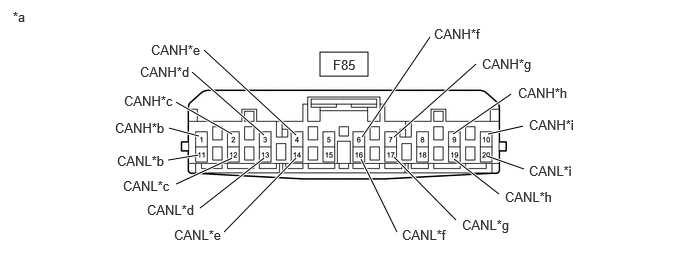

        Fig 1: No. 1 CAN Junction Connector Terminal Identification
        GTY832671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Front view of wire harness connector
        (to No. 1 CAN Junction Connector)        		 *b to No. 6 CAN Junction Connector
        *c to No. 1 Headlight ECU Sub-assembly RH
        (w/ Automatic Headlight Beam Level Control System)        		 *d to No. 1 Headlight ECU Sub-assembly LH
        (w/ Automatic Headlight Beam Level Control System)
        *e to Main Body ECU (Multiplex Network Body ECU) *f to Meter Mirror Sub-assembly
        (w/ Headup Display)
        *g to No. 9 CAN Junction Connector *h to Multiplex Tilt and Telescopic ECU
        (for Power Tilt and Power Telescopic Steering Column)
        *i to Outer Mirror Control ECU Assembly RH
        (w/ Seat Position Memory System)        		 - -
      2. Check the connection diagram of the components which are connected to the No. 1 CAN junction connector.
        Terminal No. (Symbol) Wiring Color Connected to
        F85-1 (CANH) R No. 6 CAN junction connector
        (for Bus 5)
        F85-11 (CANL) W
        F85-2 (CANH) V No. 1 headlight ECU sub-assembly RH*4
        (for Bus 5)
        F85-12 (CANL) W
        F85-3 (CANH) G No. 1 headlight ECU sub-assembly LH*4
        (for Bus 5)
        F85-13 (CANL) W
        F85-4 (CANH) L Main body ECU (multiplex network body ECU)
        (for Bus 5)
        F85-14 (CANL) W
        F85-6 (CANH) B Meter mirror sub-assembly*1
        (for Bus 5)
        F85-16 (CANL) W
        F85-7 (CANH) SB No. 9 CAN junction connector
        (for Bus 5)
        F85-17 (CANL) W
        F85-9 (CANH) BE Multiplex tilt and telescopic ECU*2
        (for Bus 5)
        F85-19 (CANL) W
        F85-10 (CANH) P Outer mirror control ECU assembly RH*3
        (for Bus 5)
        F85-20 (CANL) W
        1. *1: w/ Headup Display
        2. *2: for Power Tilt and Power Telescopic Steering Column
        3. *3: w/ Seat Position Memory System
        4. *4: w/ Automatic Headlight Beam Level Control System
  2. NO. 2 CAN JUNCTION CONNECTOR
    1. Check the No. 2 CAN junction connector.
      1. Connection diagram

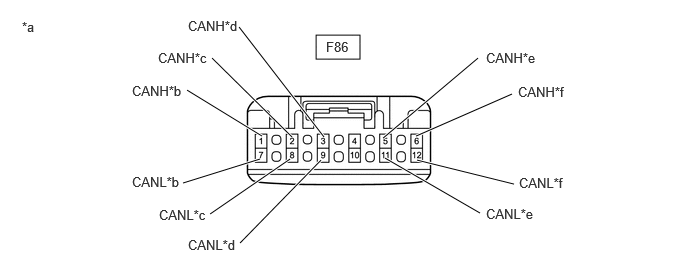

        Fig 2: No. 2 Can Junction Connector Terminal Identification
        GTY810056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Front view of wire harness connector
        (to No. 2 CAN Junction Connector)        		 *b to No. 8 CAN Junction Connector
        *c to Central Gateway ECU (Network Gateway ECU) *d to Clearance Warning ECU Assembly
        (w/ Parking Support Alert System)
        *e to Forward Recognition Camera *f to Millimeter Wave Radar Sensor Assembly
      2. Check the connection diagram of the components which are connected to the No. 2 CAN junction connector.
        Terminal No. (Symbol) Wiring Color Connected to
        F86-1 (CANH) R No. 8 CAN junction connector
        (for Bus 1)
        F86-7 (CANL) W
        F86-2 (CANH) L Central gateway ECU (network gateway ECU)
        (for Bus 1)
        F86-8 (CANL) W
        F86-3 (CANH) G Clearance warning ECU assembly*1
        (for Bus 1)
        F86-9 (CANL) W
        F86-5 (CANH) BE Forward recognition camera
        (for Bus 1)
        F86-11 (CANL) W
        F86-6 (CANH) P Millimeter wave radar sensor assembly
        (for Bus 1)
        F86-12 (CANL) W
        1. *1: w/ Parking Support Alert System
  3. NO. 3 CAN JUNCTION CONNECTOR
    1. Check the No. 3 CAN junction connector.
      1. Connection diagram

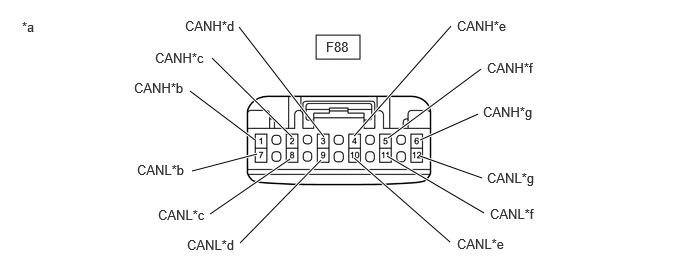

        Fig 3: No. 3 Can Junction Connector Terminal Identification
        GTY968483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Front view of wire harness connector
        (to No. 3 CAN Junction Connector)        		 *b to No. 6 CAN Junction Connector
        *c to Central Gateway ECU (Network Gateway ECU) *d to Rear Hybrid Motor Control Inverter Assembly
        (for AWD)
        *e to Inverter with Converter Assembly *f to Vehicle Approaching Speaker Controller
        *g to Brake Booster with Master Cylinder Assembly - -
      2. Check the connection diagram of the components which are connected to the No. 3 CAN junction connector.
        Terminal No. (Symbol) Wiring Color Connected to
        F88-1 (CANH) LG No. 6 CAN junction connector
        (for Bus 2)
        F88-7 (CANL) W
        F88-2 (CANH) V Central gateway ECU (network gateway ECU)
        (for Bus 2)
        F88-8 (CANL) W
        F88-3 (CANH) BE Rear hybrid Motor control inverter assembly*1
        (for Bus 2)
        F88-9 (CANL) W
        F88-4 (CANH) B Inverter with converter assembly
        (for Bus 2)
        F88-10 (CANL) W
        F88-5 (CANH) P Vehicle approaching speaker controller
        (for Bus 2)
        F88-11 (CANL) W
        F88-6 (CANH) G Brake booster with master cylinder assembly
        (for Bus 2)
        F88-12 (CANL) W
        1. *1: for AWD
  4. NO. 4 CAN JUNCTION CONNECTOR
    1. Check the No. 4 CAN junction connector.
      1. Connection diagram

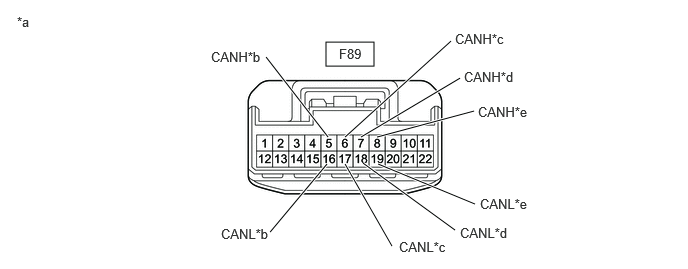

        Fig 4: No. 4 CAN Junction Connector Terminal Identification
        GTY827735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Front view of wire harness connector
        (to No. 4 CAN Junction Connector)        		 *b to No. 7 CAN Junction Connector
        *c to Airbag ECU Assembly *d to Power Steering ECU with Motor Assembly
        *e to Steering Sensor - -
      2. Check the connection diagram of the components which are connected to the No. 4 CAN junction connector.
        Terminal No. (Symbol) Wiring Color Connected to
        F89-5 (CANH) B No. 7 CAN junction connector
        (for Bus 4)
        F89-16 (CANL) W
        F89-6 (CANH) R Airbag ECU assembly
        (for Bus 4)
        F89-17 (CANL) G
        F89-7 (CANH) P Power steering ECU with motor assembly
        (for Bus 4)
        F89-18 (CANL) W
        F89-8 (CANH) BE Steering sensor
        (for Bus 4)
        F89-19 (CANL) W
  5. NO. 5 CAN JUNCTION CONNECTOR
    1. Check the No. 5 CAN junction connector.
      1. Connection diagram
        Fig 5: No. 5 CAN Junction Connector Terminal Identification
        GTY777189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Front view of wire harness connector
        (to No. 5 CAN Junction Connector)        		 *b to Central Gateway ECU (Network Gateway ECU)
      2. Check the connection diagram of the components which are connected to the No. 5 CAN junction connector.
        Terminal No. (Symbol) Wiring Color Connected to
        F91-1 (CANH) R Central gateway ECU (network gateway ECU)
        (for Bus 3)
        F91-12 (CANL) W
        F91-2 (CANH) LG Central gateway ECU (network gateway ECU)
        (for Bus 3)
        F91-13 (CANL) W
    2. Check the No. 5 CAN junction connector.
      1. Connection diagram
        GTY777160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Front view of wire harness connector
        (to No. 5 CAN Junction Connector)        		 *b to Radio Receiver Assembly
        *c to DCM (Telematics Transceiver)
        (for Lexus Enform)        		 *d to Stereo Component Equalizer Assembly
        (w/ ASC System)
      2. Check the connection diagram of the components which are connected to the No. 5 CAN junction connector.
        Terminal No. (Symbol) Wiring Color Connected to
        F92-8 (CANH) LG Radio receiver assembly
        (for Bus 3)
        F92-19 (CANL) W
        F92-9 (CANH) P DCM (telematics transceiver)*1
        (for Bus 3)
        F92-20 (CANL) W
        F92-10 (CANH) SB Stereo component equalizer assembly*2
        (for Bus 3)
        F92-21 (CANL) W
        1. *1: for Lexus Enform
        2. *2: w/ ASC System
  6. NO. 6 CAN JUNCTION CONNECTOR
    1. Check the No. 6 CAN junction connector.
      1. Connection diagram

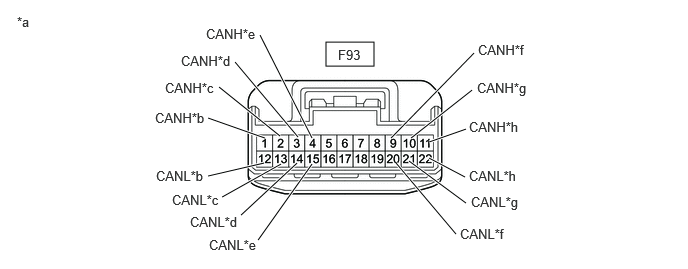

        Fig 6: No. 6 CAN Junction Connector Terminal Identification
        GTY827728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Front view of wire harness connector
        (to No. 6 CAN Junction Connector)        		 *b to No. 1 CAN Junction Connector
        *c to Air Conditioning Amplifier Assembly *d to Central Gateway ECU (Network Gateway ECU)
        *e to Certification ECU (Smart Key ECU Assembly) *f to No. 3 CAN Junction Connector
        *g to ECM *h to Hybrid Vehicle Control ECU
      2. Check the connection diagram of the components which are connected to the No. 6 CAN junction connector.
        Terminal No. (Symbol) Wiring Color Connected to
        F93-1 (CANH) R No. 1 CAN junction connector
        (for Bus 5)
        F93-12 (CANL) W
        F93-2 (CANH) GR Air conditioning amplifier assembly
        (for Bus 5)
        F93-13 (CANL) W
        F93-3 (CANH) SB Central gateway ECU (network gateway ECU)
        (for Bus 5)
        F93-14 (CANL) W
        F93-4 (CANH) B Certification ECU (smart key ECU assembly)
        (for Bus 5)
        F93-15 (CANL) W
        F93-9 (CANH) LG No. 3 CAN junction connector
        (for Bus 2)
        F93-20 (CANL) W
        F93-10 (CANH) V ECM
        (for Bus 2)
        F93-21 (CANL) W
        F93-11 (CANH) L Hybrid vehicle control ECU
        (for Bus 2)
        F93-22 (CANL) W
  7. NO. 7 CAN JUNCTION CONNECTOR
    1. Check the No. 7 CAN junction connector.
      1. Connection diagram

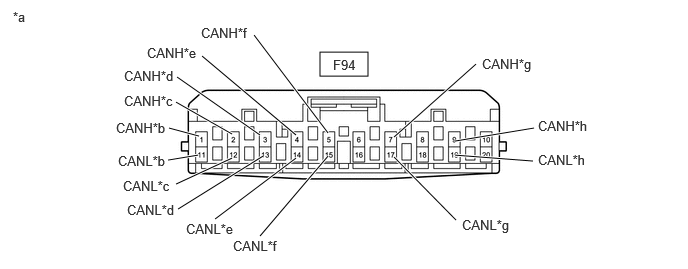

        Fig 7: No. 7 CAN Junction Connector Terminal Identification
        GTY799824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Front view of wire harness connector
        (to No. 7 CAN Junction Connector)        		 *b to No. 4 CAN Junction Connector
        *c to Central Gateway ECU (Network Gateway ECU) *d to Hybrid Vehicle Control ECU
        *e to Tire Pressure ECU and Receiver *f to ECM
        *g to Brake Booster with Master Cylinder Assembly *h to Brake Actuator Assembly
      2. Check the connection diagram of the components which are connected to the No. 7 CAN junction connector.
        Terminal No. (Symbol) Wiring Color Connected to
        F94-1 (CANH) B No. 4 CAN junction connector
        (for Bus 4)
        F94-11 (CANL) W
        F94-2 (CANH) LG Central gateway ECU (network gateway ECU)
        (for Bus 4)
        F94-12 (CANL) W
        F94-3 (CANH) G Hybrid vehicle control ECU
        (for Bus 4)
        F94-13 (CANL) W
        F94-4 (CANH) L Tire pressure ECU and receiver
        (for Bus 4)
        F94-14 (CANL) W
        F94-5 (CANH) P ECM
        (for Bus 4)
        F94-15 (CANL) W
        F94-7 (CANH) SB Brake booster with master cylinder assembly
        (for Bus 4)
        F94-17 (CANL) W
        F94-9 (CANH) GR Brake actuator assembly
        (for Bus 4)
        F94-19 (CANL) W
  8. NO. 8 CAN JUNCTION CONNECTOR
    1. Check the No. 8 CAN junction connector.
      1. Connection diagram

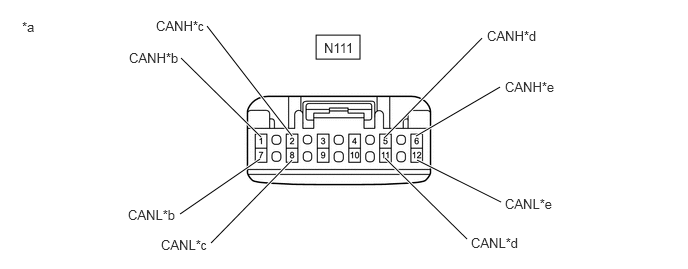

        Fig 8: No. 8 CAN Junction Connector Terminal Identification
        GTY810023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Front view of wire harness connector
        (to No. 8 CAN Junction Connector)        		 *b to No. 2 CAN Junction Connector
        *c to Rear Television Camera Assembly *d to Blind Spot Monitor Sensor LH
        (w/ Blind Spot Monitor System)
        *e to No. 2 CAN Junction Terminal - -
      2. Check the connection diagram of the components which are connected to the No. 8 CAN junction connector.
        Terminal No. (Symbol) Wiring Color Connected to
        N111-1 (CANH) R No. 2 CAN junction connector
        (for Bus 1)
        N111-7 (CANL) W
        N111-2 (CANH) Y Rear television camera assembly
        (for Bus 1)
        N111-8 (CANL) W
        N111-5 (CANH) P Blind spot monitor sensor LH*1
        (for Bus 1)
        N111-11 (CANL) W
        N111-6 (CANH) B No. 2 CAN junction terminal
        (for Bus 1)
        N111-12 (CANL) W
        1. *1: w/ Blind Spot Monitor System
  9. NO. 9 CAN JUNCTION CONNECTOR
    1. Check the No. 9 CAN junction connector.
      1. Connection diagram

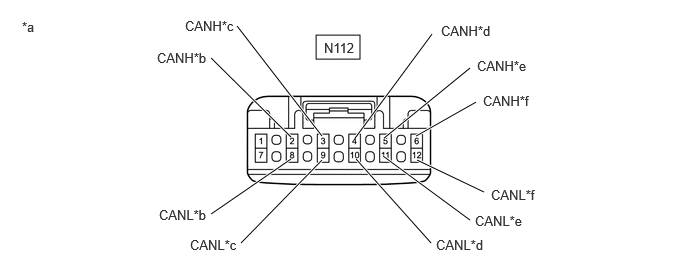

        Fig 9: No. 9 CAN Junction Connector Terminal Identification
        GTY810020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Front view of wire harness connector
        (to No. 9 CAN Junction Connector)        		 *b to Combination Meter Assembly
        *c to Multiplex Network Door ECU
        (w/ Power Back Door)        		 *d to No. 1 CAN Junction Connector
        *e to Position Control ECU Assembly LH
        (w/ Seat Position Memory System)        		 *f Outer Mirror Control ECU Assembly LH
        (w/ Seat Position Memory System)
      2. Check the connection diagram of the components which are connected to the No. 9 CAN junction connector.
        Terminal No. (Symbol) Wiring Color Connected to
        N112-2 (CANH) P Combination meter assembly
        (for Bus 5)
        N112-8 (CANL) W
        N112-3 (CANH) B Multiplex network door ECU*1
        (for Bus 5)
        N112-9 (CANL) W
        N112-4 (CANH) SB No. 1 CAN junction connector
        (for Bus 5)
        N112-10 (CANL) W
        N112-5 (CANH) V Position control ECU assembly LH*2
        (for Bus 5)
        N112-11 (CANL) W
        N112-6 (CANH) P Outer mirror control ECU assembly LH*2
        (for Bus 5)
        N112-12 (CANL) W
        1. *1: w/ Power Back Door
        2. *2: w/ Seat Position Memory System
  10. NO. 2 CAN JUNCTION TERMINAL
    1. Check the No. 2 CAN junction terminal.
      1. Connection diagram
        GTY838154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Front view of wire harness connector
        (to No. 2 CAN Junction Terminal)        		 *b to No. 8 CAN Junction Connector
      2. Check the connection diagram of the components which are connected to the No. 2 CAN junction terminal.
        Terminal No. (Symbol) Wiring Color Connected to
        N96-3 (CANH) B No. 8 CAN junction connector
        (for Bus 1)
        N96-2 (CANL) W
  11. DLC3
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Measure the resistance according to the value(s) in the table below.
      Fig 10: DLC3 Terminal Identification
      GTY825838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -

      Standard Resistance

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      F58-6 (CANH) - F58-14 (CANL) V - P HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      F58-6 (CANH) - F58-4 (CG) V - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F58-14 (CANL) - F58-4 (CG) P - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F58-6 (CANH) - F58-16 (BAT) V - V HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      F58-14 (CANL) - F58-16 (BAT) P - V LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
  12. CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

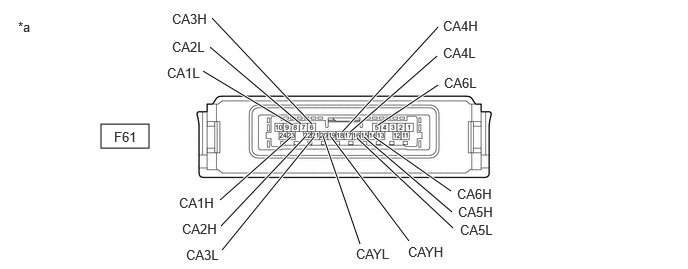

    Fig 11: Central Gateway ECU (Network Gateway ECU) Terminal Identification
    GTY819735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Component without harness connected
    (Central Gateway ECU (Network Gateway ECU))    		 - -
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the F61 central gateway ECU (network gateway ECU) connector.
    3. Measure the resistance according to the value(s) in the table below.

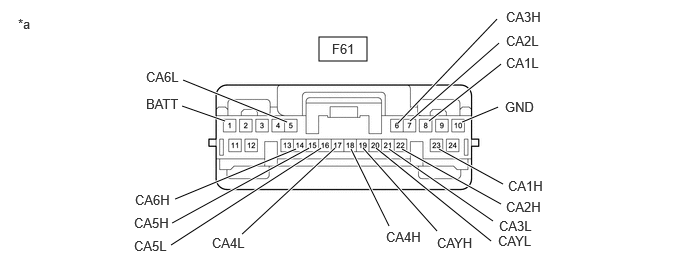

      GTY837148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Central Gateway ECU (Network Gateway ECU))      		 - -

      Standard Resistance

      DIAGNOSIS BUS BRANCH LINES (DLC3 - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      F61-14 (CA6H) - F61-5 (CA6L) V - P HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 1 MΩ or higher
      F61-14 (CA6H) - F61-10 (GND) V - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F61-5 (CA6L) - F61-10 (GND) P - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F61-14 (CA6H) - F61-1 (BATT) V - P HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      F61-5 (CA6L) - F61-1 (BATT) P - P LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      BUS 1 MAIN LINES

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      F61-23 (CA1H) - F61-8 (CA1L) L - W HIGH-level CAN bus line - HIGH-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
      F61-23 (CA1H) - F61-10 (GND) L - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F61-8 (CA1L) - F61-10 (GND) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F61-23 (CA1H) - F61-1 (BATT) L - P HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      F61-8 (CA1L) - F61-1 (BATT) W - P LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      BUS 2 MAIN LINES

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      F61-18 (CA4H) - F61-17 (CA4L) V - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
      F61-18 (CA4H) - F61-10 (GND) V - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F61-17 (CA4L) - F61-10 (GND) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F61-18 (CA4H) - F61-1 (BATT) V - P HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      F61-17 (CA4L) - F61-1 (BATT) W - P LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      BUS 3 MAIN LINES

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      F61-6 (CA3H) - F61-19 (CAYH) R - LG HIGH-level CAN bus line - HIGH-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω
      F61-21 (CA3L) - F61-20 (CAYL) W - W LOW-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω
      F61-6 (CA3H) - F61-10 (GND) R - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F61-21 (CA3L) - F61-10 (GND) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F61-6 (CA3H) - F61-1 (BATT) R - P HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      F61-21 (CA3L) - F61-1 (BATT) W - P LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      BUS 4 MAIN LINES

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      F61-22 (CA2H) - F61-7 (CA2L) LG - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
      F61-22 (CA2H) - F61-10 (GND) LG - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F61-7 (CA2L) - F61-10 (GND) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F61-22 (CA2H) - F61-1 (BATT) LG - P HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      F61-7 (CA2L) - F61-1 (BATT) W - P LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      BUS 5 MAIN LINES

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      F61-15 (CA5H) - F61-16 (CA5L) SB - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
      F61-15 (CA5H) - F61-10 (GND) SB - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F61-16 (CA5L) - F61-10 (GND) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F61-15 (CA5H) - F61-1 (BATT) SB - P HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      F61-16 (CA5L) - F61-1 (BATT) W - P LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
  13. STEERING SENSOR

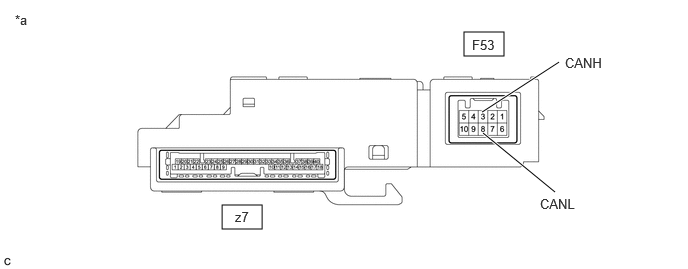

    Fig 12: Steering Sensor Terminal Identification
    GTY781959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Component without harness connected
    (Steering Sensor)    		 - -
    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the F53 steering sensor connector.
    3. Measure the resistance according to the value(s) in the table below.
      GTY781874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Steering Sensor)

      Standard Resistance

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      F53-3 (CANH) - F53-8 (CANL) BE - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      F53-3 (CANH) - F53-6 (ESS) BE - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F53-8 (CANL) - F53-6 (ESS) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F53-3 (CANH) - F53-4 (BAT) BE - W HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      F53-8 (CANL) - F53-4 (BAT) W - W LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
  14. ECM

    Refer to Terminals of ECU.

    Refer to TERMINALS OF ECM [10/2018 - ]

    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the A36 ECM connector.
    3. Measure the resistance according to the value(s) in the table below.
      Fig 13: ECM Terminal Identification

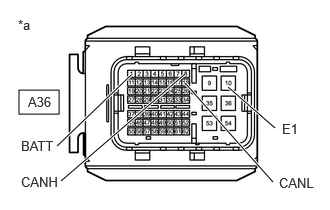

      GTY831071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to ECM)

      Standard Resistance

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      A36-8 (CANH) - A36-18 (CANL) V - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
      A36-8 (CANH) - A36-10 (E1) V - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A36-18 (CANL) - A36-10 (E1) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A36-8 (CANH) - A36-1 (BATT) V - G HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      A36-18 (CANL) - A36-1 (BATT) W - G LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
  15. COMBINATION METER ASSEMBLY

    Refer to Terminals of ECU.

    Refer to TERMINALS OF ECU [10/2019 - 07/2022]

    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the F23 combination meter assembly connector.
    3. Measure the resistance according to the value(s) in the table below.
      Fig 14: Combination Meter Assembly Terminal Identification
      GTY796680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Combination Meter Assembly)

      Standard Resistance

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      F23-29 (CANH) - F23-30 (CANL) P - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
      F23-29 (CANH) - F23-31 (ES) P - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F23-30 (CANL) - F23-31 (ES) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F23-29 (CANH) - F23-22 (B) P - L HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      F23-30 (CANL) - F23-22 (B) W - L LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
  16. BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY

    Refer to Terminals of ECU.

    Refer to TERMINALS OF ECU [10/2018 - ]

    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the A37 brake booster with master cylinder assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      BUS 2 BRANCH LINES

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      A37-30 (CA2H) - A37-29 (CA2L) BE - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      A37-30 (CA2H) - A37-26 (GND1) BE - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A37-29 (CA2L) - A37-26 (GND1) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A37-30 (CA2H) - A37-52 (BS) BE - W HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      A37-29 (CA2L) - A37-52 (BS) W - W LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      BUS 4 BRANCH LINES

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      A37-43 (CA1H) - A37-42 (CA1L) P - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      A37-43 (CA1H) - A37-26 (GND1) P - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A37-42 (CA1L) - A37-26 (GND1) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A37-43 (CA1H) - A37-52 (BS) P - W HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      A37-42 (CA1L) - A37-52 (BS) W - W LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher

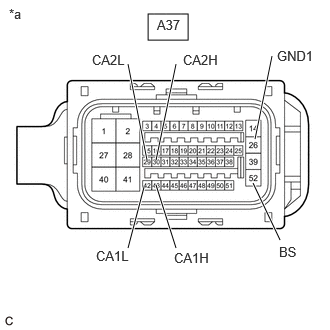

      Fig 15: Brake Booster with Master Cylinder Assembly Terminal Identification
      GTY818585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Brake Booster with Master Cylinder Assembly)
  17. BRAKE ACTUATOR ASSEMBLY

    Refer to Terminals of ECU.

    Refer to TERMINALS OF ECU [10/2018 - 08/2021]

    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the A48 brake actuator assembly connector.
    3. Measure the resistance according to the value(s) in the table below.
      Fig 16: Brake Actuator Assembly Terminal Identification

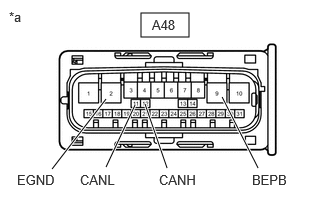

      GTY801215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector (to Brake Actuator Assembly)

      Standard Resistance

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      A48-12 (CANH) - A48-11 (CANL) GR - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      A48-12 (CANH) - A48-2 (EGND) GR - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A48-11 (CANL) - A48-2 (EGND) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A48-12 (CANH) - A48-9 (BEPB) GR - W HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      A48-11 (CANL) - A48-9 (BEPB) W - W LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
  18. POWER STEERING ECU WITH MOTOR ASSEMBLY

    Refer to Terminals of ECU.

    Refer to TERMINALS OF ECU [10/2018 - 07/2022]

    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the F55 and F56 power steering ECU with motor assembly connectors.
    3. Measure the resistance according to the value(s) in the table below.

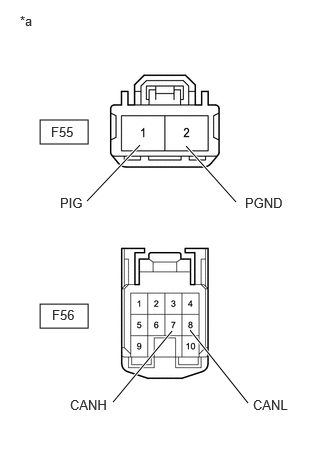

      Fig 17: Power Steering ECU with Motor Assembly Terminal Identification
      GTY818356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Power Steering ECU with Motor Assembly)

      Standard Resistance

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      F56-7 (CANH) - F56-8 (CANL) P - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      F56-7 (CANH) - F55-2 (PGND) P - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F56-8 (CANL) - F55-2 (PGND) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F56-7 (CANH) - F55-1 (PIG) P - W HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      F56-8 (CANL) - F55-1 (PIG) W - W LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
  19. MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

    Refer to Terminals of ECU.

    Refer to TERMINALS OF ECU [10/2018 - 07/2022]

    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the F40 main body ECU (multiplex network body ECU) connector.
    3. Measure the resistance according to the value(s) in the table below.

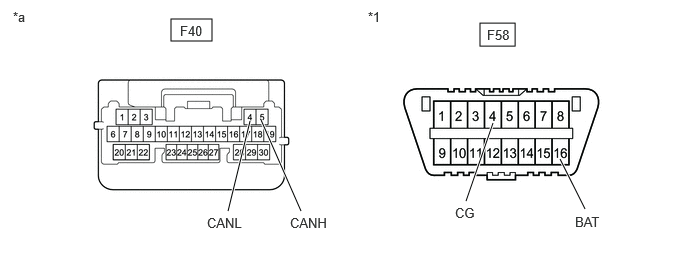

      Fig 18: Main Body ECU (Multiplex Network Body ECU) Terminal Identification
      GTY828722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to Main Body ECU (Multiplex Network Body ECU))      		 - -

      Standard Resistance

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      F40-5 (CANH) - F40-4 (CANL) L - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      F40-5 (CANH) - F58-4 (CG) L - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F40-4 (CANL) - F58-4 (CG) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F40-5 (CANH) - F58-16 (BAT) L - V HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      F40-4 (CANL) - F58-16 (BAT) W - V LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
  20. CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

    Refer to Terminals of ECU.

    Refer to TERMINALS OF ECU [10/2018 - 08/2021]

    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the F44 certification ECU (smart key ECU assembly) connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      F44-1 (CANH) - F44-2 (CANL) B - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      F44-1 (CANH) - F44-18 (E) B - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F44-2 (CANL) - F44-18 (E) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F44-1 (CANH) - F44-4 (+B) B - SB HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      F44-2 (CANL) - F44-4 (+B) W -SB LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      Fig 19: Certification ECU (Smart Key ECU Assembly) Terminal Identification
      GTY801558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Certification ECU (Smart Key ECU Assembly))
  21. AIRBAG ECU ASSEMBLY

    Refer to Terminals of ECU.

    Refer to TERMINALS OF ECU [10/2018 - 07/2022]

    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the F57 airbag ECU assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

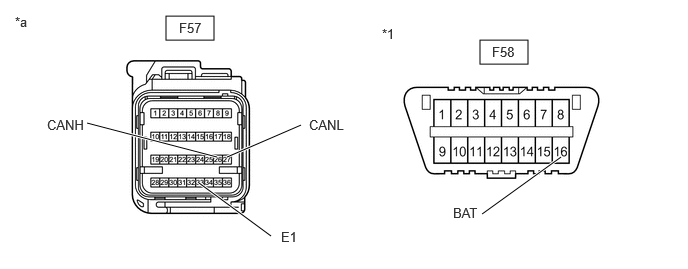

      Fig 20: Airbag ECU Assembly Terminal Identification
      GTY818403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to Airbag ECU Assembly)      		 - -

      Standard Resistance

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      F57-26 (CANH) - F57-27 (CANL) R - G HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 108 to 132 Ω
      F57-26 (CANH) - F57-33 (E1) R - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F57-27 (CANL) - F57-33 (E1) G - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F57-26 (CANH) - F58-16 (BAT) R - V HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      F57-27 (CANL) - F58-16 (BAT) G - V LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
  22. AIR CONDITIONING AMPLIFIER ASSEMBLY

    Refer to Terminals of ECU.

    Refer to TERMINALS OF ECU [10/2018 - 07/2022]

    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the F51 air conditioning amplifier assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      F51-11 (CANH) - F51-12 (CANL) GR - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      F51-11 (CANH) - F51-4 (GND) GR - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F51-12 (CANL) - F51-4 (GND) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F51-11 (CANH) - F51-1 (B) GR - P HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      F51-12 (CANL) - F51-1 (B) W - P LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher

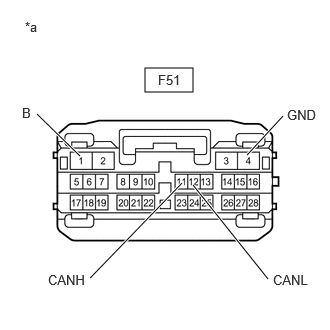

      Fig 21: Air Conditioning Amplifier Assembly Terminal Identification
      GTY800968Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Air Conditioning Amplifier Assembly)
  23. RADIO RECEIVER ASSEMBLY

    Refer to Terminals of ECU.

    Refer to TERMINALS OF ECU [10/2019 - 07/2022]

    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the F2 radio receiver assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

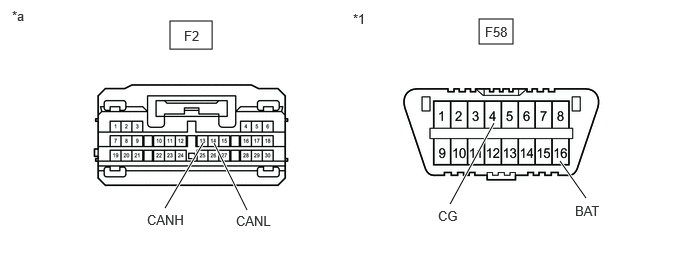

      Fig 22: Radio Receiver Assembly Terminal Identification
      GTY838401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to Radio Receiver Assembly)      		 - -

      Standard Resistance

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      F2-13 (CANH) - F2-14 (CANL) LG - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      F2-13 (CANH) - F58-4 (CG) LG - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F2-14 (CANL) - F58-4 (CG) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F2-13 (CANH) - F58-16 (BAT) LG - V HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      F2-14 (CANL) - F58-16 (BAT) W - V LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
  24. BLIND SPOT MONITOR SENSOR LH (w/ Blind Spot Monitor System)

    Refer to Terminals of ECU.

    Refer to TERMINALS OF ECU [10/2018 - ]

    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the Q4 blind spot monitor sensor LH connector.
    3. Measure the resistance according to the value(s) in the table below.

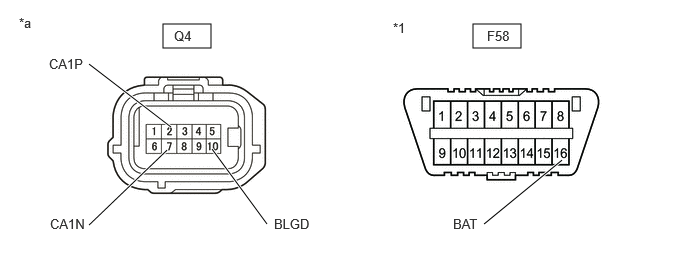

      Fig 23: Blind Spot Monitor Sensor LH (w/ Blind Spot Monitor System) Terminal Identification
      GTY787906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to Blind Spot Monitor Sensor LH)      		 - -

      Standard Resistance

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      Q4-2 (CA1P) - Q4-7 (CA1N) P - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      Q4-2 (CA1P) - Q4-10 (BLGD) P - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      Q4-7 (CA1N) - Q4-10 (BLGD) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      Q4-2 (CA1P) - F58-16 (BAT) P - V HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      Q4-7 (CA1N) - F58-16 (BAT) W - V LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
  25. FORWARD RECOGNITION CAMERA

    Refer to Terminals of ECU.

    Refer to TERMINALS OF ECU [10/2018 - 07/2022]

    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the S4 forward recognition camera connector.
    3. Measure the resistance according to the value(s) in the table below.

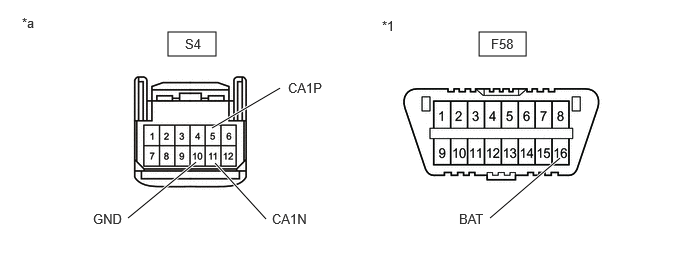

      Fig 24: Forward Recognition Camera Terminal Identification
      GTY834057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to Forward Recognition Camera)      		 - -

      Standard Resistance

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      S4-5 (CA1P) - S4-11 (CA1N) BE - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      S4-5 (CA1P) - S4-10 (GND) BE - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      S4-11 (CA1N) - S4-10 (GND) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      S4-5 (CA1P) - F58-16 (BAT) BE - V HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      S4-11 (CA1N) - F58-16 (BAT) W - V LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
  26. MILLIMETER WAVE RADAR SENSOR ASSEMBLY

    Refer to Terminals of ECU.

    Refer to TERMINALS OF ECU [10/2018 - 07/2022]

    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the B5 millimeter wave radar sensor assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

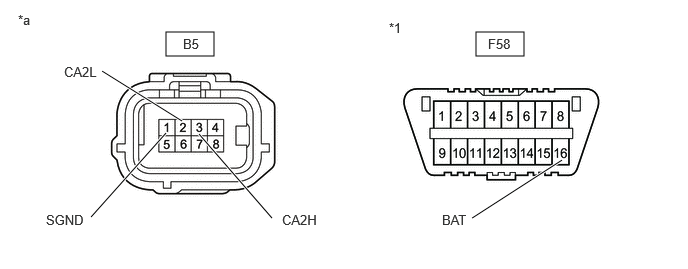

      Fig 25: Millimeter Wave Radar Sensor Assembly Terminal Identification
      GTY812224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to Millimeter Wave Radar Sensor Assembly)      		 - -

      Standard Resistance

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      B5-3 (CA2H) - B5-2 (CA2L) P - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      B5-3 (CA2H) - B5-1 (SGND) P - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      B5-2 (CA2L) - B5-1 (SGND) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      B5-3 (CA2H) - F58-16 (BAT) P - V HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      B5-2 (CA2L) - F58-16 (BAT) W - V LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
  27. DCM (TELEMATICS TRANSCEIVER) (for Lexus Enform)

    Refer to Terminals of ECU.

    Refer to TERMINALS OF ECU [10/2019 - 07/2022]

    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the F126 DCM (telematics transceiver) connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      F126-25 (CANP) - F126-26 (CANN) P - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      F126-25 (CANP) - F126-20 (E) P - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F126-26 (CANN) - F126-20 (E) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F126-25 (CANP) - F126-1 (+B) P - SB HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      F126-26 (CANN) - F126-1 (+B) W - SB LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      Fig 26: DCM (Telematics Transceiver) (For Lexus Enform) Terminal Identification
      GTY968492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to DCM (Telematics Transceiver))
  28. REAR TELEVISION CAMERA ASSEMBLY

    Refer to Terminals of ECU.

    Refer to TERMINALS OF ECU [10/2018 - 07/2022]

    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the V5 rear television camera assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

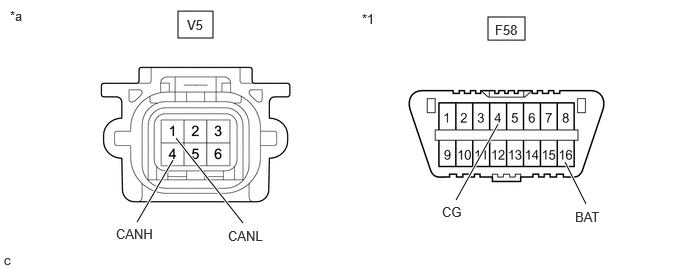

      Fig 27: Rear Television Camera Assembly Terminal Identification
      GTY810342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to Rear Television Camera Assembly)      		 - -

      Standard Resistance

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      V5-4 (CANH) - V5-1 (CANL) GR - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      V5-4 (CANH) - F58-4 (CG) GR - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      V5-1 (CANL) - F58-4 (CG) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      V5-4 (CANH) - F58-16 (BAT) GR - V HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      V5-1 (CANL) - F58-16 (BAT) W - V LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
  29. TIRE PRESSURE ECU AND RECEIVER

    Refer to Terminals of ECU.

    Refer to TERMINALS OF ECU [10/2018 - 08/2021]

    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the N18 tire pressure ECU and receiver connector.
    3. Measure the resistance according to the value(s) in the table below.
      Fig 28: Tire Pressure ECU and Receiver Terminal Identification
      GTY827756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Tire Pressure ECU and Receiver)

      Standard Resistance

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      N18-9 (CANH) - N18-10 (CANL) L - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      N18-9 (CANH) - N18-12 (GND) L - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      N18-10 (CANL) - N18-12 (GND) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      N18-9 (CANH) - N18-7 (+B) L - B HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      N18-10 (CANL) - N18-7 (+B) W - B LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
  30. METER MIRROR SUB-ASSEMBLY (w/ Headup Display)

    Refer to Terminals of ECU.

    Refer to TERMINALS OF ECU [10/2018 - ]

    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the F25 meter mirror sub-assembly connector.
    3. Measure the resistance according to the value(s) in the table below.
      Fig 29: Meter Mirror Sub-assembly (w/ Headup Display) Terminal Identification
      GTY815982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Meter Mirror Sub-assembly)

      Standard Resistance

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      F25-12 (MPX1) - F25-13 (MPX2) B - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      F25-12 (MPX1) - F25-4 (ES) B - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F25-13 (MPX2) - F25-4 (ES) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F25-12 (MPX1) - F25-2 (B) B - GR HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      F25-13 (MPX2) - F25-2 (B) W - GR LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
  31. NO. 1 HEADLIGHT ECU SUB-ASSEMBLY LH (w/ Automatic Headlight Beam Level Control System)

    Refer to Terminals of ECU.

    Refer to TERMINALS OF ECU [10/2018 - 07/2022]

    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the A15 no. 1 headlight ECU sub-assembly LH connector.
    3. Measure the resistance according to the value(s) in the table below.
      Fig 30: No. 1 Headlight ECU Sub-assembly LH (w/ Automatic Headlight Beam Level Control System) Terminal Identification

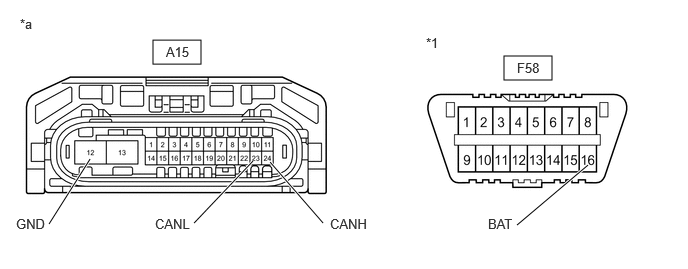

      GTY808148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 1 Headlight ECU Sub-assembly LH)      		 - -

      Standard Resistance

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      A15-24 (CANH) - A15-23 (CANL) G - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      A15-24 (CANH) - A15-12 (GND) G - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A15-23 (CANL) - A15-12 (GND) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A15-24 (CANH) - F58-16 (BAT) G - V HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      A15-23 (CANL) - F58-16 (BAT) W - V LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
  32. NO. 1 HEADLIGHT ECU SUB-ASSEMBLY RH (w/ Automatic Headlight Beam Level Control System)

    Refer to Terminals of ECU.

    Refer to TERMINALS OF ECU [10/2018 - 07/2022]

    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the A16 no. 1 headlight ECU sub-assembly RH connector.
    3. Measure the resistance according to the value(s) in the table below.
      Fig 31: No. 1 Headlight ECU Sub-Assembly RH (w/ Automatic Headlight Beam Level Control System) Terminal Identification
      GTY808144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to No. 1 Headlight ECU Sub-assembly RH)      		 - -

      Standard Resistance

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      A16-24 (CANH) - A16-23 (CANL) B - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      A16-24 (CANH) - A16-12 (GND) B - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A16-23 (CANL) - A16-12 (GND) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      A16-24 (CANH) - F58-16 (BAT) B - V HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      A16-23 (CANL) - F58-16 (BAT) W - V LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
  33. CLEARANCE WARNING ECU ASSEMBLY (w/ Parking Support Alert System)

    Refer to Terminals of ECU.

    Refer to TERMINALS OF ECU [10/2018 - 07/2022]

    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the F62 clearance warning ECU assembly connector.
    3. Measure the resistance according to the value(s) in the table below.
      Fig 32: Clearance Warning ECU Assembly Terminal Identification

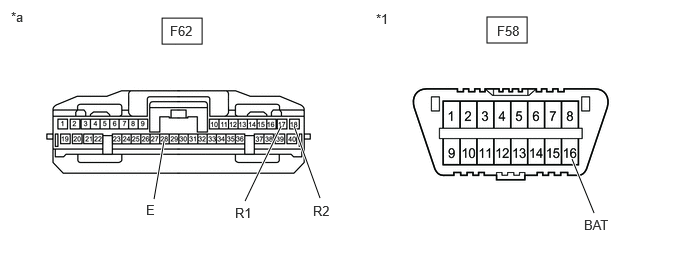

      GTY830509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to Clearance Warning ECU Assembly)      		 - -

      Standard Resistance

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      F62-17 (R1) - F62-18 (R2) G - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      F62-17 (R1) - F62-28 (E) G - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F62-18 (R2) - F62-28 (E) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F62-17 (R1) - F58-16 (BAT) G - V HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      F62-18 (R2) - F58-16 (BAT) W - V LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
  34. MULTIPLEX TILT AND TELESCOPIC ECU (for Power Tilt and Power Telescopic Steering Column)

    Refer to Terminals of ECU.

    Refer to TERMINALS OF ECU [10/2018 - ]

    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the F54 multiplex tilt and telescopic ECU connector.
    3. Measure the resistance according to the value(s) in the table below.
      Fig 33: Multiplex Tilt and Telescopic ECU (For Power Tilt and Power Telescopic Steering Column) Terminal Identification)
      GTY816590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Multiplex Tilt and Telescopic ECU)

      Standard Resistance

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      F54-3 (CANP) - F54-11 (CANN) BE - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      F54-3 (CANP) - F54-1 (GND) BE - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F54-11 (CANN) - F54-1 (GND) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F54-3 (CANP) - F54-2 (+B) BE - B HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      F54-11 (CANN) - F54-2 (+B) W - B LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
  35. POSITION CONTROL ECU ASSEMBLY LH (w/ Seat Position Memory System)

    Refer to Terminals of ECU.

    Refer to TERMINALS OF ECU [10/2018 - 07/2022]

    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the f13 and f15 position control ECU assembly LH connectors.
    3. Measure the resistance according to the value(s) in the table below.

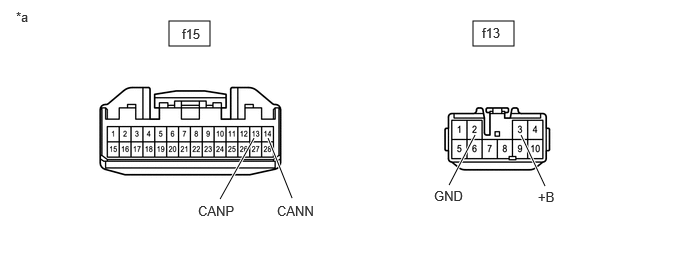

      Fig 34: Position Control ECU Assembly LH (w/ Seat Position Memory System) Terminal Identification
      GTY836899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Position Control ECU Assembly LH)      		 - -

      Standard Resistance

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      f15-13 (CANP) - f15-14 (CANN) LG - R HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      f15-13 (CANP) - f13-2 (GND) LG - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      f15-14 (CANN) - f13-2 (GND) R - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      f15-13 (CANP) - f13-3 (+B) LG - W HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      f15-14 (CANN) - f13-3 (+B) R - W LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
  36. OUTER MIRROR CONTROL ECU ASSEMBLY LH (w/ Seat Position Memory System)

    Refer to Terminals of ECU.

    Refer to TERMINALS OF ECU [10/2018 - ]

    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the K11 outer mirror control ECU assembly LH connector.
    3. Measure the resistance according to the value(s) in the table below.
      Fig 35: Outer Mirror Control ECU Assembly LH (w/ Seat Position Memory System) Terminal Identification
      GTY829356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Outer Mirror Control ECU Assembly LH)

      Standard Resistance

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      K11-9 (CANP) - K11-8 (CANN) P - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      K11-9 (CANP) - K11-7 (GND) P - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      K11-8 (CANN) - K11-7 (GND) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      K11-9 (CANP) - K11-6 (CPUB) P - LA-G HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      K11-8 (CANN) - K11-6 (CPUB) W - LA-G LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
  37. OUTER MIRROR CONTROL ECU ASSEMBLY RH (w/ Seat Position Memory System)

    Refer to Terminals of ECU.

    Refer to TERMINALS OF ECU [10/2018 - ]

    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the J11 outer mirror control ECU assembly RH connector.
    3. Measure the resistance according to the value(s) in the table below.
      Fig 36: Outer Mirror Control ECU Assembly RH (w/ Seat Position Memory System) Terminal Identification
      GTY784611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Outer Mirror Control ECU Assembly RH)

      Standard Resistance

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      J11-9 (CANP) - J11-8 (CANN) P - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      J11-9 (CANP) - J11-7 (GND) P - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      J11-8 (CANN) - J11-7 (GND) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      J11-9 (CANP) - J11-6 (CPUB) P - LA-G HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      J11-8 (CANN) - J11-6 (CPUB) W - LA-G LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
  38. MULTIPLEX NETWORK DOOR ECU (w/ Power Back Door)

    Refer to Terminals of ECU.

    Refer to REMOVAL [10/2018 - 07/2022]

    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the V1 multiplex network door ECU connector.
    3. Measure the resistance according to the value(s) in the table below.
      Fig 37: Multiplex Network Door ECU (w/ Power Back Door) Terminal Identification

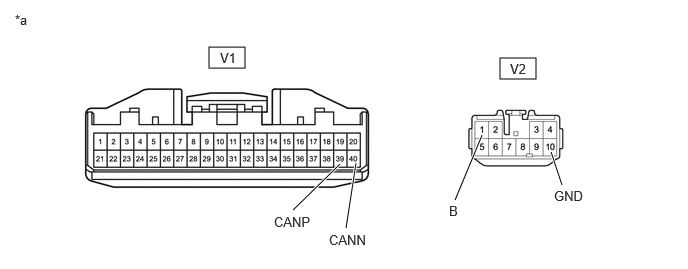

      GTY781836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Multiplex Network Door ECU)      		 - -

      Standard Resistance

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      V1-39 (CANP) - V1-40 (CANN) B - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      V1-39 (CANP) - V2-10 (GND) B - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      V1-40 (CANN) - V2-10 (GND) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      V1-39 (CANP) - V2-1 (B) B - B HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      V1-40 (CANN) - V2-1 (B) W - B LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
  39. STEREO COMPONENT EQUALIZER ASSEMBLY (w/ ASC System)

    Refer to Terminals of ECU.

    Refer to TERMINALS OF ECU [10/2018 - ]

    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the F16 stereo component equalizer assembly connector.
    3. Measure the resistance according to the value(s) in the table below.
      Fig 38: Stereo Component Equalizer Assembly (w/ ASC System) Terminal Identification
      GTY810943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Stereo Component Equalizer Assembly)

      Standard Resistance

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      F16-4 (CANH) - F16-12 (CANL) SB - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      F16-4 (CANH) - F16-1 (GND) SB - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F16-12 (CANL) - F16-1 (GND) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F16-4 (CANH) - F16-3 (+B) SB - P HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      F16-12 (CANL) - F16-3 (+B) W - P LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
  40. OCCUPANT DETECTION ECU

    Refer to Terminals of ECU.

    Refer to TERMINALS OF ECU [10/2018 - ]

    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the e17 occupant detection ECU connector.
    3. Measure the resistance according to the value(s) in the table below.
      Fig 39: Occupant Detection ECU Terminal Identification

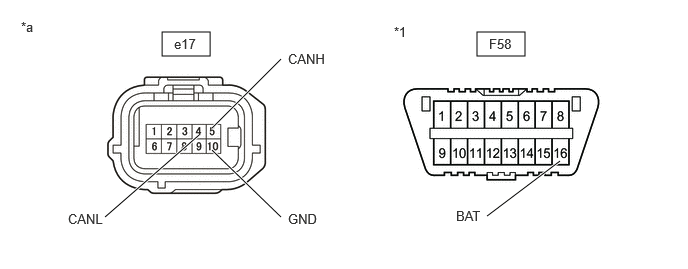

      GTY818753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to Occupant Detection ECU)      		 - -

      Standard Resistance

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      e17-5 (CANH) - e17-4 (CANL) R - SB HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      e17-5 (CANH) - e17-10 (GND) R - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      e17-4 (CANL) - e17-10 (GND) SB - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      e17-5 (CANH) - F58-16 (BAT) R - V HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      e17-4 (CANL) - F58-16 (BAT) SB - V LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
  41. HYBRID VEHICLE CONTROL ECU

    Refer to Terminals of ECU.

    Refer to TERMINALS OF ECU [10/2018 - ]

    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the F59 and F60 hybrid vehicle control ECU connectors.
    3. Measure the resistance according to the value(s) in the table below.
      Fig 40: Hybrid Vehicle Control ECU Terminal Identification

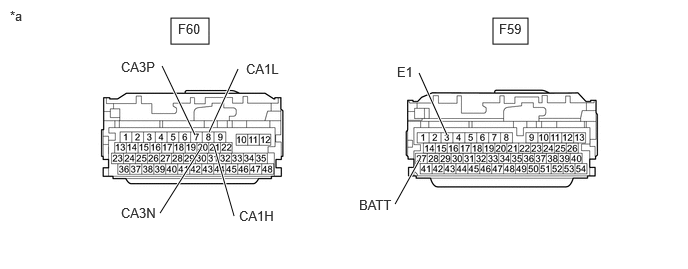

      GTY826571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Hybrid Vehicle Control ECU)      		 - -

      Standard Resistance

      BUS 2 BRANCH LINES

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      F60-21 (CA1H) - F60-8 (CA1L) L - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      F60-21 (CA1H) - F59-3 (E1) L - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F60-8 (CA1L) - F59-3 (E1) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F60-21 (CA1H) - F59-27 (BATT) L - L HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      F60-8 (CA1L) - F59-27 (BATT) W - L LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      BUS 4 BRANCH LINES

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      F60-7 (CA3P) - F60-20 (CA3N) G - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      F60-7 (CA3P) - F59-3 (E1) G - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F60-20 (CA3N) - F59-3 (E1) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      F60-7 (CA3P) - F59-27 (BATT) G - L HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      F60-20 (CA3N) - F59-27 (BATT) W - L LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
  42. INVERTER WITH CONVERTER ASSEMBLY

    Refer to Terminals of ECU.

    Refer to TERMINALS OF ECU [10/2018 - ]

    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the C41 inverter with converter assembly connector.
    3. Measure the resistance according to the value(s) in the table below.
      Fig 41: Inverter With Converter Assembly Terminal Identification

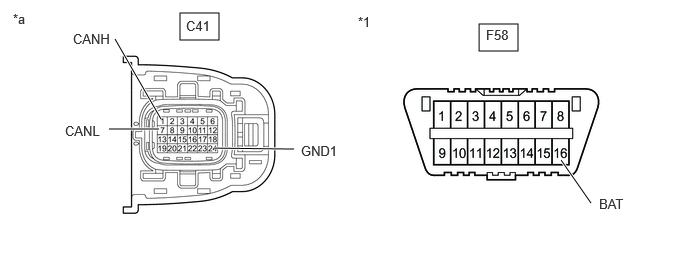

      GTY779369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to Inverter with Converter Assembly)      		 - -

      Standard Resistance

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      C41-1 (CANH) - C41-7 (CANL) B - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      C41-1 (CANH) - C41-24 (GND1) B - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      C41-7 (CANL) - C41-24 (GND1) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      C41-1 (CANH) - F58-16 (BAT) B - V HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      C41-7 (CANL) - F58-16 (BAT) W - V LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
  43. REAR HYBRID MOTOR CONTROL INVERTER ASSEMBLY (for AWD)

    Refer to Terminals of ECU.

    Refer to TERMINALS OF ECU [10/2018 - ]

    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the N56 rear hybrid motor control inverter assembly connector.
    3. Measure the resistance according to the value(s) in the table below.
      Fig 42: Rear Hybrid Motor Control Inverter Assembly (For AWD) Terminal Identification

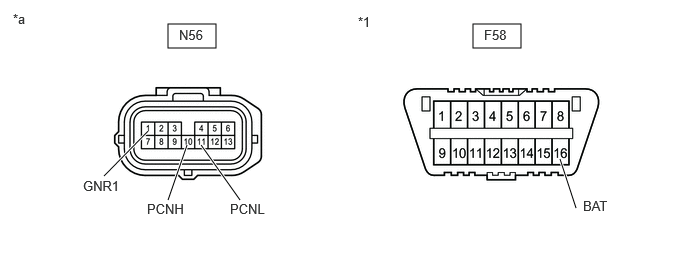

      GTY821708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to Rear Hybrid Motor Control Inverter Assembly)      		 - -

      Standard Resistance

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      N56-10 (PCNH) - N56-11 (PCNL) G - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      N56-10 (PCNH) - N56-1 (GNR1) G - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      N56-11 (PCNL) - N56-1 (GNR1) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      N56-10 (PCNH) - F58-16 (BAT) G - V HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      N56-11 (PCNL) - F58-16 (BAT) W - V LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
  44. VEHICLE APPROACHING SPEAKER CONTROLLER

    Refer to Terminals of ECU.

    Refer to TERMINALS OF ECU [10/2019 - 08/2021]

    1. Disconnect the cable from the negative (-) auxiliary battery terminal.
    2. Disconnect the N115 vehicle approaching speaker controller connector.
    3. Measure the resistance according to the value(s) in the table below.
      Fig 43: Vehicle Approaching Speaker Controller Terminal Identification

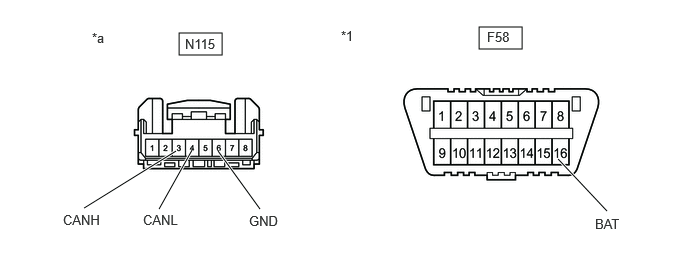

      GTY968485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 DLC3 - -
      *a Front view of wire harness connector
      (to Vehicle Approaching Speaker Controller)      		 - -

      Standard Resistance

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      N115-3 (CANH) - N115-4 (CANL) Y - W HIGH-level CAN bus line - LOW-level CAN bus line Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω
      N115-3 (CANH) - N115-6 (GND) Y - W-B HIGH-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      N115-4 (CANL) - N115-6 (GND) W - W-B LOW-level CAN bus line - Ground Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher
      N115-3 (CANH) - F58-16 (BAT) Y - V HIGH-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
      N115-4 (CANL) - F58-16 (BAT) W - V LOW-level CAN bus line - Auxiliary battery positive (+) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher
scientia non olet · About LEMON Manuals
