Removal [10/2018 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.
  1. SECURE VEHICLE
    1. Fully apply the parking brake and chock a wheel.
      WARNING:
      • Make sure to apply the parking brake and chock a wheel before performing this procedure.
      • If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.
      GTY655852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 6 [10/2018 - 07/2022] , or refer to PROCEDURE - Step 5 [07/2022 - ]

  3. REMOVE FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)

    Refer to REMOVAL [10/2018 - ]

  4. REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR
    WARNING:

    To prevent burns, do not touch the engine, exhaust manifold or other high temperature components while the engine is hot.

    1. Remove 3 nuts and front No. 1 floor heat insulator from the vehicle body.
      GTY814290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE REAR CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [10/2018 - 07/2022] , or refer to REMOVAL [07/2022 - ]

  6. REMOVE NO. 2 CONSOLE BOX DUCT

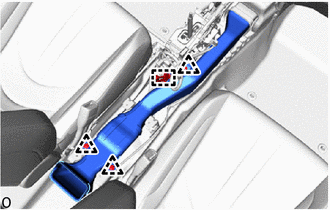

    1. Disengage the clamp to separate the wire harness.
      GTY798592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 clips and No. 2 console box duct from the vehicle body.
  7. REMOVE NO. 1 CONSOLE BOX DUCT
    1. Remove the clip and No. 1 console box duct from the vehicle body.
      GTY777085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Move the shift lever to N.
    2. Disconnect the transmission control cable assembly from the transmission floor shift assembly.
      GTY798579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Rotate the lock nut counterclockwise approximately 180° and, while holding the lock nut in that position, disconnect the transmission control cable assembly from the transmission floor shift assembly.
      GTY823934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Lock Nut
      *a Counterclockwise
    4. Remove the nut to disconnect the transmission control cable assembly from the control shaft lever.
      GTY798566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the clip to disconnect the transmission control cable assembly from the No. 1 transmission control cable bracket.
    6. Disengage the clamp to separate the transmission control cable assembly.
      GTY814286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

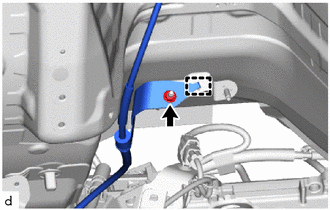

    7. Remove the bolt to disconnect the transmission control cable assembly from the hybrid inverter protector assembly.
    8. Remove the nut.
      GTY747456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Disengage the guide to disconnect the transmission control cable assembly from the vehicle body.
    10. Remove the 2 nuts and transmission control cable assembly from the vehicle body.
      GTY798575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
