Removal [10/2018 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.
  1. SECURE VEHICLE
    1. Fully apply the parking brake and chock a wheel.
      WARNING:
      • Make sure to apply the parking brake and chock a wheel before performing this procedure.
      • If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.
      GTY655852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 6 [10/2018 - 07/2022] , or refer to PROCEDURE - Step 5 [07/2022 - ]

  3. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Move the shift lever to N.
    2. Remove the nut and disconnect the transmission control cable assembly from the control shaft lever.
      GTY798911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the clip and disconnect the transmission control cable assembly from the No. 1 transmission control cable bracket.
  4. REMOVE SHIFT LEVER POSITION SENSOR
    1. Disconnect the shift lever position sensor connector.
      GTY832469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the nut, washer and control shaft lever from the shift lever position sensor.
      GTY798901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

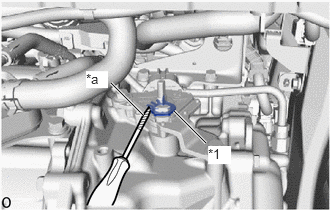

    3. Using a screwdriver with its tip wrapped with protective tape, pry out the tabs of the lock plate.
      GTY792791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Lock Plate
      *a Protective Tape
    4. Remove the lock nut and lock plate from the shift lever position sensor.
      GTY830325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Lock Nut
      *2 Lock Plate
    5. Remove the 2 bolts and shift lever position sensor from the hybrid vehicle transaxle assembly.
      GTY798903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
