Removal [07/2022 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE MULTI-DISPLAY

    Refer to REMOVAL [07/2022 - ]

  2. REMOVE NO. 2 INSTRUMENT PANEL HOLE COVER

    Refer to PROCEDURE - Step 22

  3. REMOVE COMBINATION SWITCH ASSEMBLY (SATELLITE SWITCH SET)

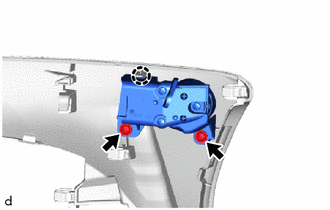

    1. Remove the 2 screws.
      GTY1128262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the claw to remove the combination switch assembly (satellite switch set).
