Removal [07/2022 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Refer to PRECAUTION [07/2022 - ]

  2. REMOVE SERVICE PLUG GRIP

    Refer to REMOVAL [07/2022 - ]

  3. DISCONNECT ENGINE WIRE

    See step  3

  4. REMOVE CONNECTOR COVER ASSEMBLY

    Refer to PROCEDURE - Step 12

  5. CHECK TERMINAL VOLTAGE

    Refer to PROCEDURE - Step 13

  6. INSTALL CONNECTOR COVER ASSEMBLY

    See step  6

  7. CONNECT ENGINE WIRE

    See step  29

  8. REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY

    Refer to PROCEDURE - Step 5

  9. REMOVE REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 8

  10. REMOVE REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 26

  11. REMOVE REAR UNDER SIDE COVER LH

    Refer to PROCEDURE - Step 28

  12. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 27

  13. REMOVE REAR UNDER SIDE COVER RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 29

  14. REMOVE REAR UNDER COVER

    See step  14

  15. REMOVE REAR SEAT CUSHION LEG SUB-ASSEMBLY

    See step  15

  16. REMOVE BATTERY COOLING BLOWER ASSEMBLY

    See step  9

  17. REMOVE NO. 1 HV BATTERY COVER PANEL RH

    See step  17

  18. DISCONNECT FLOOR UNDER WIRE

    See step  18

  19. DISCONNECT FLOOR WIRE

    See step  19

  20. REMOVE NO. 1 HV BATTERY PROTECTOR

    See step  20

  21. DISCONNECT FLOOR WIRE

    See step  21

  22. REMOVE UPPER HV BATTERY COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 22

  23. REMOVE NO. 1 HV BATTERY SHIELD PANEL

    Refer to PROCEDURE - Step 23

  24. REMOVE HYBRID BATTERY TERMINAL BLOCK
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

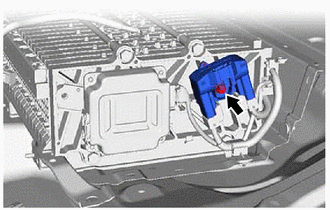

    1. Remove the bolt.
      GTY563774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

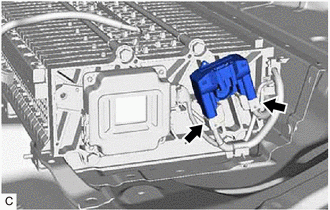

    2. Disconnect the 2 hybrid battery terminal block connectors to remove the hybrid battery terminal block from the HV battery.
      GTY552015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Insulate the disconnected high-voltage connectors with insulating tape.
